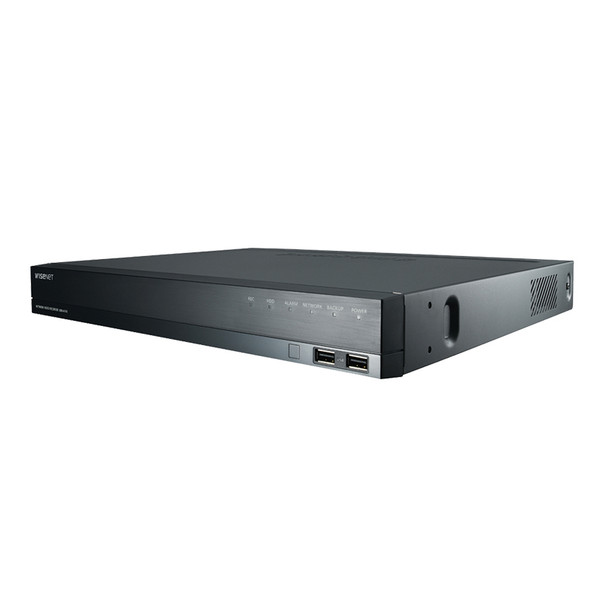

Samsung Hanwha XRN-820S-6TB 8 Channel 4K 100Mbps Network Video Recorder with Built-in PoE+ ports, 6TB Storage

Part Number: XRN-820S-6TB
Write a Review
  • Samsung Hanwha XRN-820S-6TB 8 Channel 4K 100Mbps Network Video Recorder with Built-in PoE+ ports, 6TB Storage
  • Samsung Hanwha XRN-820S-6TB 8 Channel 4K 100Mbps Network Video Recorder with Built-in PoE+ ports, 6TB Storage
  • Samsung Hanwha XRN-820S-6TB 8 Channel 4K 100Mbps Network Video Recorder with Built-in PoE+ ports, 6TB Storage
$1,369.80
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Pre-Installed Storage : 6 TB
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 32MP
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 12 TB Storage Capacity
  • Color : Black
  • Material : Metal
  • Environmental : Indoor
  • Number of PoE Ports : 8 PoE Ports
  • Power Budget : 100 Watt

Description

Samsung Hanwha XRN-820S-6TB 8 Channel 4K 100Mbps Network Video Recorder with Built-in PoE+ ports, 6TB Storage

Key Features:

  • Up to 8 channels, Supports up to 32 megapixel camera resolution
  • 100Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor HDMI/VGA video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 2 internal HDDs (12TB)
  • ARB & failover (N+1), dynamic event, Wisenet AI metadata search support

Additional Information

4K Support:
4K Supported
Alarm Input:
4 Channel
Alarm Output:
2 Channel
Audio Capability:
Two-Way Audio
Audio Compression:
G.711 G.726 AAC
Audio Output:
1x 3.5mm
Capacity for each disk:
Up to 6TB
Certifications:
UL Listed
Channel Capacity:
8 Channels
Color:
Black
Compatible Integration (API):
ONVIF SUNAPI SDK CGI Conformant
Compression:
H.265 H.264 MJPEG
Connection Type:
Wired
Dimensions:
370 x 50.7 x 324.3 mm (14.57 x 2 x 12.77 in)
Environmental:
Indoor
Hard Drive Ports:
2 SATA Ports
LED Indicator:
Languages:
English Spanish
Material:
Metal
Max Power Consumption:
160 Watts
Max. Incoming Bandwidth:
100 Mbps
Max. Recording Resolution:
32MP
Max. Storage Capacity:
12 TB
Mobile Apps:
Wisenet Mobile
NDAA Compliance:
NDAA Compliant
Network Interface:
8x RJ-45 10/100 Mbps 2x RJ-45 1000 Mbps Port
Number of PoE Ports:
8 PoE Ports
Operating Humidity:
20% to 85% RH
Operating System:
Embedded LINUX
Operating Temperature:
0 °C to 40 °C (32 °F to 104 °F)
Outgoing Bandwidth:
100 Mbps
PoE Standards:
IEEE 802.3at
Power Budget:
100 Watt
Power Supply:
100 to 240 V AC
Power for each port:
30W
Pre-Installed Storage:
6 TB
Product Series:
Samsung Hanwha Wisenet X Series
Recorder Technology:
Network Video Recorder (NVR)
Remote Users:
Up to 32
Special Recorder Features:
Fisheye Dewarp
Synchronous Playback:
32 Channel
USB Interface:
2x USB 2.0 1x USB 3.0
Video Output:
1x HDMI 1x VGA
Warranty:
3-year Manufacturer Warranty
Web Browser:
Chrome Edge Safari Firefox
