Description

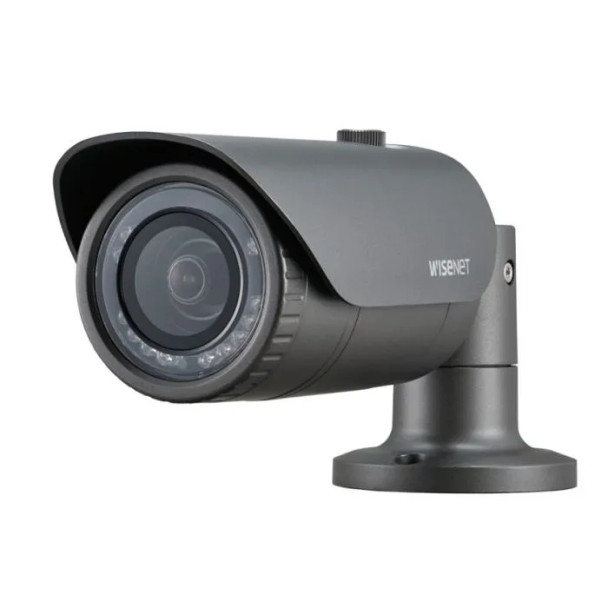

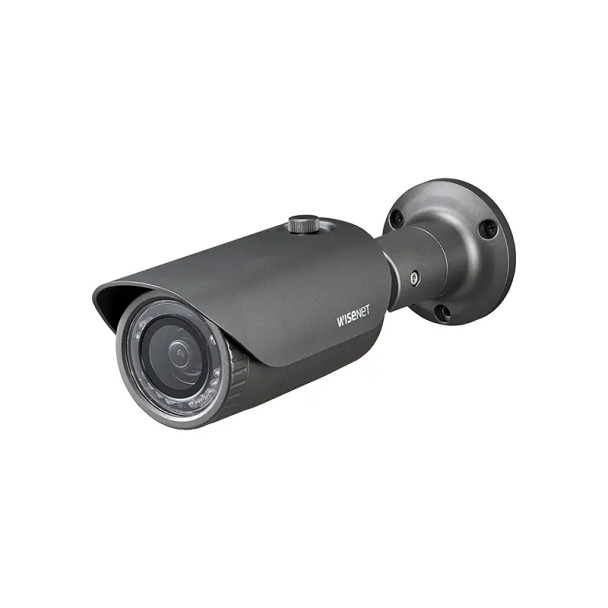

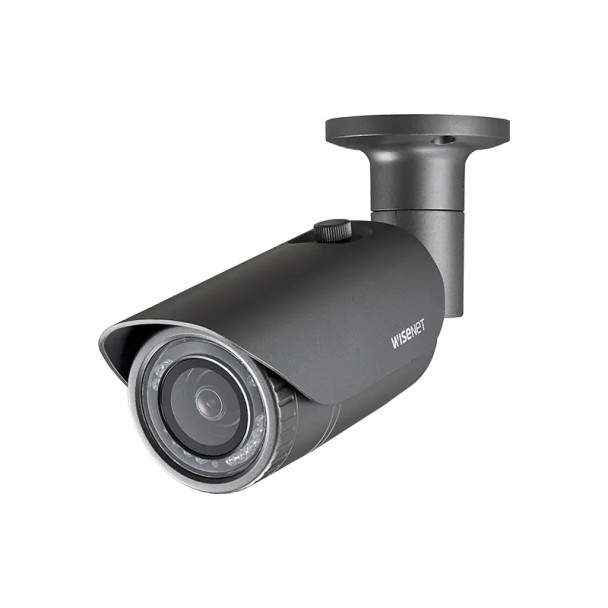

Samsung HCO-7010RA 4MP IR Outdoor QHD Bullet CCTV Analog Security Camera
Key Features
- QHD (2560 x 1440, 30fps) resolution
- 0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on)
- Built-in 2.8mm fixed lens
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 20m
- Transmission distance max.500m
- Easy installation (Plug & play), IP66, IK10
Replacement of:
HCO-7010R
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-HCO-7010RA-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.8
|
|
Camera Style:
|
Bullet
|
|
Color:
|
Dark Gray
|
|
Compliance:
|
NDAA Compliant
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
70.0 x 246.0 mm (2.76 x 9.69 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
107.48
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 4MP
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.26 Lux
|
|
Night Vision Range (ft):
|
65
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
|
|
Power Supply:
|
12 VDC
|
|
Product Series:
|
Samsung Hanwha WiseNet HD+ Series
|
|
Protection Code:
|
IP66
IK10
|
|
Resolution:
|
4MP
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/12000s
|
|
Storage Humidity:
|
0% to 90% RH
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
