Description

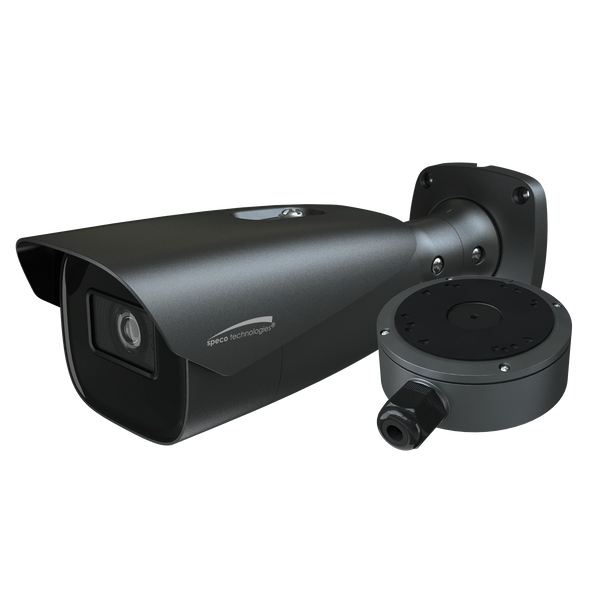

Speco O4iB1M 4MP Outdoor Bullet IP Security Camera with Advanced Analytics, 2.8~12mm Motorized Lens
Key Features:
- Intensifier® Technology captures in full color in extreme low-light scenes
- Captures up to 4MP @ 30fps real time
- True WDR operation
- Micro SD card slot (card not included)
- Conformant with ONVIF Profile G,S,T
- IP67 Weather Resistance
- Built-in standard PoE (IEEE 802.3af)
- Line crossing with counting/Intrusion detection*
- Face/Person/Vehicle detection*
- NDAA Compliant**
- Junction box included (works with NPT/BSP specifications)
- 5 year warranty
*with compatible Speco Blue recorder
** Compliant with NDAA Section 889 Part B Guidelines
Downloads
Datasheet
Speco-O4iB1M-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
Intrusion Detection
Line Crossing
Vehicle Detection
|
|
Aperture:
|
F1.3
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711a
G.711u
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
UL Listed
|
|
Color:
|
Dark Gray
|
|
Compatible Integration (API):
|
ONVIF Profile T
ONVIF Profile G
ONVIF Profile S
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Day (Color)
|
|
Dimensions:
|
278.1 x 99.8 x 88.6 mm (10.95 x 3.93 x 3.49 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
110
48
|
|
Image Enhancements:
|
Ultra Low Light
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
4.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1440
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (Color):
|
0.001 Lux
|
|
Mobile Apps:
|
SecureGuard Client
Speco Blue
iOS
Android
|
|
Mounting:
|
Wall Mount
Ceiling Mount
Corner Mount
Pole Mount
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Speco Blue Series
|
|
Protection Code:
|
IP67
|
|
Remote Users:
|
Up to 10
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
Speco Intensifier
|
|
Specialized Camera Feature:
|
Extreme Weather Temperatures
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
