Description

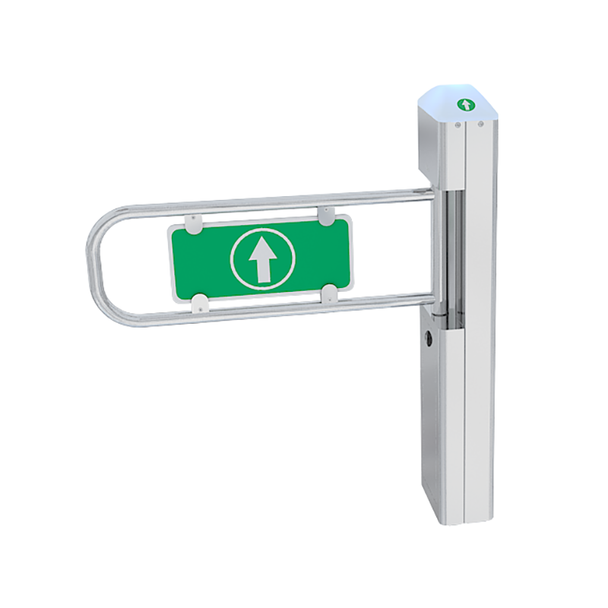

Motorized One-Directional Swing Gate Turnstile
Motorized One Direction Swing Gates are provides an alternative to regulate pedestrian traffic. Thanks to its compact design and 90 cm arm length which is compatible with international wheelchair standards, SWG-15 is an ideal solution to provide controlled passage for VIP and physically handicapped people.
Swing Gates are applicable in shopping malls, supermarkets, fitness/wellness centers with its aesthetic and user friendly design.
Downloads
Specifications
Material
Main Body: 304 - Stainless Steel ( Ops. 316 )
Arm: Aluminum
Standard
Dimensions
15 x 25 x 115 cm ( W x L x H )
Rotor Systems
With rotating control; arms are positioned at 90 degrees.
Rotation Control
The main movement mechanism is provided by 24V DC Motor.
Energy / Operating Voltage
110 / 220 - 240V AC 50/60 Hz (+/- %10) - 24V DC
Control Systems
All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs.
Speed Control
Motor start and stop control is maintained by PWM microprocessor control sysyem
Flow Rate
30 Passage / Minutes / Normally Standard
Operating Temperature
-20° C / + 50° C
Operation
Unidirectional
IP Rating
IP 54
Have questions?
Call Our Experts
866-441-2288
Swing Gate Turnstile Accessories
If you have special needs you can customize your entrance solution by these optional accessories. Please contact our experts, describe your needs and get more information.
Remote Control
1 Unit, working with 23V type 12V battery. 433.920MHz working frequency.
Separator
Spacebar of the central portion, optionally, glass, plexiglass, to close with dekota types of material properties are available. Ability to shorten optional intermediate pipes.
Floor Mounting Plate
Ease of modular installation with anti-skid bottom platform.
Ease of installation in difficult ground conditions.
Front and rear ramp system for easy access.
Button Control Unit
Provides remote control in security huts, security rooms. “Entry - Exit - Emergency” modes. BT-1 and BT-2 type options.
Pass / Stop Available Signals
“Pass”, “Stop” signs optionally made to the middle plate within the arm.
Disabled / Emergency Available Signals
“Disabled”, “Emergency” signs optionally made to the middle plate within the arm.
Specifications
Control/Operating Voltage | 115-240 V AC / 24V DC |
Frequency | 50-60 Hz |
Normal Current | 250 mA |
Max Current | 850 mA |
Power Consumption | 40 W |
Main Body | 1.5 mm 304 Grade Stainless Stell |
Passing Block | 90' degreec arm; Optionally "Stop","Pass",and "Disabled" signs can be added on the plexiglas inside the arm |
Passing Direction Control | Free bi-direcitonal entry-exit control |
Konumu Algılama | Endüktif sensör ile duruş pozisyonu algılama |
Motion Control | Main movement mechanism is provided by a 24v motor |
Installation | Simple -easy installation with a special pedetal |
Indıcators | there are two seperate warning indicators at the front and rear sides of the turnstile.(Green Arrow indicates "Passage Open "and Red Arrow indicates "Passage closed") |
Dimensions | W : 15 cm L :25 cm H:105 cm Arm Lenght:90 cm |
Package Dimensions | W:25 cm L :33 cm H:120 cm |
Package Weight | 24 Kg |
Accessories | Buton Unit,Remote Control, |
Additional Information
Access Control Type: |
Turnstile
|
Turnstile Type: |
Swing Gate
|
Optional RS-232 Control: |
|
Dimensions: |
15 x 25 x 115 cm ( W x L x H )
|
Arm / Wing Length: |
850 mm
|
Direction: |
One Direction
|
Flow Rate: |
30 Passage / Minutes
|
Protection Code: |
IP54
|
