Vivotek AP-FXC-0260 2-Port Outdoor FE PoE Extender

Brand:
Part Number: AP-FXC-0260
Write a Review
  • Vivotek AP-FXC-0260 2-Port Outdoor FE PoE Extender
  • Vivotek AP-FXC-0260 2-Port Outdoor FE PoE Extender
  • Vivotek AP-FXC-0260 2-Port Outdoor FE PoE Extender
$220.00
$165.00
OR
Technical Support Technical Support
  • Protection Code : IP67 IK10
  • Color : White
  • Environmental : Outdoor

Description

Vivotek AP-FXC-0260 2-Port Outdoor FE PoE Extender

Key Features:

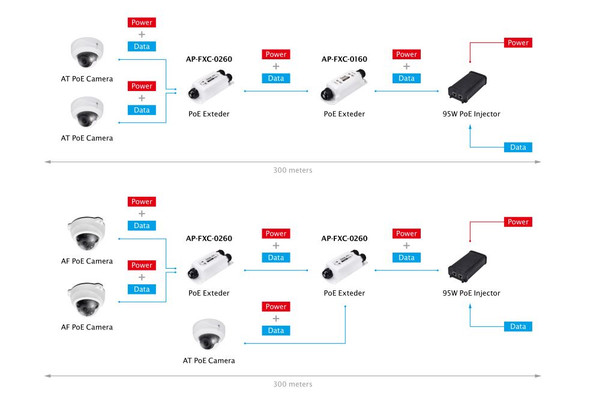

  • Extension Distance: 2 Units, Daisy-chain Installation up to 300M Extension (No Local Power Required)
  • PoE Input Power: 95W/60W/30W PoE
  • PoE Output Power: 48~55VDC, Max. 70W
  • PD Power Pin Assignment: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
  • PSE Power Pin Assignment: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
  • PD Fast Ethernet (RJ45): 1
  • PSE Fast Ethernet (RJ45): 2
  • PSE Power On/Off Dip Switch: Supported
  • Surge Protection/Each PoE Port: 6KV
  • Weatherproof IP67
  • Vandal Proof IK10
  • Total Fast Ethernet Port: 3
  • Mac Table: 2K
  • Bandwidth: Max. 100 Mbps
  • Switching Capacity: 1 Gbps
  • Auto-MDI/MDI-X, Auto-Negotiation: Supported

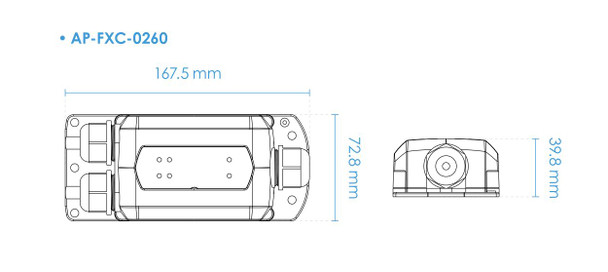

  • Dimensions (W x H x D): 157.3 x 72.8 x 39.8 mm
  • Weight: 0.36 kg
  • LED Indicators: Power, LAN, PoE
  • Operating Temperature: -40 °C to 75 °C (-40 °F to 167 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 10 ~ 90% (non-condensing)
  • EMC: CE, FCC, VCCI, C-Tick
  • Safety: EN60950-1, IEC60950-1
View AllClose

Additional Information

Accessory Type:
PoE Extender
Certifications:
FCC CE VCCI C-Tick
Color:
White
Environmental:
Outdoor
LED Indicator:
NDAA Compliant:
Operating Humidity:
10% to 90%
Operating Temperature:
-40 °C to 75 °C (-40 °F to 167 °F)
Protection Code:
IP67 IK10
Range:
984 ft
Storage Temperature:
-40 °C to 85 °C (-40 °F to 185 °F)
Surge Protection:
6 kV
View AllClose
