Description
Vivotek CC9380-HV 5MP H.265 Anti-Ligature Outdoor Fisheye IP Security Camera with Built-in Microphone
VIVOTEK’s CC9380-HV is an update on the widely popular CC8370-HV, now available in 5MP with H.265 compression.
The CC9380-HV is a true day/night camera, with a removable IR-cut filter. Through the use of a single fisheye lens set to a 180° panoramic view, the seemless image provides a very large vertical field of view. This allows for amazing close range surveillance coverage in a low profile design.
To meet the demands of any harsh outdoor application, the CC9380-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10- rated housing provides robust protection against acts of vandalism. In addition the CC9380-HV continues the trend of its predecessor CC8370-HV and has an anti-ligature housing, to reduce chances of suicide and/or self inflicted harm.
Key Features:
- 5-Megapixel CMOS Sensor
- 20 fps at 2560x1920 (WDR On), 30 fps at 2560x1920 (WDR Off)

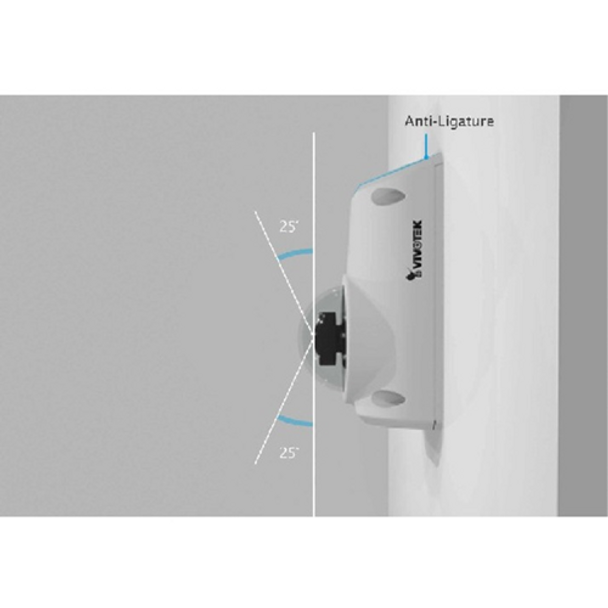

- Anti-Ligature Design
- 180° Horizontal Panoramic View
- WDR Pro (120dB) to Provide Extreme Visibility in High Light Contrast Scenes
- SNV (Supreme Night Visibility)
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- +-25° Tilt Lens
- Built-in Microphone
- 3D Noise Reduction for Low-light Conditions
- Trend Micro IoT Security
Downloads
Additional Information
|
Angle of View:
|
180 Degree
|
|
Aperture:
|
F2.2
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Fisheye
|
|
Certifications:
|
FCC
CE
VCCI
CB
BIS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
|
|
Digital Zoom:
|
48
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
Iris:
|
Fixed Iris
|
|
LED Indicator:
|
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
1.45mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2560 x 1920
|
|
Minimum Illumination (B/W):
|
0.01 Lux at F2.2
|
|
Minimum Illumination (Color):
|
0.11 Lux at F2.2
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Noise Reduction:
|
3D DNR
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek C (Competitive) Series
|
|
Protection Code:
|
IP66
IK10
|
|
RAM:
|
512MB
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
62 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/32000s
|
|
Special Technologies:
|
Trend Micro IoT Security
Vivotek Smart Stream III
Vivotek VIVOCloud
Vivotek SNV (Supreme Night Visibility)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Chrome 58.0 or above
Internet Explorer 10 or above
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
