Description

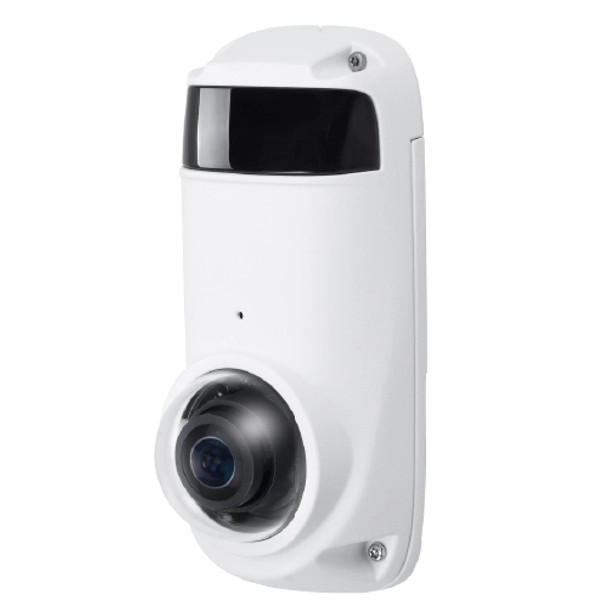

Vivotek CC9391-HV 8MP Outdoor Compact Panaromic IP Security Camera
Meet the Compact CC9391-HV Panoramic Camera: Small but mighty, it delivers a 180-degree view with near-field imaging, eliminates any blind spots. Included accessories offer both outdoor protection and increased flexibility, allowing you to tilt and adjust the camera angle. Equipped with Smart VCA and vision object analytics, this camera elevates your security with AI intelligence, empowering you to see everything, from every angle.
Key Features:
- 8-Megapixel CMOS Sensor
- 30 fps @ 3840x2160 (WDR On)
- Anti-Ligature Design
- 180° Horizontal Panoramic View
- 180° IR Illuminators up to 20 Meters
- WDR Pro (120 dB) to Provide Extreme Visibility in High Light Contrast Scenes
- SNV (Supreme Night Visibility)
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- ±20° Tilt Lens
- Built-in Microphone
- 3D Noise Reduction for Low-light Conditions
- H.265 Compression
- Smart Stream III
Downloads
Datasheet
Vivotek-CC9391-HV-Datasheet-A1
Additional Information
|
Aperture:
|
F2.4
|
|
Camera Style:
|
Mini
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
|
|
Dimensions:
|
160 x 72 x 60 mm
|
|
Durability:
|
Dust Resistant
Vandal Resistant
Water Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.53mm
|
|
Lens Type:
|
Fixed Lens
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP66
IK10
|
|
RAM:
|
2GB
|
|
Resolution:
|
8MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
