Description

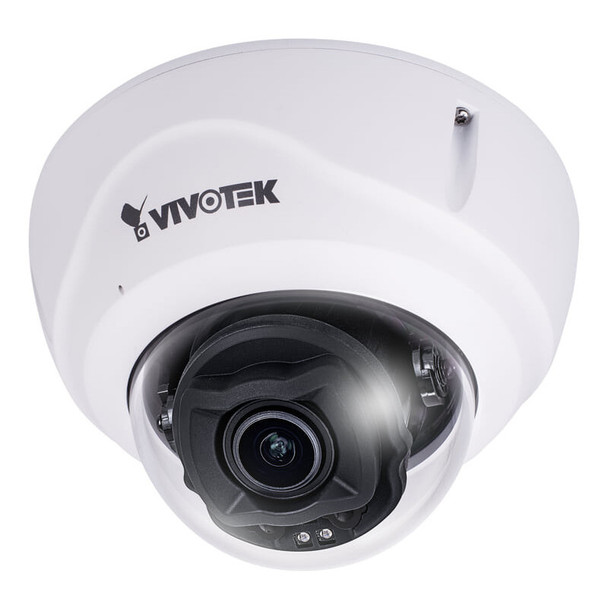

Vivotek FD9387-HTV-A 5MP H.265 IR Outdoor Dome IP Security Camera with Motorized Lens
Key Features:
- 30 fps @ 2560x1920, 60 fps @ 1920x1080
- H.265 Compression Technology
- Smart Stream III to Optimize Bandwidth Efficiency
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Built-in IR Illuminators, Effective up to 50 Meters
- Smart IR II Technology to Avoid Overexposure
- Smart Motion Detection to Reduce False Alarms
- Smart VCA (Intrusion Detection, Loitering Detection, Line Crossing Detection)
- Trend Micro IoT Security
- Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
Downloads
Datasheet
Vivotek-FD9387-HTV-A-Datasheet-A1
Videos
View AllClose
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.4
F2.8
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Digital Zoom:
|
48
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
30
100
|
|
IR LED Quantity:
|
4
|
|
Iris:
|
P-iris
|
|
Languages:
|
English
|
|
Lens Size:
|
2.7~13.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
12 Watts
|
|
Minimum Illumination (B/W):
|
0.01 Lux at F1.4
|
|
Minimum Illumination (Color):
|
0.075 Lux at F1.4
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
164
|
|
Power Supply:
|
12 VDC
24 VAC
PoE (IEEE 802.3af)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek V (Versatlile) Series
|
|
Protection Code:
|
IP66
IP67
IK10
|
|
RAM:
|
1GB
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
57 dB
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/32000s
|
|
Special Technologies:
|
Trend Micro IoT Security
Vivotek Stratocast
Vivotek SNV (Supreme Night Visibility)
Vivotek Smart Stream III
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Chrome 58.0 or above
Internet Explorer 11
|
|
Wide Dynamic Range (WDR):
|
WDR Pro
|
