Description

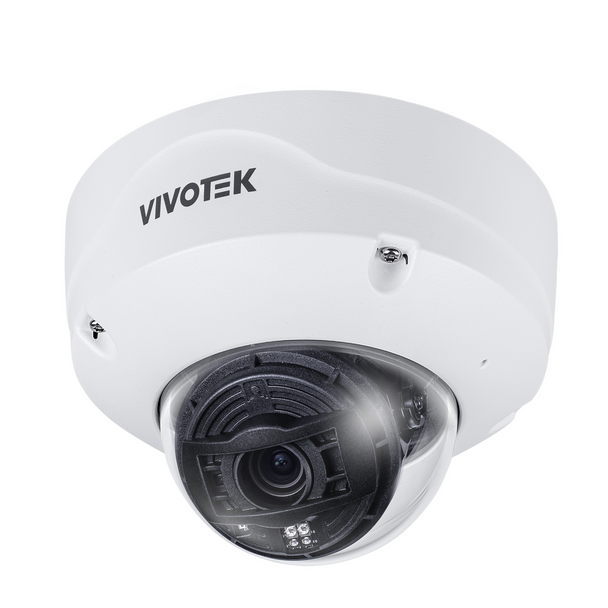

Vivotek FD9391-EHTV-v2 8MP IR Outdoor Dome IP Security Camera with 4.4~10.2mm Lens, White
VIVOTEK FD9391-EHTV-v2 is a newly revamped outdoor fixed dome network camera that delivers 3840x2160 (4K/8MP) resolution at up to 30 fps. This well-designed, outdoor-ready camera features a built-in microphone, I/O functionality, the most up to date VIVOTEK SNV, WDR Pro, and Smart IR III technology to deliver clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics with IP66, IP67, IP6K9K, IK10+, NEMA 4X and wide temperature range from -40°C to 60°C without heaters making it ideal for wide-ranging outdoor surveillance scenarios.
Key Features:
- 30 fps @ 3840x2160
- H.265 Compression Technology with Smart Stream III
- Installation-friendly Design
- Weather-proof IP66, IP67, IP6K9K and Vandal-proof IK10+, NEMA 4X-rated Protection
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Built-in IR Illuminators up to 50M with Smart IR III
- Signed Firmware and Secure Boot
- AI-powered Smart Motion Detection and Smart VCA
- Cyber Protection via Trend Micro IoT Security
Installation-friendly, Budget-friendly
The installation-friendly mechanical design has made installation easier and more hassle-free than ever. The camera’s modular design means that it can be installed in only 3 simple steps, saving both time and money, and allowing the user to focus attention on service and upgrades. With wireless access via the supported proprietary Wi-Fi dongle, the view angle can be easily adjusted during installation. Making the camera even more versatile, it can operate without the need for heaters at a range of temperatures between -50 °C to 60 °C (-58 °F to 140 °F) and thus is more energy efficient in all conditions.
Protect Your Digital Privacy and Assets
Harmonizing the camera with various built-in cybersecurity capabilities, VIVOTEK promises to keep your data safe and secure. Signed firmware, secure boot and Trend Micro IoT Security ensure only the trusted firmware with VIVOTEK digital signature can be installed, protect the system from attacks or infections by malicious unauthenticated code every time you boot up and provide multi-layer protection with the latest signature upgrades.
Lightning-fast search speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search result. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.
Downloads
Compatible products
Additional Information
|
Analytics:
|
Object Detection
Smart Motion Detection
Vehicle Detection
Intrusion Detection
Line Crossing
Face Detection
|
|
Aperture:
|
F1.38
F2.24
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE
FCC
UKCA
RCM
VCCI
UL Listed
CB
IEC
LVD
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
290.9
670.8
|
|
Digital Input:
|
2
|
|
Digital Output:
|
2
|
|
Digital Zoom:
|
48
|
|
Dimensions:
|
174 x 123 mm (6.8 x 4.8 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
133
49
|
|
Field of View (Horizontal):
|
110
43
|
|
Field of View (Vertical):
|
57
24
|
|
IR LED Quantity:
|
4
|
|
Identify (ft):
|
28.9
67
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Highlight Compensation (HLC)
Defog
Lens Distortion Correction (LDC)
Electronic Image Stabilization (EIS)
|
|
Image Settings:
|
Privacy Mask
Brigthness
Saturation
Sharpness
Contrast
Flip
Mirror
|
|
Iris:
|
P-iris
|
|
LED Indicator:
|
Status LED
Power LED
|
|
Lens Size:
|
4.4~10.2mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
14.25 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Minimum Illumination (B/W):
|
0.005 Lux
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.01 Lux
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
116.3
81.8
|
|
Power Supply:
|
12 VDC
24 VAC
PoE+ (IEEE802.3at Class 4)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek Supreme Series
|
|
Protection Code:
|
IK10 Plus
IP66
IP67
NEMA 4X
IP6K9K
|
|
RAM:
|
2GB
|
|
Recognize (ft):
|
58.1
134.1
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
8MP (4K)
|
|
Rotation Angle:
|
175
|
|
S/N Ratio:
|
58 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
IP address filtering
Password protection
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
Trend Micro IoT Security
|
|
Technology:
|
Network (IP)
|
|
Tilt Degree:
|
80
|
|
USB Interface:
|
1x Micro USB
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Chrome
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
WDR Pro
|
