Vivotek IB9365-LPR 2MP License Plate Recognition Outdoor Bullet IP Security Camera with Embedded LPR Software, Wiegand Protocol, SNV II
Description
Vivotek IB9365-LPR 2MP License Plate Recognition Outdoor Bullet IP Security Camera with Embedded LPR Software, Wiegand Protocol, SNV II
VIVOTEK’s IB9365-LPR camera is a standalone LPR camera system, featuring a built-in license plate recognition system as well as white-list and black-list for license plate verification. It can read the markings of multiple countries or states simultaneously (e.g., Singapore and Malaysia; Texas, Oklahoma and neighboring states). It also offers various APIs for integration with 3rd party systems such as parking management, toll collection, and weighbridge systems. The camera is ideal for use in parking access control and Stop & Go toll systems.
Additionally, the IB9365-LPR employs VIVOTEK’s SNV II and Smart IR II technology, is capable of capturing the highest quality images in both low light and high contrast environments, and offers the best in nighttime surveillance technology. The IR illuminators now align with the focus angle of the remote focus lens to provide the best IR image quality for any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range.
Key Features:
- Embedded Access Control Application Based on LPR Software
- Supports License Plates from over 70+ Countries
- Black and White Lists for License Plate Verification
- Centralized List Management in Single Camera
- Fully Integrated with VAST 2
- Various Open APIs Available for 3rd Party Integration
- Suitable for Outdoor Scenarios with SNV II and WDR Pro II Technology
- Trend Micro IoT Security
- Supports Wiegand Protocol for Access Control Applications
- Supports Hazard ID Recognition
- Weather-proof IP66, Vandal-proof IK10 and NEMA 4X-rated Housing
Supported Both Simple and Complex Scenarios
The IB9365-LPR Series camera can work as an embedded access control application based on LPR software. It can trigger digital output device on this camera when a number plate is recognized and matched the data in list such as white list. This IB9365-LPR Series camera can convert number plates into Wiegand signals to work with access control system.
List Management for Number Plate Verification
Users can manage license plate lists for various purposes, such as a white list that triggers a welcome message, a black list that triggers an alarm, and an all plates list for access control management. Multiple lists are supported, with no limit on the number of supported license plates.
Stop & Go Outdoor Parking Solution

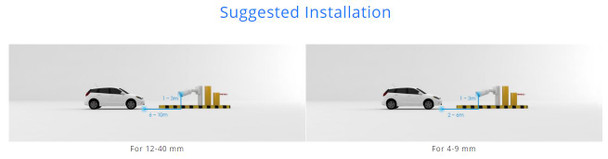

The IB9365-LPR Series adopts VIVOTEK’s SNV II (Supreme Night Visibility II), and WDR Pro II. With a 12-40mm focal length lens, this advanced camera is ideally suited for vehicle detection in outdoor scenarios in which surveillance over longer distances or in low-light conditions is necessary, such as parking areas or gas stations.
The Smart IR II technology in IB9365-LPR makes nighttime image quality both brighter and clearer. The White LED design in IB9365-LPR-W even enables the reading of color license plates at night without optional illuminators.

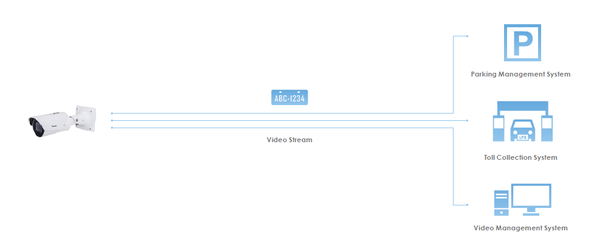

Easily Integrated with 3rd Party Systems
This IB9365-LPR Series camera can export all license plate recognition results and the related LPR events. It can be easily integrated with 3rd party systems, such as parking management systems, toll collection systems or weighbridge management systems, by sending XML or JSON messages.
Downloads
Popular Search
Compatible products
Additional Information
Camera Style: |
Bullet
|
Environmental: |
Outdoor
|
Resolution: |
2MP
|
Specialized Camera Feature: |
License Plate Recognition (LPR)
|
Technology: |
Network (IP)
|
