Description

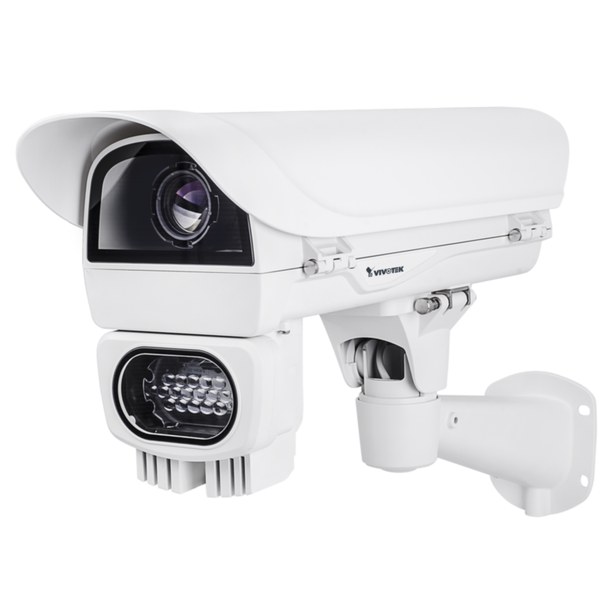

Vivotek IP9165-LPRKIT-S (40mm) License Plate Capture IP Security Camera with AI-109 IR for Streets, Vari-focal 12-40mm Lens
VIVOTEK’s IP9165-LPR Kit (Street) is a standalone LPR camera system featuring a built-in license plate recognition system, supporting white-lists and black-lists for license plate verification. It also offers various APIs for integration with 3rd party systems such as traffic management, toll collection, and weighbridge systems. The IP9165-LPR Kit (Street) is an ideal option for city surveillance, residential communities, and expressway toll-management applications.
With the adoption of snap-in corresponding IR LEDs and a built-in head-light filter, the IP9165-LPR Kit (Street) delivers the best results for license plate recognition in both the highest levels of glare and in the darkest hours of the night. Empowered with VIVOTEK LPR Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the Kit can capture clear plate images from the vehicles moving at speeds of up to 60MPH (90km/hr). Value-added features such as DIS (Digital Image Stabilization) and i-CS lens (intelligent-CS) can be easily installed and adjusted to provide the perfect LPR solution.
Additionally, in order to provide precise, reliable and authoritative data for use as evidence. The IP9165-LPR Kit can simultaneously combine the LPR result and a snapshot of the linked camera. This feature is beneficial for law enforcement agencies, such as the police and government.
Key features:
- Capture Vehicle Speed up to 60MPH (90km/hr)
- Embedded LPR Software for Urban/Road Applications
- Supports License Plates from over 70+ Countries
- Taking Snapshots from Another Related Overview Camera as Evidence Images
- Supreme Anti-Glare Capability
- One Camera Covers Dual Lane
- Certified by Numerous LPR Software Manufacturers around the World
- Vandal-Proof IK10-rated and Weather-Proof IP68-rated Housing
Kit includes:
- AI-109
- AE-23A
- AM-21E
Downloads
Compatible products
Additional Information
|
Additional Features:
|
Mobile App Support (IOS, Android)
|
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F1.8
F2.3
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Captures license plates up to (mph):
|
60
|
|
Certifications:
|
CE
LVD
FCC Class B
VCCI
C-Tick
UL/CUL
BIS
BSMI
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Digital Input:
|
2
|
|
Digital Output:
|
2
|
|
Digital Zoom:
|
48
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
34.2
11.6
|
|
Image Enhancements:
|
Digital Image Stabilizer (DIS)
|
|
Internal Storage:
|
32 GB
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
12~40mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Max Power Consumption:
|
78 Watts
|
|
Max. FPS and Resolution:
|
60fps at 1080P
|
|
Max. Storage Capacity:
|
128 GB
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Night Vision Range (ft):
|
1148
492
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Power Supply:
|
24 VAC
12 VDC
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek Supreme Series
|
|
Protection Code:
|
IP68
IK10
|
|
RAM:
|
1GB
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
66.2 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1/5-1/32000s
|
|
Specialized Camera Feature:
|
License Plate Recognition (LPR)
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x BNC
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
Wide Dynamic Range (WDR)
WDR 140dB
|
