Description
Vivotek IT9388-HT 5MP H.265 IR Outdoor Turret IP Security Camera with Varifocal Lens
Key Features
- H.265 Compression Technology
- 20 fps @ 2560x1920 (WDR Pro on)
- 2.8~12 mm, Remote Focus
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Trend Micro IoT Security
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Built-in Microphone
Downloads
Datasheet
Vivotek-IT9388-HT-Datasheet-A1
Specifications
Specifications
Technical Specifications
System Information
- Model
- IT9388-HT
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 512MB
Camera Features
- Image Sensor
- 1/2.7" Progressive CMOS
- Max. Resolution
- 2560x1920 (5MP)
- Lens Type
- Vari-focal, Remote Focus
- Focal Length
- f = 2.8~ 12 mm
- Aperture
- F1.4 ~ F2.8
- Auto-iris
- Fixed-iris
- Field of View
- 30° ~ 88° (Horizontal)
23° ~ 65° (Vertical)
38° ~ 115° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination
- 0.035 Lux @ F1.4 (Color)
<0.005 Lux @ F1.4 (B/W)
0 Lux with IR illumination on
- Pan Range
- 360°
- Tilt Range
- 70°
- Rotation Range
- 360°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 20 fps @ 2560x1920
- Maximum Streams
- 3 simultaneous streams
- S/N Ratio
- 61 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings
- Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Video Motion Detection
- Five-window video motion detection
- VADP Package
- Trend Micro IoT Security, Stratocast
Alarm and Event
- Alarm Triggers
- Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
- Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mbps Network/PoE connection*1
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af PoE Class 0
- Power Consumption
- Max. 9.8 W (IR on)
Max. 6.29 W (IR off)

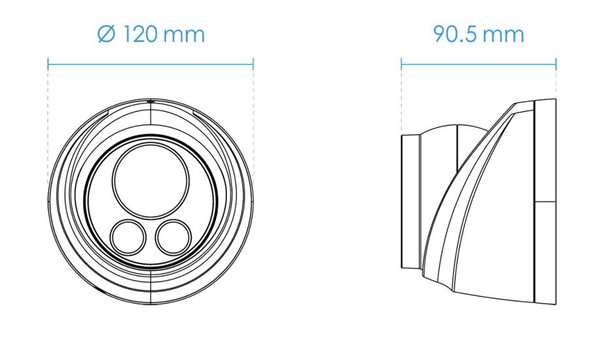

- Dimensions
- Ø 120 x 90.5 mm
- Weight
- 625 g
- Casing
- IP66, IK10(Metal Housing)
- Safety Certifications
- CE, FCC Class B, UL, LVD, VCCI, C-Tick
- Operating Temperature
- Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
- Humidity
- 90%
- Warranty
- 24 Months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
- Others
- Quick installation guide, alignment sticker, screw pack, cable gland
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Turret
|
|
Compression:
|
H.265
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
30
90
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Night Vision Range (ft):
|
98
|
|
Product Series:
|
Vivotek C (Competitive) Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Special Technologies:
|
Vivotek SNV (Supreme Night Visibility)
|
|
Technology:
|
Network (IP)
|
