Vivotek

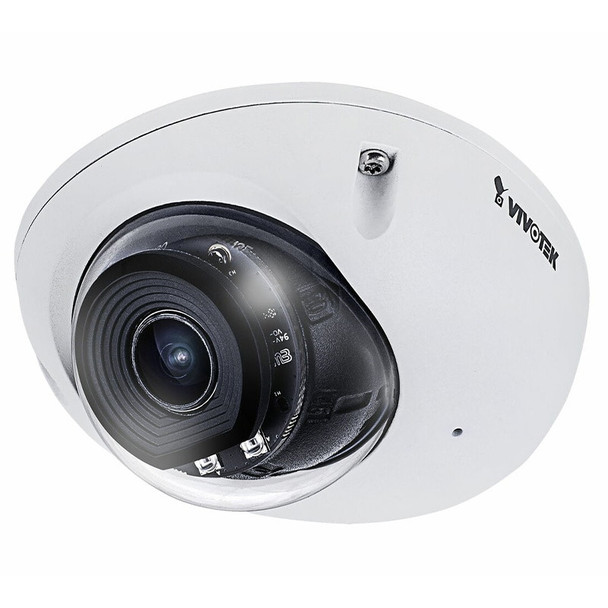

Vivotek MD9560-DHF3 2MP H.265 IR Mobile Outdoor Dome IP Security Camera with DC and 3.6mm Fixed Lens
(No reviews yet)
Write a Review
- SKU:
- MD9560-DHF3
- UPC:
- 4710469350269
$600.00
Free Shipping
Technical Support
- Compression : H.265,
- Lens Type : Fixed Lens
- Lens Size : 3.6mm Lens
- Protection Code : IP67 IP66 IK10
- Environmental : Outdoor
- Weatherproof : Yes
Description
Vivotek MD9560-DHF3 2MP H.265 IR Mobile Outdoor Dome IP Security Camera with DC
Key Features
- 2MP
- 3.6mm Fixed Kens
- H.265 Compression Technology
- 30 fps @ 1920x1080
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Fast AE for Quick Adaptation to Light Changes
- Smart Stream III to Optimize Bandwidth Efficiency
- Weather-proof IP66 and IP67, Vandal-proof IK10 Housing
- Built-in IR Illuminators, effective up to 20 Meters
- DC Power Supported
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- EN50155 2017 OT1 Compliance for Professional Mobile Surveillance
- Video Rotation for Corridor Scenario
Specifications
Specifications
Technical Specifications
System Information
- Model
- MD9560-DH
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 256MB
Camera Features
- Image Sensor
- 1/2.9" Progressive CMOS
- Max. Resolution
- 1920x1080 (2MP)
- Lens Type
- Fixed-focal
- Focal Length
- f = 2.8 mm
- Aperture
- F1.8
- Auto-iris
- Fixed-iris
- Field of View
- 108° (Horizontal)
60° (Vertical)
124° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2
- Minimum Illumination
- 0.13 Lux @ F1.8 (Color)
0.01 Lux @ F1.8 (B/W)
0 Lux with IR illumination on
- Pan Range
- ±30°
- Tilt Range
- 90°
- Rotation Range
- ±180°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H264, MJPEG
- Maximum Frame Rate
- 30 fps @ 1920x1080
- Maximum Streams
- 3 simultaneous streams
- S/N Ratio
- 60 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and bitrate, Smart Stream III
- Image Settings
- Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
External line input
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Video Motion Detection
- Five-window video motion detection
- VADP Package
- Trend Micro IoT Security, Stratocast
Alarm and Event
- Alarm Triggers
- Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
- Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- M12 for Network connection*1
DC power input*1
Audio input*1
Digital input*1 (30V, 1A)
Digital output*1 (12V, 50mA)
- LED Indicator
- System power and status indicator
- Power Input
- DC 7.5 ~ 48V
- Power Consumption
- Max. 5.5 W (IR on)
Max. 3.3 W (IR off)
- Dimensions
- 98 x 54 x 110.8 mm
- Weight
- 400 g
- Casing
- IP66, IP67, IK10, NEMA 4X
- Safety Certifications
- CE, LVD, FCC Class B, VCCI, C-Tick, UL, NEMA 4X, EN50155 2017 OT1/ST1, IEC60571, EN61373, EN50121-3-2, EN50121-4, EN50132-7, EN45545 HL1, IEC62236-3-2, IEC62236-3-2, EN60068-2-1, EN60068-2-2, ECE R118, E-Mark
- Operating Temperature
- Starting Temperature:
-25°C ~ 55°C (-13°F~ 131°F)
Working Temperature:
-25°C ~ 60°C (-13°F~ 140°F) (IR off)
-25°C ~ 55°C (-13°F~ 131°F) (IR on)
Maximum (intermittent): 70 °C (158 °F)
- Humidity
- 98%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
- Others
- Quick installation guide, screwdriver, alignment sticker, desiccant bag
Additional Information
Camera Style: |
Dome
|
Compression: |
H.265
|
Environmental: |
Outdoor
|
Key Features: |
Weatherproof
Night Vision (IR)
Vandal Proof
EN50155
SD Card Storage Support
|
Lens Size: |
3.6mm
|
Lens Type: |
Fixed Lens
|
Night Vision Range (ft): |
65ft
|
Protection Code: |
IP67
IP66
IK10
|
Resolution: |
2MP
|
SD Card Support: |
|
Technology: |
Network (IP)
|
Vandal Proof: |
|
Weatherproof: |
|
