Description

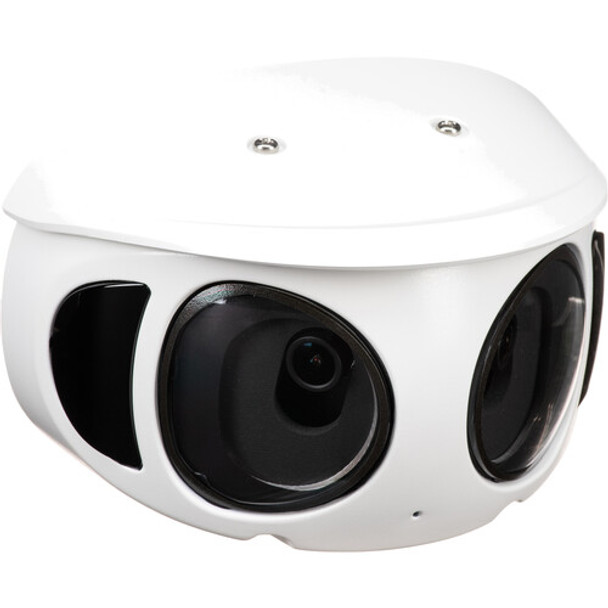

Vivotek MS9390-EHV-v2 8MP Night Vision Outdoor Panoramic Multi-Sensor IP Security Camera with Built-in Microphone
Key Features
- 8-Megapixel Resolution
- H.265 Compression Technology
- 180° Panoramic View
- 30 fps @ 8M
- Video Alignment Allowing You to Have a Seamless Picture
- Smart Stream III to Optimize Bandwidth Efficiency
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- IR Illuminators up to 20M
- Built-in Microphone
- SNV (Supreme Night Visibility)
- 3D Noise Reduction for Low-light Conditions
- Built-in MicroSD/SDHC/SDXC card slot
- NDAA
Replacement of:
MS9390-HV
Downloads
Datasheet
Vivotek-MS9390-EHV-V2-Datasheet-A1
Installation Guide
Vivotek-MS9390-EHV-V2-Installation-Guide-A1
User Manual
Vivotek-MS9390-EHV-V2-User-Manual-A1
Videos
View AllClose
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Angle of View:
|
180 Degree
|
|
Aperture:
|
F1.2
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
G.711
G.726
AAC-LC
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Multi-sensor
|
|
Certifications:
|
FCC
BIS
CE
BSMI
VCCI
CB
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
264.2
|
|
Dimensions:
|
165 x 100 x 119 mm (6.49 x 3.93 x 4.68 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
IR LED Quantity:
|
8
|
|
Identify (ft):
|
25.7
|
|
Iris:
|
Fixed Iris
|
|
LED Indicator:
|
Power LED
Status LED
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Made in:
|
Taiwan
|
|
Max Power Consumption:
|
20 Watts
|
|
Max. FPS and Resolution:
|
30fps at 8MP
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (B/W):
|
0.01 Lux
|
|
Minimum Illumination (Color):
|
0.018 Lux
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
65
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
105.7
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek V (Value) Series
|
|
Protection Code:
|
IP66
IK10
|
|
RAM:
|
2GB
|
|
Recognize (ft):
|
52.9
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
8MP (4K)
|
|
S/N Ratio:
|
57.9 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/30-1/320000s
|
|
Special Technologies:
|
Vivotek Smart Stream III
Vivotek SNV (Supreme Night Visibility)
Trend Micro IoT Security
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Chrome
Internet Explorer
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
WDR Pro
|
