Vivotek SC8131 Indoor Stereo IP Security Camera, WDR Pro, People Counting

Brand: Vivotek
Part Number: SC8131
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued
  • Vivotek SC8131 Indoor Stereo IP Security Camera - WDR Pro, People Counting
  • Vivotek SC8131 Indoor Stereo IP Security Camera, WDR Pro, People Counting

? Help me pick a security camera

Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.264, MJPEG,
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Environmental : Indoor

Description

Vivotek SC8131 Indoor Stereo IP Security Camera

VIVOTEK's SC8131 is a stereo counting camera, armed with VIVOTEK's 3D Depth Technology and video surveillance functionality, providing real-time precise tracking video and high accuracy counting up to 98%. The stereo camera generates data information such as people counting, flow path tracking that applied to in store layout improvement, promotional evaluation, staff planning, and the control of service times, providing business owners key metrics to effectively make operating decisions and increase ROI.

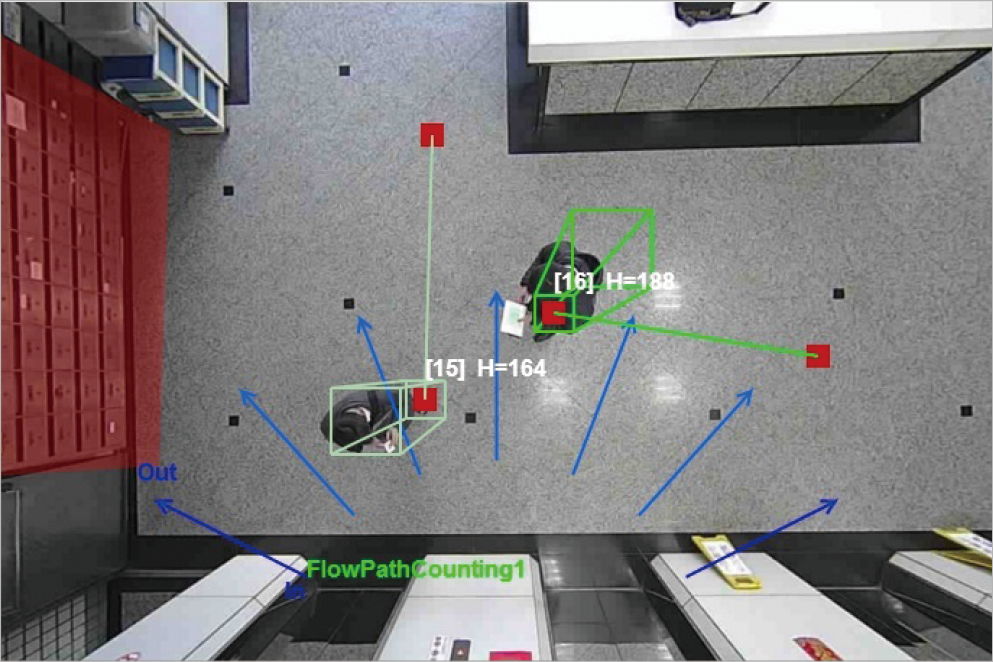

Mounted over a store entrance, the dual-lens camera enables the stereo vision to accurately track the 3D positions of objects moving across the field of view. Adults or children, single individuals or groups, can be distinguished from non-human objects such as shopping carts and strollers, providing accurate counting analytics even at the busiest and most congested times.

Furthermore, seamless integration with VCA (video content analysis) reports in VIVOTEK's VAST, the metadata is displayed in comprehensive graphs and line charts, making the SC8131 ideal for retail analytics. The computation of height disparity data is embedded in the stereo camera, instead of sending video streams to a dedicated computer running a separate analytics software. The counting solution saves bandwidth and reduces the risk of data loss in the event of network or power disruption.

Key features:

  • VIVOTEK's 3D Depth Technology
  • High Accuracy Rate up to 98%
  • Local Storage Data for Counting Report
  • Easy Installation and Configuration
  • Seamless Counting with VAST CMS


Downloads

Specifications

Technical Specifications

System Information
Model
SC8131(F2): f = 2 mm
SC8131(F4): f = 4 mm
SC8131(F6): f = 6 mm
CPU
Multimedia SoC (System-on-Chip)
Flash
256MB
RAM
512MB
Camera Features
Image Sensor
1/3" Progressive CMOS
On-board Storage
Slot type: MicroSD/SDHC/SDXC card slot
Video
Video Compression
H.264, MJPEG
Maximum Frame Rate
15 fps @ 2560x960
Maximum Streams
3 simultaneous streams
Report Format
JSON/XML/CSV
General
Connectors
RJ-45 for Network/PoE connection
DI/DO
USB 2.0 (Only as a power bank, not for data transmission)
MicroSD Slot
LED Indicator
System power and status indicator
Power Input
IEEE 802.3af PoE Class 3
Power Consumption
PoE: Max. 12.95 W
USB: Max. 300mA
Dimensions
160 (D) x 70 (W) x 38 (H) mm
Weight
396 g
Safety Certifications
CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature
Starting Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Working Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Warranty
36 months
Installation
Installation Height
SC8131(F2): 240~500 cm (7.9~16.4')
SC8131(F4): 500~800 cm (16.4~26.2')
SC8131(F6): 800~1000 cm (26.2~32.8')
System Requirements
Operating System
Microsoft Windows 8/7
Mac 10.12 (Chrome only)
Web Browser
Chrome 58.0 or above
Internet Explorer 10/11
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
Others
Quick installation guide, mounting bracket, screw pack
View AllClose

Additional Information

Analytics:
People Counting
Camera Style:
Multi-sensor
Compression:
H.264 MJPEG
Connection Type:
Wired
Digital Input:
1
Digital Output:
1
Environmental:
Indoor
Languages:
English
Max Power Consumption:
12.95 Watts
Network Interface:
1x RJ-45
Operating Temperature:
-10 °C to 40 °C (14 °F to 104 °F)
Power Supply:
PoE (IEEE 802.3af)
Product Series:
Vivotek Supreme Series
RAM:
512MB
Resolution:
1.3MP
SD Card Support:
SD Card Supported
Sensor Size:
1/3"
Sensor Type:
CMOS
Technology:
Network (IP)
USB Interface:
1x USB 2.0
Warranty:
3-year Manufacturer Warranty
