Vivotek SD9362-EHL 2MP H.265 Outdoor PTZ IP Security Camera

Description
Specifications
Additional Information

Description

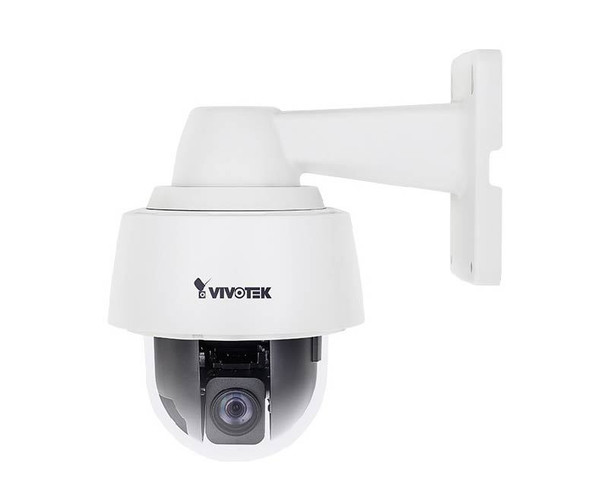

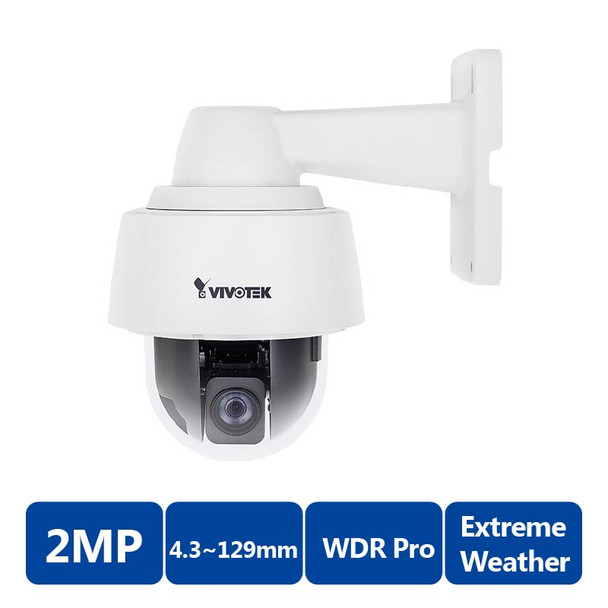

Vivotek SD9362-EHL 2MP H.265 Outdoor PTZ IP Security Camera

VIVOTEK’s SD9362-EHL is a high performance H.265 Full HD speed dome network camera. Armed with a 30x optical zoom lens, the camera is able to capture fine details at top-notch quality. By combining both H.265 and VIVOTEK’s Smart Stream II technology which enables the camera to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage, it is capable of reducing both bandwidth and storage consumption by up to 80%* while maintaining the highest standard of image quality.

Offering extra smooth video quality with resolutions of up to 60 fps at 1920x1080, the SD9362-EHL is also equipped with WDR Pro technology and IR-cut filter for seamless day/night operation. This enables the camera to cope effortlessly with the challenging lighting conditions faced in 24/7 surveillance. Further, the water-proof IP68-rated, vandal-proof IK10-rated and NEMA 4X-rated housing of the SD9362-EHL protects the camera body against rain, dust and corrosion and provides a wide operating-temperature range of between -40°C and 55°C. This combination of robustness and high performance ensures that the SD9362-EHL is especially suitable for monitoring wide, open, harsh indoor or outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are called for.

Key Features:

2MP Sensor
1/3" Progressive CMOS
4.3~129mm Lens
60 fps @ 1920x1080
Wide Dynamic Range Pro
Removable IR-cut filter for day & night function
Built-in 802.3af Compliant PoE
H.265 Compression Technology
Field of View 2° ~ 59° (Horizontal)
Field of View 2° ~ 45° (Vertical)
Field of View 3° ~ 71° (Diagonal)
Pan Speed 0.05° ~ 450°/sec.
Pan Range 360° endless
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
Smart Stream II to Optimize Bandwidth Efficiency
3D Noise Reduction
Smart IR Technology to Avoid Overexposure
SNV (Supreme Night Visibility)
Extreme Weather Resistance, -40°C ~ 65°C (-40°F ~ 149°F)
Vandal proof IK10-rated and NEMA4X Housing

View AllClose

Specifications

Technical Specifications

System Information

Model: SD9362-EHL(with Bracket, IO Cable)
SD9362-EHL(without Bracket, IO Cable)

CPU: Multimedia SoC (System-on-Chip)

Flash: 128MB

RAM: 512MB

Camera Features

Image Sensor: 1/3" Progressive CMOS

Max. Resolution: 1920x1080 (2MP)

Lens Type: 30x Optical Zoom, Auto Focus

Focal Length: f = 4.3 ~ 129 mm (30x zoom)

Aperture: F1.6 ~ F4.7

Auto-iris: DC-iris

Field of View: 2° ~ 59° (Horizontal)
2° ~ 45° (Vertical)
3° ~ 71° (Diagonal)

Shutter Time: 1/8 sec. to 1/30,000 sec.

WDR Technology: WDR Pro

Day/Night: Yes

Removable IR-cut Filter: Yes

Minimum Illumination: 0.42 Lux @ F1.6 (Color)
0.01 Lux @ F1.6 (B/W)

Pan Speed: 0.05° ~ 450°/sec.

Pan Range: 360° endless

Tilt Speed: 0.05° ~ 450°/sec.

Tilt Range: 220° (-110° ~ +110°)

Preset Locations: 256 preset locations, 128 presets per tour

Pan/Tilt/Zoom Functionalities: 128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patrol mode

On-board Storage: Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Video Compression: H.265, H.264, MJPEG

Maximum Frame Rate: H.265 & H.264: 60 fps @ 1920x1080
MJPEG: 30 fps @ 1920x1080

Maximum Streams: 4 simultaneous streams

S/N Ratio: 53 dB

Dynamic Range: 110 dB

Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream II

Image Settings: Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24), scheduled profile settings, EIS, 3D noise reduction, defog, HLC

Audio

Audio Capability: Two-way Audio (full duplex)

Audio Compression: G.711, G.726

Audio Interface: External microphone input
External line output

Network

Users: Live viewing for up to 10 clients

Protocols: 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection: Five-window video motion detection

Auto-Tracking: Auto-tracking on moving object

Alarm and Event

Alarm Triggers: Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection

Alarm Events: Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors: RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC/AC 24V power input
Digital input*4
Digital output*2
RS-485

LED Indicator: System power and status indicator

Power Input: DC 24V
AC 24V
60W UPoE

Power Consumption: Max. 48 W/26 W (Heater on/off)

Dimensions: Ø 162 x 221 mm

Weight: 4.35 kg (with bracket)
2.95 kg (without bracket)

Casing: IP68, IK10, NEMA 4X

Safety Certifications: CE, FCC Class A, VCCI, C-Tick, UL

Operating Temperature: Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F)

Humidity: 90%

Warranty: 36 months

System Requirements

Operating System: Microsoft Windows 8/7
Mac 10.12 (Chrome only)

Web Browser: Chrome 58.0 or above
Internet Explorer 10/11

Other Players: VLC: 1.1.11 or above
QuickTime: 7 or above

Included Accessories

CD: User's manual, quick installation guide, Shepherd, VAST

Others: Wall mount bracket*, I/O combo cable*, screws, waterproof connectors, quick installation guide, alignment sticker, L-wrench, software CD, desiccant bags
*: Standard package for SD9362-EHL(with Bracket, IO Cable).

View AllClose

Additional Information

Manufacturer:	Vivotek
Product Type:	Cameras
Camera Style:	PTZ
Warranty:	3-year Manufacturer Warranty
Camera Style:	Dome
Environmental:	Outdoor
Lens Size:	4.3~129mm
Resolution:	2MP
Sensor Size:	1/3"
Sensor Type:	CMOS
Technology:	Network (IP)
Color:	White
Field of View (Horizontal):	2
Field of View (Horizontal):	59
Lens Type:	Motorized (Automatic Zoom) Lens
Vandal Proof:	Yes
Weatherproof:	Yes
Datasheet:	vivotek-sd9362-ehldatasheet_en-A1.pdf
Compression:	H.265
