Analytics:
|
Perimeter Protection
|
|
Aperture:
|
F1.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.726
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
FCC
BIS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
1856
5672
|
|
Digital Input:
|
1
|
|
Digital Output:
|
1
|
|
Digital Zoom:
|
20
|
|

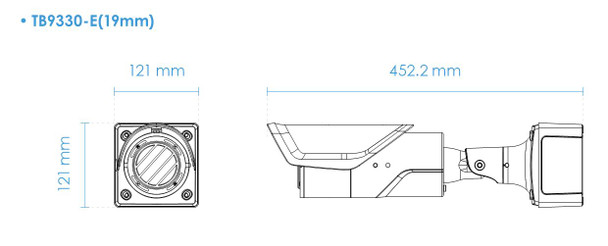

Dimensions:
|
121 x 121 x 452.2 mm (4.76 x 4.76 x 17.80 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
18.3
|
|
Identify (ft):
|
232
708
|
|
Iris:
|
Fixed Iris
|
|
LED Indicator:
|
Power LED
Status LED
|
|
Languages:
|
English
|
|
Lens Size:
|
19mm
|
|
Max Power Consumption:
|
12.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 384 x 256
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Operating Humidity:
|
0% to 90%
|
|
Operating Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Pixel Size (μm):
|
17
|
|
Power Supply:
|
24 VAC
12 VDC
PoE+ (IEEE802.3at)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek Supreme Series
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
IP67
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
465
1416
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
384 x 256
|
|
SD Card Support:
|
SD Card Supported
|
|
Serial Interface:
|
1x RS485
|
|
Special Technologies:
|
Trend Micro IoT Security
|
|
Specialized Camera Feature:
|
Thermal
|
|
Spectral Range (μm):
|
8 to 14
|
|
Technology:
|
Network (IP)
|
|
Thermal Image Sensor:
|
Uncooled VOx Infrared Detector
|
|
Thermal Resolution:
|
384 x 256
|
|
Thermal Sensitivity:
|
NETD <50 mK
|
|
Video Output:
|
1x BNC
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Internet Explorer
Chrome
|
Network (IP)
2MP
32 Night Vision
