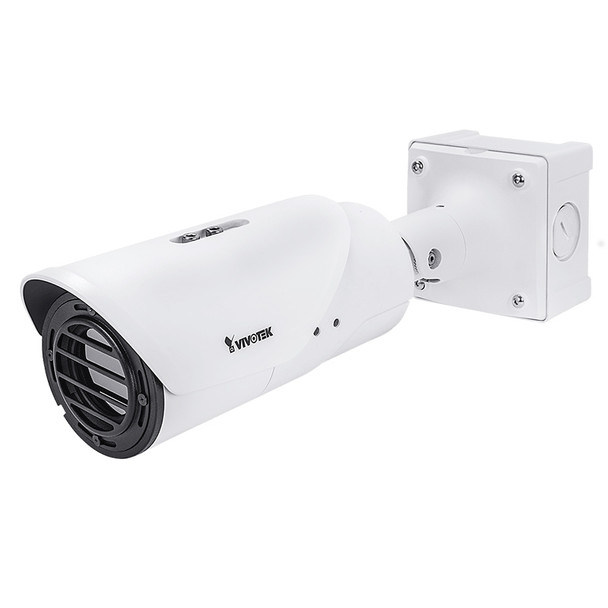

VIVOTEK's TB9330-E is an H.265 outdoor thermal bullet network camera designed to detect people and vehicles in wild weather, difficult lighting conditions, and any situation that create poor visibility. With heat based thermal imagery and lens options of 8.8/19/35/50mm, the TB9330-E supports long distance monitoring of vehicles up to 4,500m away even in complete darkness or under challenging climate conditions such as fog, rain, smoke and dust.
The TB9330-E offers 384x256 resolution with an uncooled thermal sensor and VIVOTEK's VCA (Video Content Analysis) to enhance perimeter protection and boarder security. This camera is also embedded with Trend Micro IoT Security software to provide users with higher levels of network protection. With an IP66, IK10 and NEMA 4X-rated rugged design, the TB9330-E will withstand shock &vibration, humidity, dust, and even extreme temperature fluctuations to maintain stable and reliable video no matter how harsh the environment.
|
Analytics:
|
Perimeter Protection
|
|
Aperture:
|
F1.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
BIS
CE
FCC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Detect (ft):
|
859
2627
|
|
Digital Input:
|
1
|
|
Digital Output:
|
1
|
|
Digital Zoom:
|
20
|
|

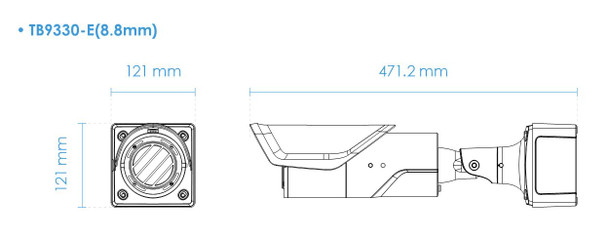

Dimensions:
|
121 x 121 x 471.2 mm (4.76 x 4.76 x 18.55 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
38.3
|
|
Identify (ft):
|
108
328
|
|
Iris:
|
Fixed Iris
|
|
LED Indicator:
|
Power LED
Status LED
|
|
Languages:
|
English
|
|
Lens Size:
|
8.8mm
|
|
Max Power Consumption:
|
12.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 384 x 256
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Pixel Size (μm):
|
17
|
|
Power Supply:
|
12 VDC
24 VAC
PoE+ (IEEE802.3at)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek Supreme Series
|
|
Protection Code:
|
IP67
IK10
IP66
NEMA 4X
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
216
656
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
384 x 256
|
|
SD Card Support:
|
SD Card Supported
|
|
Serial Interface:
|
1x RS485
|
|
Special Technologies:
|
Trend Micro IoT Security
|
|
Specialized Camera Feature:
|
Thermal
|
|
Spectral Range (μm):
|
8 to 14
|
|
Technology:
|
Network (IP)
|
|
Thermal Image Sensor:
|
Uncooled VOx Infrared Detector
|
|
Thermal Resolution:
|
384 x 256
|
|
Thermal Sensitivity:
|
NETD <50 mK
|
|
Video Output:
|
1x BNC
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Chrome
Internet Explorer
|
