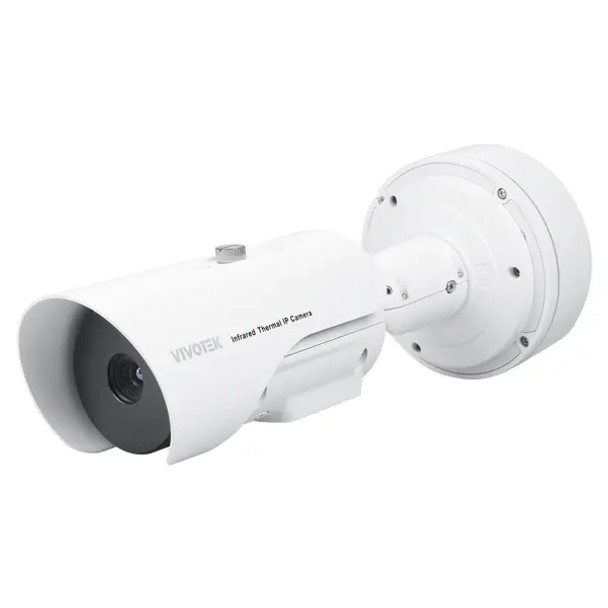

Vivotek TB9332-E(9MM) 640x512 Thermal Outdoor Bullet IP Security Camera with 9mm Lens, 25fps

Vivotek TB9332-E(9MM) 640x512 Thermal Outdoor Bullet IP Security Camera with 9mm Lens, 25fps

The Vivotek TB9332-E with 9mm lens is a versatile wide-angle thermal bullet network camera designed for comprehensive area monitoring and short to medium-range surveillance applications. Featuring an uncooled VOx microbolometer sensor with 640x512 effective resolution, this thermal camera delivers reliable heat signature detection in complete darkness and challenging weather conditions. The 9mm fixed-focal thermal lens provides a wide 48° horizontal field of view, making it ideal for parking lots, building perimeters, warehouse monitoring, and facilities requiring broad coverage areas where situational awareness across wide zones is essential.

Built to withstand harsh outdoor conditions, the TB9332-E features IP66-rated weatherproof construction and operates reliably across extreme temperature ranges from -40°C to 60°C. The camera's advanced thermal sensitivity of less than 40mK enables detection of minute temperature differences crucial for early threat identification and temperature monitoring across wide areas. Operating within the 8-14µm spectral range for optimal thermal imaging performance, the system supports dual H.265/H.264 compression for efficient bandwidth management at 25 frames per second. The wide-angle capabilities enable human detection up to 375m and vehicle detection beyond 1,150m while maintaining broad area coverage.

The TB9332-E incorporates sophisticated AI-powered analytics including temperature measurement alarms with customizable thresholds, early fire detection capabilities for proactive threat prevention, and comprehensive video content analysis for intrusion detection, line crossing, and behavioral pattern recognition. Flexible power options including DC 12V and IEEE 802.3af PoE simplify installation across diverse environments, while local MicroSD/SDHC/SDXC storage up to 256GB provides edge recording redundancy. Two-way audio support and ONVIF Profile G, S, and T compliance ensure seamless integration into existing security management systems and control centers.

Key Features:

• 640x512 thermal resolution with 12µm pixel size for detailed heat signature detection across wide areas; enables comprehensive surveillance with human detection up to 375m while maintaining broad coverage
• 9mm fixed-focal thermal lens with wide 48° horizontal field of view; optimized for wide-area monitoring including parking facilities, building perimeters, and warehouse surveillance applications
• Advanced thermal sensitivity less than 40mK (0.04°C) detects minute temperature variations across broad zones; critical for early fire detection and temperature monitoring in wide-area applications
• AI-powered analytics with temperature measurement, fire detection, and VCA (intrusion, line crossing, loitering); reduces false alarms while enabling proactive threat detection across expansive coverage areas
• IP66 weatherproof rating with -40°C to 60°C operating temperature range; ensures year-round reliable outdoor performance in diverse environmental conditions
• Dual compression (H.265/H.264) supporting 25fps at full resolution; optimizes network bandwidth efficiency for continuous wide-area monitoring and recording
• Flexible power options (DC 12V, IEEE 802.3af PoE) with MicroSD card support up to 256GB; simplifies installation while providing critical edge recording backup capability
• ONVIF Profile G, S, T compliant with two-way audio capability; enables seamless integration into existing VMS platforms and facility security infrastructure
