Vivotek VS8100-V2 1-Channel Video Server
Description
Vivotek VS8100-V2 1 Channel Video Server
VIVOTEK VS8100-v2 is a small-sized H.264 1-CH video server that helps you migrate from analog to digital surveillance system with ease. Its power sharing with CCTV and tiny design make it ideal for front-end installation and surveillance applications such as home, offices, retail stores, banks, and city surveillance, where their power supply and IP network connections are already settled. VS8100-v2 supports a variety types of analog cameras, including PTZ cameras with its Pan/Tilt/Zoom control through the built-in RS-485 port.
With the high-performance H.264 compression format, it drastically reduces the file sizes and conserves valuable bandwidth and storage space. Supporting simultaneous multiple streams, the video streams can be transmitted in either of H.264 or MJPEG formats for versatile applications. The streams can also be individually configured with separate frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.
When coupled with VIVOTEK's Smart Stream II technology, the VS8100-v2 can reduce both bandwidth and storage consumption by up to 50%*.
Key Features:
- 1 Channel
- 30 fps at D1 Resolution
- Real-time H.264, MJPEG Compression (Dual Codec)
- One-way Audio
- Smart Stream II to Optimize Bandwidth Efficiency
- RS-485 Interface for PTZ Camera Control
- Ultra-mini Size for Front-end Installation and Discreet Surveillance Application
- DC 12V Power Sharing with Analog Camera

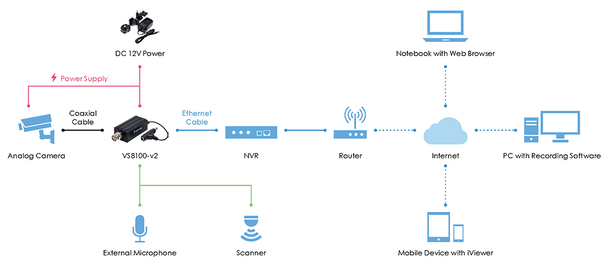

Installation:
- Connect the BNC input connector to that on an analogue camera.
- Connect the DC 12V output to the 12V input on the analogue camera.
- Connect the DC 12V input to a 12V power source. Normally a 12V 1.5A power adapter will be sufficient.
- The Reset button can be used to re-start the video server.
- If the camera has an embedded microphone, connect a stereo jack to the Audio input.
- If a camera is mounted on a PTZ scanner, you may connect the RS485 pins for PTZ control.
- If a camera is mounted on a PTZ scanner, you may connect the RS485 pins for PTZ control.
- Connect an Ethernet cable to the RJ45 Ethernet port, and connect another end to an Ethernet switch.
- See the table below for LED definitions.
- Download the Shepherd utility program. Use the Shepherd utility to locate and access your video server.
Downloads
Popular Search
Specifications
Technical Specifications
System Information
- Model
- VS8100-v2
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 256MB
Video
- Video Compression
- H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 720x480
25 fps @ 720x576
In both compression modes
- Maximum Streams
- 3 simultaneous streams
- Video Streaming
- Adjustable resolution, quality and bitrate, Smart Stream II
- Image Settings
- Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 2DNR
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.726, G.711
- Audio Interface
- External microphone input
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UPnP
- Interface
- 10Base-T/100BaseTX Ethernet (RJ-45)
* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Intelligent Video
- Video Motion Detection
- Five-window video motion detection
Alarm and Event
- Alarm Triggers
- Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
- Alarm Events
- Event notification via email, HTTP, FTP, NAS server
File upload via email, HTTP, FTP, NAS server
General
- Supported P/T/Z
- DynaDome/SmartDome, Pelco D, Pelco P, Lilin, Samsung scc643 and customized types
- Connectors
- RJ-45 for Network connection*1
Male BNC for Analog video input*1
RS-485 Terminal Block*1
Audio input*1
DC 12V output (to camera)*1
DC 12V input (to power source)*1
- LED Indicator
- System power and status indicator
- Power Input
- DC 12V
- Power Consumption
- Max. 3 W
- Dimensions
- 65 (D) x 34 (W) x 25 (H) mm
- Weight
- 64 g
- Safety Certifications
- CE, LVD, FCC Class B, VCCI, C-Tick
- Operating Temperature
- Starting Temperature: 0°C ~ 50°C (32°F ~122°F)
Working Temperature: 0°C ~ 50°C (32°F ~122°F)
- Humidity
- 90%
- Warranty
- 24 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
- Others
- Quick installation guide
Additional Information
Accessory Type:
|
Video Encoder
|
Channel Capacity:
|
1 Channel
|
NDAA Compliance:
|
NDAA Compliant
|
Warranty:
|
2-year Manufacturer Warranty
|
