ACTi E77 10MP IR 4K Outdoor Dome IP Security Camera
✅ Help me pick a security camera
- Compression : H.264, MJPEG,
- Field of View (Horizontal) : 101.4°Field of View
- Max. FPS and Resolution : 7fps at 3648 x 2736
- Lens Type : Fixed Lens
- Lens Size : 3.6mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/2.3" Sensor
- Max. Storage Capacity : 256 GB Storage Capacity
- Protection Code : IK10 IP67 NEMA 4X
- Environmental : Outdoor
- Sensor Size : 1/2.3"
- Aperture : F1.8
Description

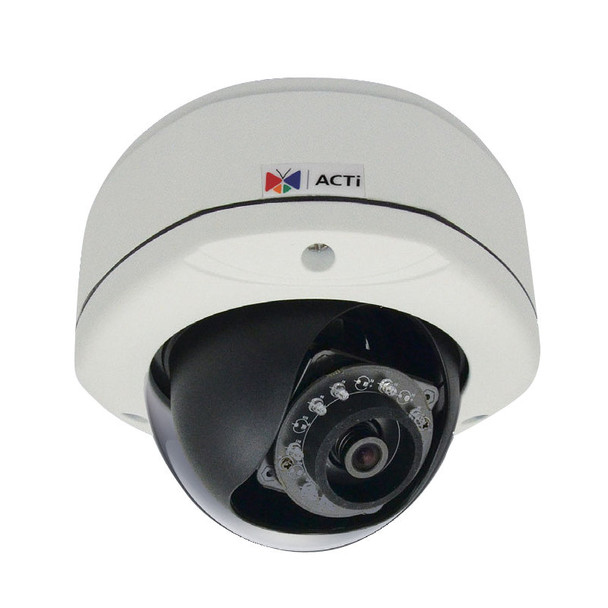

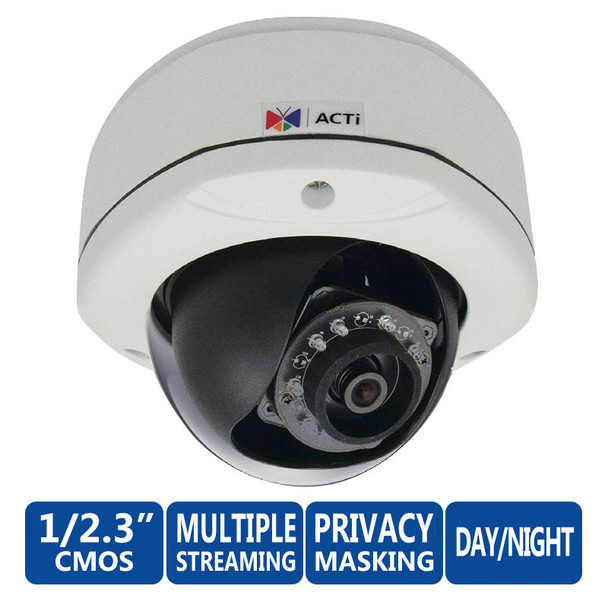

ACTi E77 10MP IR 4K Outdoor Dome IP Security Camera
![]() | ![]() |
![]() | ![]() |
The ACTi E77 Outdoor IR Dome 10MP IP Security Camera with Fixed lens is an outdoor dome camera, with a day and night function and a resolution of 10 megapixels. It offers 1080p HD images of 1920 x 1080 at 30 frames per second. It is IP66 and IK10 rated, weather-proof and vandal-proof, making it the perfect choice for outdoor surveillance. It uses a mechanical IR cur filter and 10 IR LEDs, giving it the ability to shoot in areas with intense back-lighting. It also offers a micro SD card slot for additional local storage along with a host of other advanced features.
The ACTi E77 Outdoor IR Dome 10MP IP Security Camera has a wide dynamic range of 65.2 dB, capturing images at varied light conditions. It has a progressive scan CMOS sensor that captures even moving images, and records in a minimum illumination of 0.1 lux color, and 0 lux in black and white. The camera can be board mounted and has a horizontal viewing angle of 101.4°, and its viewing angle can be adjusted to pan, tilt or rotate, according to your requirements. Its fixed iris lens has a focal length of f3.6mm/F1.8. Its efficient H.264 image compression reduces the requirements for storage compared to traditional surveillance technology, and makes it an important cost-saving feature. ONVIF compliance, white balance, auto gain control, flickerless, digital noise reduction, privacy masking, video motion detection, and PoE technology are the other useful features. The ACTi E77 Outdoor IR Dome 10MP IP Security Camera with Fixed Lens truly integrates premium solution in the IP surveillance market.
Key Features:
- Progressive scan CMOS: captures still and moving images
- WDR: captures images in varied light conditions
- IP66 rated: protection against ingress of dust and powerful jets of water
- Automatic Gain Control: maintains constant brightness level
- Video Motion Detection: triggers alarm when activity is detected
- Privacy Masking: allows concealment of private areas
- Blue Iris Compatible


This product is also associated with:
ACTi
Popular Search
Compatible products
Additional Information
Aperture:
|
F1.8
|
Audio Capability:
|
Two-way Audio
|
Audio Compression:
|
PCM
G.711
|
Audio Input:
|
1x Channel
|
Audio Output:
|
1x Channel
|
Camera Style:
|
Dome
|
Certifications:
|
UL Listed
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
ONVIF Profile Q
|
Compression:
|
H.264
MJPEG
|
Day/Night:
|
|
Dimensions:
|

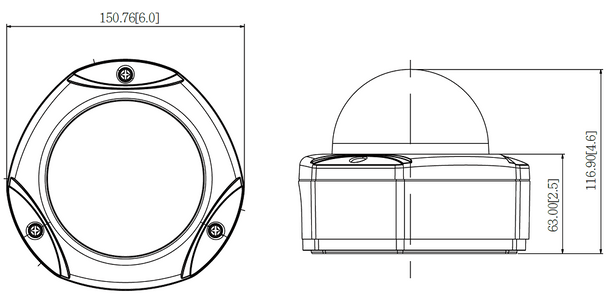

150.4 x 116.9 mm (5.9 x 4.6 in)
|
Durability:
|
Vandal Proof
Weatherproof
|
Environmental:
|
Outdoor
|
Field of View (Horizontal):
|
101.4
|
Iris:
|
Fixed Iris
|
Lens Size:
|
3.6mm
|
Lens Type:
|
Fixed Lens
|
Max Power Consumption:
|
6.5 Watts
|
Max. FPS and Resolution:
|
7fps at 3648 x 2736
|
Max. Storage Capacity:
|
256 GB
|
Minimum Illumination (B/W):
|
0 Lux at F1.8 with IR LED on
|
Minimum Illumination (Color):
|
0.1 Lux at F1.8 with 30 IRE 2400 K
|
Mounting:
|
Surface Mount
Flush Mount
Pole Mount
Wall Mount
DIN-Rail Mount
|
NDAA Compliance:
|
NDAA Compliant
|
Night Vision Range (ft):
|
98
|
Noise Reduction:
|
DNR
|
Operating Humidity:
|
10% to 85% RH
|
Operating Temperature:
|
-40 °C to 50 °C (-40 °F to 122 °F)
|
Power Supply:
|
PoE (IEEE 802.3af)
|
Protection Code:
|
IK10
IP67
NEMA 4X
|
Resolution:
|
10MP
|
S/N Ratio:
|
52 dB
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.3"
|
Sensor Type:
|
CMOS
|
Shutter Speed:
|
1/5-1/10000s
|
Technology:
|
Network (IP)
|
Warranty:
|
3-year Manufacturer Warranty
|
Wavelength (nm):
|
850
|
Web Browser:
|
Internet Explorer 11
|
Wide Dynamic Range (WDR):
|
WDR 70dB
|
