Description
|
|
|
|

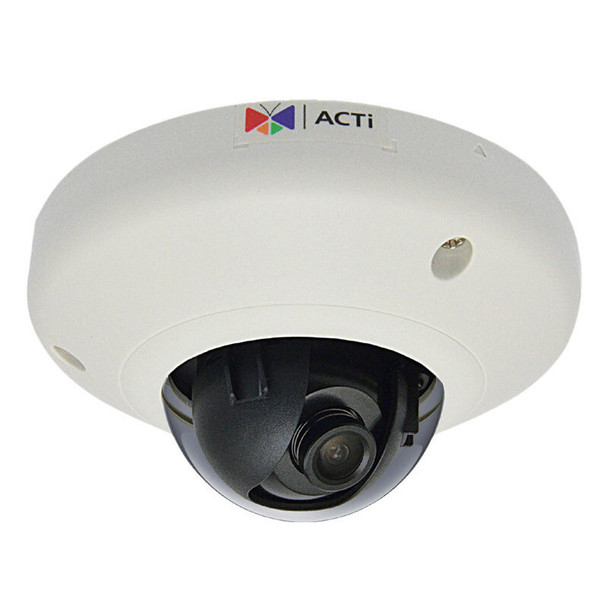

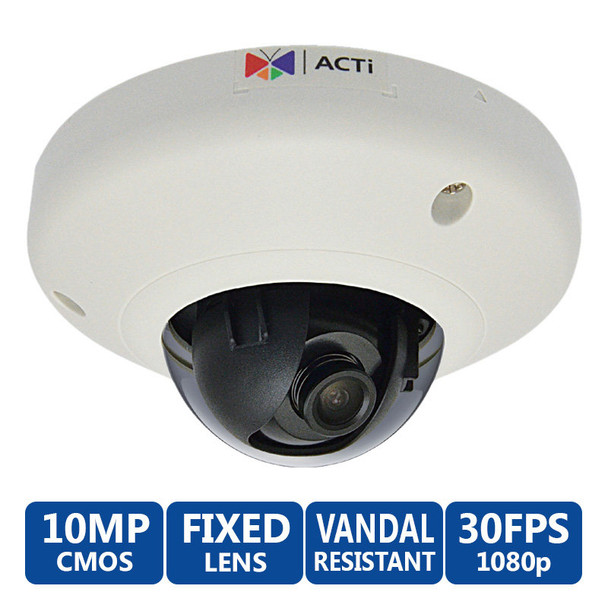

ACTi E97 10MP Indoor Mini Dome IP Security Camera
The ACTi E97 10MP Indoor Mini Dome IP Camera is a highly secure and reliable monitoring system that's ideal for any location. It features a powerful 10 megapixel CMOS imaging sensor so you can easily capture incredibly sharp and detailed images. The ACTi E97 is capable of recording ultra-smooth 1080p videos at 30 frames per second for utmost visual clarity in your picture. Thanks to its Super Wide Angle capability, you'll be able to cover more ground and monitor large areas such as airports, shopping malls, parking lots, and more.
This amazing Mini Dome Camera won't have any problems capturing video in high contrast environments as its Wide Dynamic Range feature effectively adjusts both bright and dark parts of the camera image. There's also a built-in MicroSDHC/MicroSDXC memory card slot so you can increase the capacity of your saved footage. Plus, the ACTi E97 10MP Indoor Mini Dome IP Camera has an IK08-rated housing to make it vandal-proof.
Key Features of the ACTi E97
- 10 Megapixel with 1080p: delivers stunning clear and crisp video output
- Basic WDR: adjusts the bright and dark parts of the camera image for better quality
- MicroSDHC/MicroSDXC memory card slot: allows you to increase on-board memory storage
- IK08-rated Housing: provides superior protection from any vandalism attempts
>Features
Manufacturer:
ACTi
Product Type:
Cameras
Warranty:
3-year Manufacturer Warranty
Color:
White
Environmental:
Indoor
Compression:
- H.264
- MJPEG
Discontinued:
no
Security Camera Features
Field of View (Horizontal):
- 101
Lens Size:
3.6mm
Lens Type
:
The fixed length or vari-focal length refers to the ability to adjust the camera’s field of view. The smaller the lens size, the wider the field of view. Fixed lenses will be fixed for the life of the camera but vari-focal lenses can be adjusted to have the best field of view. Vari-focal lenses are two kinds, manual and auto. If you choose manual vari-focal lense, you will need to hold the camera adjust the focal length where as if you choose motorized vari-focal lens, you will be able to perform the same task from your computer. That is the main difference.
Fixed Lens
Protection Code
:
IP: Ingress Protection
NEMA4x
IK
IK06 1 Protected against a 500 g object dropped from 20 cm in height
IK07 2 Protected against a 500 g object dropped from 40 cm in height
IK08 5 Protected against a 1.7 Kg object dropped from 29.5 cm in height
IK09 10 Protected against a 5 Kg object dropped from 20 cm in height
IK10 20 Protected against a 5 Kg object dropped from 40 cm in height
IK10+ 40 Protected against a 10 Kg object dropped from 40 cm in height
- IK08
Resolution:
10MP
Sensor Size:
1/2.3"
Sensor Type:
CMOS
Technology:
Network (IP)
Camera Style:
- Dome
- Mini Dome
Vandal Proof:
- Yes
SD Card Support:
- Yes
Weatherproof:
- No
Technical Specs
ACTi E97 10MP Indoor Mini Dome IP Camera Specifications
- Device Type: Indoor Mini Dome
- Image Sensor: Progressive Scan CMOS
- Sensor Size: 1/2.3''
- Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K)
- Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
- Focal Length / Aperture: Fixed focal, f3.6 mm / F1.8
- Iris: Fixed iris
- Focus: Fixed focus
- Lens Mount: Board Mount
- Horizontal Viewing Angle: 101.4°
- Viewing Angle Adjustment: Pan: ±90°; Tilt: 0°- 90°
- Compression: H.264 HP, MJPEG
- Maximum Frame Rate vs. Resolution: 6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
- Multi-Streaming: Simultaneous dual steams based on two configurations
- Bit Rate: 28 Kbps: 6 Mbps (per stream)
- Bit Rate Mode: Constant, Variable
- Image Enhancement: Basic WDR (65.2 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness(auto); Auto gain control; Digital noise reduction; Flickerless
- Privacy Mask: 4 configurable regions
- Text Overlay: User defined text on video
- Image Orientation: Image flip and mirror
- Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
- Ethernet Port: 1, Ethernet (10/100 Base-T), RJ-45 connector
- Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
- Alarm Trigger: Video motion detection (3 regions)
- Alarm Response: Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP
- Local Storage: MicroSDHC memory card slot (card not included)
- Power Source / Consumption: PoE Class 1 (IEEE802.3af) / 3.84 W
- Weight: 210 g (0.46 lb)
- Dimensions: (Ø x H) 110 mm x 58 mm (4.3" x 2.3")
- Environmental Casing: Vandal Resistant (IK08); Transparent dome cover
- Mount Type: Surface
- Starting Temperature: -10°C ~ 45°C (14°F ~ 113°F)
- Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
- Operating Humidity: 10% ~ 85% RH
- Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK08
- Unified Solution: Fully compatible with ACTi software
- ISV Integration: Software Development Kit (SDK) available; ONVIF compliant
- Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
