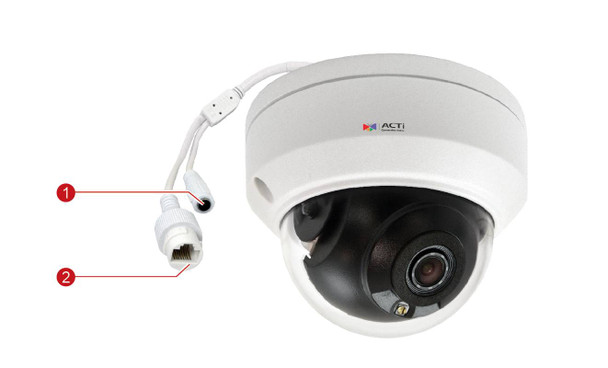

ACTi Z95 4MP IR H.265 Outdoor Mini Dome IP Security Camera

Brand: ACTi
Part Number: Z95
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Outdoor Security Cameras
4MP Security Cameras
ACTi NDAA Compliant
NDAA Compliant Cameras
ACTi Dome Security Cameras
Discontinued
  • ACTi Z95 4MP IR H.265 Outdoor Mini Dome IP Security Camera
  • ACTi Z95 4MP IR H.265 Outdoor Mini Dome IP Security Camera
  • ACTi Z95 4MP IR H.265 Outdoor Mini Dome IP Security Camera
  • ACTi Z95 4MP IR H.265 Outdoor Mini Dome IP Security Camera

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
2 Year Warranty 2 Year Warranty
  • Compression : H.265, H.264, MJPEG,
  • Field of View (Horizontal) : 104.4°Field of View
  • Max. FPS and Resolution : 20fps at 2592 x 1520
  • Lens Type : Fixed Lens
  • Lens Size : 2.8mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3" Sensor
  • Protection Code : IP67 IK10 NEMA 4X
  • Material : Plastic Metal
  • Environmental : Outdoor
  • Aperture : F2.0

Related Products

ACTi KCM-7311 Outdoor 4 Megapixel Network Dome Security Camera

ACTi KCM-7311 4MP Outdoor Dome IP Security Camera

KCM-7311
$834.00
$414.16
  • Field of View (Horizontal) : 77.2°Field of View 22.6°Field of View
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 3.3~12mm Lens
  • Sensor Type : CMOS
  • Protection Code : IP66
  • Environmental : Outdoor
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
4MP 4MP
ACTi E83A

ACTi E83A 5MP IR Day/Night WDR Outdoor Dome IP Security Camera

E83A
$582.86
  • Compression : H.264, MJPEG,
  • Field of View (Horizontal) : 69.2°Field of View 28.2°Field of View
  • Max. FPS and Resolution : 30fps at 1920 x 1080
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 2.8~12mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3.2" Sensor
  • Max. Storage Capacity : 256 GB Storage Capacity
  • Protection Code : IP67 IK10 NEMA 4X
  • Color : White
  • Environmental : Outdoor
  • Aperture : F1.4
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
5MP (3K) 5MP (3K)
98 98 Night Vision
White White
ACTi E93 5MP Indoor Mini Dome IP Security Camera - WDR - 1

ACTi E93 5MP Indoor Mini Dome IP Security Camera with 1.9mm Lens

E93
$722.00
$506.81
  • Compression : MJPEG, H.264,
  • Lens Type : Fixed Lens
  • Lens Size : 1.9mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/3.2" Sensor
  • Protection Code : IK08
  • Color : White
  • Environmental : Indoor
  • Aperture : F2.8
Free shipping over $300 Free Shipping
Network (IP) Network (IP)
5MP (3K) 5MP (3K)
White White

Description

ACTi Z95 4MP IR H.265 Outdoor Mini Dome IP Security Camera

Key Features:

  • 4 Megapixel
  • Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
  • Fixed Lens with f2.8mm/F2.0, (HOV:104.4°)
  • Superior WDR
  • H.265 Compression
  • Super wide angle
  • Event trigger, response and notification
  • Weatherproof IP67,
  • Vandal Proof IK10
  • 2D+3D DNR,
  • PoE/DC12V
Replacement of: Z91

Downloads

Popular Search

Outdoor Security Cameras
4MP Security Cameras
ACTi NDAA Compliant
NDAA Compliant Cameras
ACTi Dome Security Cameras

Specifications

Product TypeMini Dome
Maximum Resolution4MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/3 "
Effective Pixels2688(H) X 1520(V) (4.09 MP)
Day / NightYes
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.03 lux; B/W: 0 lux (IR LED on)
Mechanical IR Cut FilterYes
IR LEDAdaptive IR LED x 1 (850 nm)
IR Working Distance40m
Electronic Shutter1-1/100000 second (manual mode); 1-1/100000 second (auto mode)
S/N Ratio52 dB
Focal LengthFixed focal, f2.8mm
ApertureF2.0
IrisFixed iris
Lens MountBoard mount
Horizontal Viewing Angle104.4°
Vertical Viewing Angle54.4°
Viewing Angle AdjustmentPan: 0°-360°, Tilt: 0°-75°
CompressionH.265, H.264 (Baseline/ Main profile), MJPEG
Maximum Frame Rate vs. Resolution20 fps at 2592 x 1520
20 fps at 2048 x 1520
20 fps at 1920 x 1080
20 fps at 1280 x 720
20 fps at 640 x 360
20 fps at 704 x 576
20 fps at 704 x 288
20 fps at 352 x 288
Multi-StreamingSimultaneous triple streams
Bit Rate ModeConstant, Variable
Wide Dynamic RangeSuperior WDR (120 dB)
Image EnhancementWhite Balance, Backlight compensation, Brightness, Contrast, Sharpness, Automatic gain control, Defogging
Digital Noise Reduction2D + 3D DNR
Privacy Mask4 configurable regions
Text OverlayYes
Built-in AnalyticsTampering Detection, Intrusion Detection (Forbidden Area Detection)*
Server-based AnalyticsObject Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image OrientationFlip, Mirror
Power SourceDC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption4 W (PoE)
Weight450g (0.99lb)
Dimensions(Ø x H): 109mm x 81mm (4.3" x 3.2")
Environmental CasingWeatherproof (IP67), Vandal proof (IK10)
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity10% - 95% RH
ApprovalsCE, FCC, BIS, IP67, NEMA 4X, IK10
MaterialBase Plate: Metal
Dome Cover: Plastic
Warranty2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments* Intrusion detection is integrated with ZNR series.
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Aperture:
F2.0
Camera Style:
Mini Dome
Compatible Integration (API):
ONVIF Profile T ONVIF Profile S
Compliance:
NDAA Compliant
Compression:
H.265 H.264 MJPEG
Day/Night:
Durability:
Vandal Proof Weatherproof
Environmental:
Outdoor
Field of View (Horizontal):
104.4
Iris:
Fixed Iris
Lens Size:
2.8mm
Lens Type:
Fixed Lens
Material:
Plastic Metal
Max Power Consumption:
4 Watts
Max. FPS and Resolution:
20fps at 2592 x 1520
Minimum Illumination (B/W):
0 lux with IR illumination on
Minimum Illumination (Color):
0.03 Lux
Network Interface:
1x RJ-45 10M/100M Base-TX Ethernet
Night Vision Range (ft):
131
Noise Reduction:
2D DNR 3D DNR
Operating Humidity:
10% to 95%
Operating Temperature:
-30 °C to 60 °C (-22 °F to 140 °F)
Power Supply:
12 VDC PoE (IEEE 802.3af)
Product Series:
ACTi Z-Series
Protection Code:
IP67 IK10 NEMA 4X
Resolution:
4MP
S/N Ratio:
52 dB
Sensor Size:
1/3"
Sensor Type:
CMOS
Shutter Speed:
1-1/100000s
Technology:
Network (IP)
Warranty:
2-year Manufacturer Warranty
Wavelength (nm):
850
Web Browser:
Internet Explorer 11
Wide Dynamic Range (WDR):
True WDR 120dB
