Description

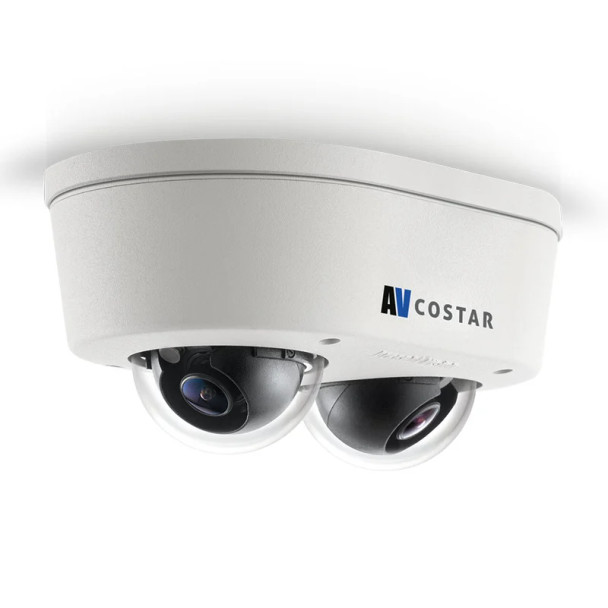

Arecont Vision AV4956DN-28 ConteraIP 4MP Omni-Directional Dual-Sensor Outdoor Dome IP Security Camera, 2 x 2.8mm Lenses
4, 10, or 16 Megapixel (MP) H.265/H.264 All-in-One Remote Setup Omni-Directional User-Configurable Multi-Sensor True Day/Night Indoor/Outdoor Dome IP Cameras with SNAPstream+™ (Smart Noise Adaptation and Processing), WDR (Wide Dynamic Range), and NightView™ Models
The ConteraIP MicroDome Duo LX features twin multi-megapixel cameras in a compact housing, and is ideal for a variety of professional indoor/outdoor surveillance requirements. Applications include coverage of a hallway or walkway, monitoring POS terminals or ATMs, or for viewing of a single wide area or two distinct regions.
ConteraIP MicroDome Duo LX is available with a choice of 4-, 10-, or 16-megapixel (MP) resolutions. These cameras provide an all-in-one solution for capturing wide area video surveillance while maximizing the field-of-view and reducing the total number of cameras required saving installers time and end users money.
The ConteraIP MicroDome Duo LX is ideal for applications with challenging lighting conditions regardless the time of day, supported by dual day/night mechanical IR cut filters. For clear color images in low-light, NightView offers strong low-light sensitivity for capturing details in extremely poor-lit scenes. Power can be supplied via a single PoE (IEEE 802.3af) compliant network cable or via an 12–48V DC/24V AC power supply.
The installer-friendly ConteraIP MicroDome Duo LX enclosure shortens the installation process. ConteraIP MicroDome Duo LX is designed for demanding environments. Certified to rigorous dust and water tests, the camera carries an IP66 rating. The rugged dome housing is IK-10 rated to withstand the equivalent of 55 kg (120 lbs) of force for vandal-prone applications.
AV Costar™ was the first to bring H.264 to the mainstream market and recently developed SNAPstream™ (Smart Noise Adaptation and Processing) technology for reducing bandwidth without impacting image quality. Today we are proud to offer our next generation H.265 with SNAPstream+ smart codec capable of delivering high quality video while saving over 50% of the data rate to reduce or prevent strain on the network.
The ConteraIP MicroDome Duo LX is ONVIF (Open Network Video Interface Forum) Profile S, G, and T conformant, providing interoperability between network video products regardless of manufacturer.
Key Features:
- 4MP, 10MP, and 16MP Models
- Remote Focus
- Easily Adjustable 3-Axis Gimbal
- Multiple Lens Options in a Single Camera Housing
- SNAPstream+ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
- NightView for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- On-Screen Display (OSD)
- WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
- Triple Encoder: H.265/H.264/MJPEG
- Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- All-in-One H.265/H.264 Total PoE Solution PoE and Auxiliary Power: 12V-48V DC/24V AC
- MicroSDXC Card Slot for Onboard Storage
- Ultra Discrete, Low-Profile Housing
- Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- NDAA and TAA Compliant
Downloads
Compatible products
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
A8-A4956DN28
|
|
Analytics:
|
Motion Detection
Tampering
|
|
Aperture:
|
F2.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
PCM
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Multi-sensor
|
|
Certifications:
|
RoHS
REACH
WEEE
CE
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.265
H.264
MJPEG
MPEG4
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Dimensions:
|
71.9 x 103 x 163 mm (2.83 x 4.06 x 6.42 in.)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
106.7
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Automatic White Balance (AWB)
Ultra Low Light
|
|
Image Settings:
|
Brigthness
Contrast
Saturation
Sharpness
Privacy Mask
Hallway View
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
10.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 4MP
|
|
Max. Storage Capacity:
|
1 TB
|
|
Minimum Illumination (B/W):
|
0.004 Lux
|
|
Minimum Illumination (Color):
|
0.04 Lux
|
|
Mounting:
|
Ceiling Mount
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 to 48 VDC
24 VAC
|
|
Privacy Mask:
|
Unlimited
|
|
Product Series:
|
Arecont Vision ConteraIP MicroDome Duo LX Series
|
|
Protection Code:
|
IP66
IK10
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Special Technologies:
|
Arecont Vision NightView
Arecont Vision SNAPstream
Arecont Vision SNAPstream+
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 100dB
|
