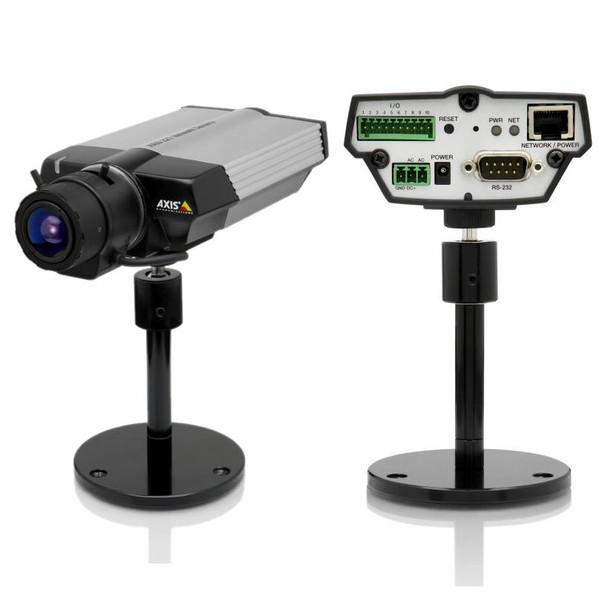

AXIS 221 VGA Box IP Security Camera

AXIS 221 VGA Box IP Security Camera

Axis 221 Day Night IP security Camera is high performance Day night network security camera for professional IP video surveillance. Axis 221 Day/Night IP Security camera is designed to meet demanding Video security applications under all lighting conditions and is supported by the industry's largest base of application software for video and alarm management.

Axis 221 Day Night IP Camera produces crystal clear images even of moving object in the dark via a high quality Pentax Lens and Progressive Scan CCD image sensor, Axis 221 day night network camera further features a infrared cut filter (ICR) which enables the camera to perform well in both high and low light condition in color as well as provide IR sensitive Black/White video at night.

Axis 221 day Night IP security cameras built-in Power over Ethernet option eliminates the need for a power outlet, as power is supplied to the camera via the network cable, and a steady power stream can be guaranteed with a UPS (Uninterruptible Power Supply). Furthermore, the unique combination of simultaneous Motion JPEG and MPEG-4 streams allows systems to be optimized for both image quality and bandwidth-efficiency. Additionally, the product offers a complete set of security features such as multi-level password protection, IP address filtering and HTTPS encryption. The support for HTTPS provides a secure channel between camera and application and enables authentication of the video source.

Axis 221 Day Night IP Network Security camera provides high frame rate imagery, and is an ideal solution for high quality video surveillance Day and Night and can be used in combination with enclosures for outdoor applications and IR illuminators for powerful nightvision in absolute darkness!

Key Features:

• Progressive Scan CCD and DC Auto Iris Lens
• True Day Night with Infrared Cut Filter (ICR) IR Sensitive
• PoE Power over Ethernet (IEEE 802.3af)
• Up to 45fps in VGA resolution 640 x 480
• Simultaneous Motion JPEG and MPEG-4
• Multi-window motion detection

Axis 221 Specifications:

• Image Sensor: 1/3” Sony Wfine progressive scan RGB CCD
• Lens:
  & - Pentax TS3V310ED, F1.0 varifocal 3.0 - 8.0 mm, DC-iris
  & - Focus range: 0.3 m to infinity. CS mount
• Angle of view: 35º-93º horizontal
• Min. illumination:
  & - Color: 0.65 lux, F1.0
  & - Black: 0.08 lux, F1.0
• Video compression:
  & - Motion JPEG
  & - MPEG-4 Part 2 (ISO/IEC 14496-2), Profiles: ASP and SP
• Resolutions:
  & - 16 resolutions from 640 x 480 to 160 x 120 via API
  & - 5 selections via configuration web page
• Frame rate:
  & - Motion JPEG: Up to 45 fps at 640x480, 60 fps at 480x360 or lower
  & - MPEG-4: Up to 30 fps at 640x480, 60 fps at 320x240 or lower
• Video streaming:
  & - Simultaneous Motion JPEG and MPEG-4
  & - Controllable frame rate and bandwidth
  & - Constant and variable bit rate (MPEG-4)
• Image settings:
  & - Compression levels: 11 (Motion JPEG)/23 (MPEG-4)
  & - Rotation: 90º, 180º, 270º
  & - Configurable color level, brightness, sharpness, contrast, white balance, exposure control, exposure area, backlight compensation, fine tuning of behavior at low light
  & - Overlay capabilities: time, date, privacy mask, text or image
• Shutter time: 2 s to 1/25000 s
• Security:
  & - Multiple user access levels with password protection
  & - IP address filtering, HTTPS encryption
  & - IEEE 801.X network access control, user access log
• Users:
  & - 20 simultaneous users
  & - Unlimited number of users using multicast (MPEG-4)
• Alarm and event management:
  & - Events triggered by video motion detection, tampering detection, temperature limits, external input or according to a schedule
  & - Image upload over FTP, email and HTTP
  & - Notification over TCP, email, HTTP and external output
  & - 9 MB of pre- and post alarm buffer
• Connectors:
  & - RJ-45 for Ethernet 10BaseT/100BaseTX (PoE)
  & - Terminal block for 2 alarm inputs, 1 output, RS-485/422 half duplex port, alternative DC power connection
  & - D-sub for RS-232 port
• Casing: Aluminium casing
• Processors, memory and clock:
  & - CPU: ETRAX 100LX
  & - Video processing and compression: ARTPEC-2
  & - RAM: 32 MB, Flash: 8 MB
  & - Battery backed up real-time clock
• Power:
  & - 7-24 V DC, max 5.5 W
  & - 10-24 V AC, max 7.5 VA
  & - Power over Ethernet PoE (IEEE 802.3af) to Class 2
• Operating conditions:
  & - 0 - 50 ºC (32 - 122 ºF)
  & - Humidity 20 - 80% RH (non-condensing)
• Installation, management and maintenance
  & - Installation tool on CD and web-based configuration
  & - Configuration backup and restore
• Video access from web browser
  & - Camera live view, video recording to file (ASF)
  & - sequence tour capability for up to 20 Axis cameras
  & - customizable HTML pages
• System integration support:
  & - Including AXIS VAPIX API, AXIS Media Control SDK
  & - Event trigger data in video stream and access to serial port peripherals over TCP.
  & - Quality of Service (QoS) Layer 3, DiffServ Model
  & - Watchdog
  & - Embedded Linux operating system
• Supported protocols:
  & - IPv4, IPv6, HTTP, HTTPS, SSL/TLS*, TCP, ICMP, SNMPv1/v2c/v3 (MIB-II)
  & - RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, DHCP, UPnP
  & - Bonjour, ARP, DNS, DynDNS, SOCKS, NTP etc.
• Included accessories:
  & - Installation Guide, CD with User’s Manual, installation and management tools
  & - Demo software, mounting and connector kits, camera stand, power supply 9 V DC
  & - Single user decoder licenses, MPEG-4 decoder (Windows)
• Approvals:
  & - EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2
  & - FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR22, EN 60950
  & - Power Supply: EN 60950, UL, CSA
• Dimensions (HxWxD) and weight:
  & - 49 x 88 x 186 mm (1.9” x 3.5” x 7.3”)
  & - 550 g (19.4 oz) excl. power supply
