Description

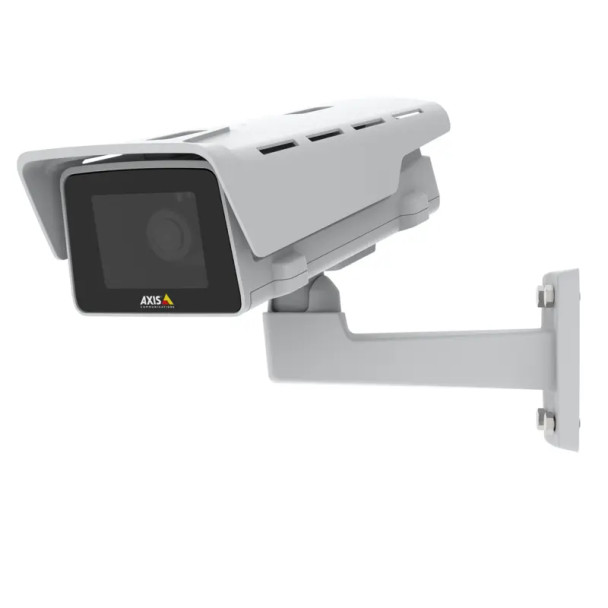

AXIS M1135-E Mk II 2MP Outdoor Box IP Security Camera with 3.5x Optical Zoom - 02485-001
This affordable, outdoor-ready camera is easy to install and operate. Enclosed in an IP66-, IK10- and NEMA 4X-rated casing, it supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Key Features:
- Compact and flexible design
- Lightfinder and Forensic WDR
- Audio input
- AXIS Object Analytics
- Support for i-CS lenses
Replacement of:
01772-001
Downloads
Datasheet
AXIS-02485-001-Datasheet-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alternative SKUs:
|
M1135-E Mk II
|
|
Aperture:
|
F1.4
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
LPCM
AAC-LC
G.711
PCM
G.726
ADPCM
Opus
|
|
Audio Input:
|
1x 3.5mm
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Box
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ACAP (AXIS Camera Application Program)
VAPIX
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Day (Color)
Night (B/W)
|
|
Dimensions:
|
240 x 143 x 372 mm (9.5 x 5.6 x 14.7 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
Indoor
|
|
Field of View (Horizontal):
|
33
90
|
|
IR Corrected:
|
IR Corrected
|
|
Image Enhancements:
|
Ultra Low Light
|
|
Iris:
|
Auto (DC-iris)
|
|
Lens Mount:
|
CS-Mount
|
|
Lens Size:
|
3~10.5mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
7.2 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Minimum Illumination (B/W):
|
0.02 lux
|
|
Minimum Illumination (Color):
|
0.1 Lux
|
|
Mounting:
|
Wall Mount
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Optical Zoom:
|
3.5x Optical Zoom
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Processor (CPU):
|
ARTPEC-7
|
|
Product Series:
|
AXIS M11 Series
|
|
Protection Code:
|
IP66
NEMA 4X
IK10
|
|
RAM:
|
1GB
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.9"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/33500s
|
|
Special Technologies:
|
AXIS Lightfinder
AXIS Object Analytics
AXIS Zipstream
|
|
Storage Humidity:
|
5% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 65 °C (-40 °F to 149 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
