AXIS
AXIS M3057-PLVE 6MP IR Outdoor Dome IP Security Camera 01177-001 - 360-degree panoramic view
- SKU:
- 01177-001
- UPC:
- 7331021061415
- Maximum Purchase:
- 1000 units
Description

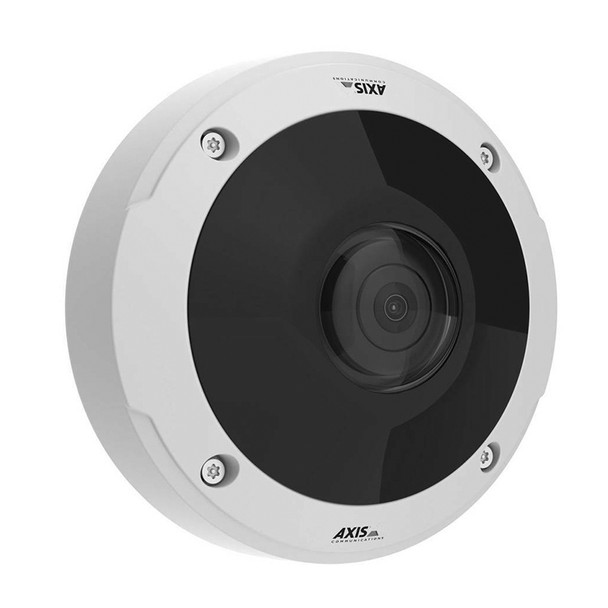

AXIS M3057-PLVE 6MP IR Outdoor Dome IP Security Camera 01177-001
Here, there, everywhere - anytime
Use AXIS M3057-PLVE indoors or outdoors for a wide variety of purposes anytime of the day or night. Thanks to OptimizedIR and a long list of features that spell, flexible. With the optional black skin cover you can repaint AXIS M3057-PLVE - easily - and it blends in anywhere. And count on the IK10 rating for protection against vandalism and the IP66 rating to keep the camera safe from dust and powerful blasts of water. Which means exposure to the elements is no problem.
You can stream the complete 360° overview. That way you can be sure that you record everything with no blind spots. And the video management software can use that one video stream to produce any dewarped views you’d like. Or you can choose to stream dewarped views such as panorama, quad, corner and corridor views directly from the camera. And you can digitally pan, tilt and zoom in on areas of interest in up to four areas simultaneously.


Sharp to the edges - in any light
AXIS M3057-PLVE is made to deliver sharp images, to the edges, in any light - or no light: OptimizedIR means this camera can “see″ in the dark - so there’s no need to turn on the lights at night. It’s equipped with Forensic WDR for visibility when there are both dark and light areas in the same scene. And AXIS M3057-PLVE has Lightfinder technology for life-like colors when the lighting is low.
Sharp images. Low bandwidth
AXIS M3057-PLVE includes Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest. Important details in these areas are preserved in full video quality, while other areas are more compressed, reducing storage and bandwidth by up to 50%. The result is high-quality video and significant savings.


Installation that’s as easy as 1,2,3
Installing and setting up AXIS M3057-PLVE is fast, simple and cost effective. AXIS M3057-PLVE is factory focused and ready to use, right out of the box.
AXIS M3057-PLVE also has I/O ports, so you can connect a sensor or detector to the camera’s digital input to trigger alarms or actions. Output ports can be connected to control devices or relays, for instance, to open/close doors or turn on/off lights upon alarm.
Key features:
- Flat, vandal-resistant indoor/outdoor design
- Complete 360° overview with outstanding sharpness
- Forensic WDR, Lightfinder and OptimizedIR
- Axis Zipstream technology
- 6 MP sensor
- 1/1.8″ progressive scan RGB CMOS
- Horizontal field of view: 185°
- 1.6mm Panoramic Lens
- HDMI output
- Support for microSD/microSDHC card
- AXIS Video Motion Detection, active tampering alarm
- OptimizedIR with with power-efficient, long-life 850 nm IR LEDs with adaptable illumination intensity
- Range of reach 20 m (66 ft) or more depending on scene
- IP66- and NEMA 4X-rated, IK10 impact-resistant casing
Additional Information
Manufacturer: |
AXIS |
Product Type: |
Cameras |
Warranty: |
3-year Manufacturer Warranty |
Technology: |
Network (IP) |
Color: |
White |
Environmental: |
Outdoor |
Night Vision Range (ft): |
66ft |
Compression: |
MPEG4 |
Compression: |
H.264 |
AXIS Technologies: |
Zip Stream |
AXIS Technologies: |
WDR Forensic Capture |
AXIS Technologies: |
OptimizedIR |
AXIS Technologies: |
Light Finder |
Field of View (Horizontal): |
185 |
Lens Size: |
1.6mm |
Lens Type: |
Fixed Lens |
Resolution: |
6MP |
Sensor Size: |
1/1.8" |
Sensor Type: |
CMOS |
Camera Style: |
Dome |
Key Features: |
ONVIF |
Key Features: |
Night Vision (IR) |
Key Features: |
HDMI Output |
Key Features: |
Motion Detection |
Key Features: |
NEMA 4X |
Key Features: |
Weatherproof |
Key Features: |
Vandal Proof |
Key Features: |
SD Card Storage Support |
Key Features: |
180-degree Panoramic View |
Key Features: |
360-degree Hemispheric View |
Key Features: |
True WDR (120dB) |
Vandal Proof: |
Yes |
SD Card Support: |
Yes |
Weatherproof: |
Yes |
Datasheet: |
|
Datasheet: |
|
User Manual: |
|
NDAA Compliant: |
Yes |
