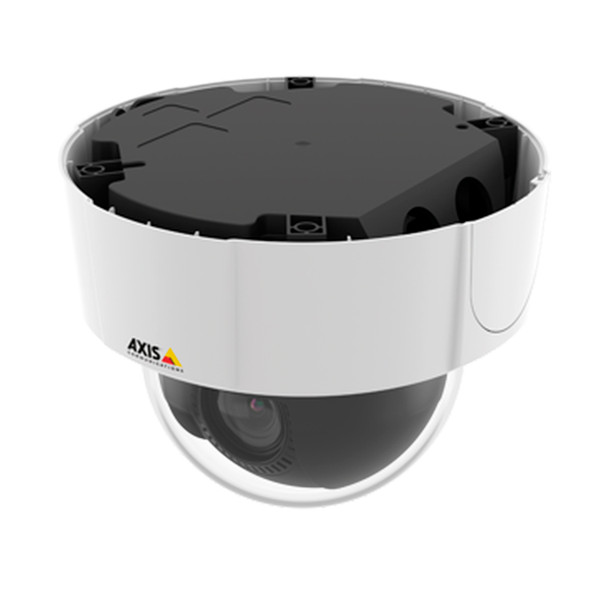

AXIS M5525-E 60Hz 2MP Outdoor PTZ IP Security Camera - 01146-001

Part Number: 01146-001
Write a Review
Replacement of: 0409-001
Replacement of: 0771-001
Replacement of: 0772-001
  • AXIS M5525-E 60Hz 2MP Outdoor PTZ IP Security Camera 01146-001
  • AXIS M5525-E 60Hz 2MP Outdoor PTZ IP Security Camera - 01146-001
  • AXIS M5525-E 60Hz 2MP Outdoor PTZ IP Security Camera - 01146-001
  • AXIS M5525-E 60Hz 2MP Outdoor PTZ IP Security Camera - 01146-001

Help me pick a security camera

🖥 Connect Your Axis Camera to YouTube

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Field of View (Horizontal) : 61.8°Field of View 6.7°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 4.7~47mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.8" Sensor
  • Protection Code : NEMA 4X
  • Color : White
  • Environmental : Indoor and Outdoor
  • Weatherproof : Yes
  • Sensor Size : 1/2.8"


AXIS M5525-E 60Hz 2MP Outdoor PTZ IP Security Camera - 01146-001

More for your money

AXIS M5525-E is a great deal. The affordably priced camera is packed with the kind of top-of-the-line features you'd normally expect in high end cameras. It's particularly suitable for stores, schools, building lobbies and other open areas, both indoors and out.

Don't miss a thing

HDTV 1080p resolution, 10x optical zoom, and continuous 360° pan that lets you easily follow moving objects. AXIS M5525-E provides both the zoomed-in detail and the broad overview you need to stay on top of what's happening on your premises. WDR - Forensic Capture ensures great detail when there are both bright and darker spots in a scene. The camera's outstanding light-sensitivity means high-quality video even when it is recording in near darkness.

Highly versatile

AXIS M5525-E is a versatile camera for indoor or outdoor use, compatible with all Axis PTZ mounts. It offers two-way audio and four digital I/O ports for integration with other equipment. And there are three scene profiles to choose from:

  • Forensic profile for capturing details in challenging conditions
  • Indoor profile for optimized colors in indoor lighting conditions
  • Outdoor profile for enhanced image appearance for outdoor surveillance

For each profile, the camera automatically optimizes exposure time, white balance, aperture, sharpness, contrast and noise to suit the specific scenario. The result is great image quality and cost-effective installation.

Sharp images. Low bandwidth.

AXIS M5525-E features Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest. These areas are compressed a bit less than other areas, preserving important details in full image quality, while reducing storage and bandwidth by up to 50%. The result is high-quality images and significant savings.

Key features:

  • 2MP
  • 1/2.8″ progressive scan CMOS
  • 4.7-47 mm, F1.6-3.0, Horizontal field of view: 61.8°-6.7°
  • 10x Optical Zoom
  • H.264 (MPEG-4 Part 10/AVC) - Baseline, Main and High Profiles Motion JPEG
  • Two-way, full duplex
  • Two-way audio and I/O
  • Continuous 360° pan
  • WDR - Forensic Capture
  • Operates in temperatures from -20 °C to 50 °C (-4 °F to 122 °F)
  • MicroSD Card Slot
  • Weatherproof IP66-, NEMA 4X-
  • Vandal Proof IK09-rated
  • ONViF

Package Includes: Conduit adapter 3/4″, smoked dome, adapter bayonette, Installation Guide, Windows decoder 1-user license

Buy 2 Years Warranty Extension

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Audio Capability:
Two-Way Audio
Camera Style:
Indoor and Outdoor
Field of View (Horizontal):
61.8 6.7
Key Features:
Wide Dynamic Range (WDR)
Lens Size:
Lens Type:
Motorized (Automatic Zoom) Lens
Max. FPS and Resolution:
30fps at 1080P
NDAA Compliant:
Optical Zoom:
10x Optical Zoom
Protection Code:
Sensor Size:
Sensor Type:
Special Technologies:
Zip Stream
Network (IP)
Vandal Proof:
3-year Manufacturer Warranty
