Description

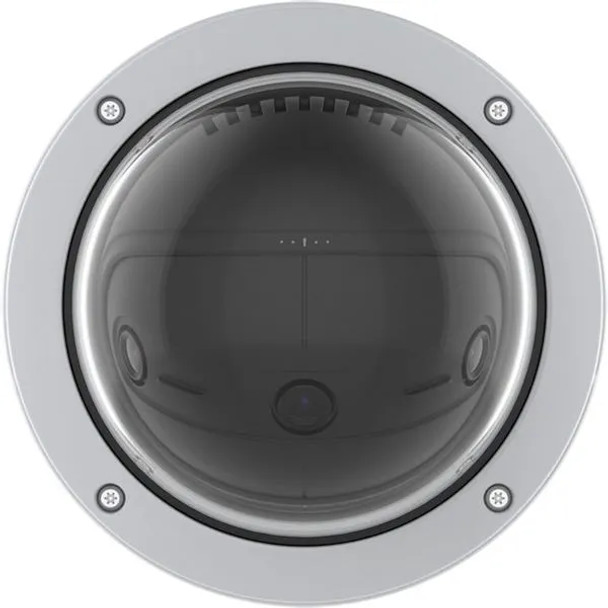

AXIS P3818-PVE 13MP Outdoor Multi-sensor IP Security Camera - 02060-001
AXIS P3818-PVE delivers a 180º panoramic overview of extensive areas with ultra-high resolution images and incredible details up to 30 fps. With 13 MP resolution and seamless stitching of all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. Including a variety of mounting options, it’s also possible to mount two cameras back-to-back for a complete 360° overview, using AXIS T94V01C Dual Camera Mount. Featuring edge-to-edge technology, it’s easy to add support for audio enabling you to listen in to transactions or incidents. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.
Key Features:
- 13 MP multisensor with seamless stitching
- 180° horizontal, 90° vertical coverage
- Seamless pan/tilt/roll
- AXIS Edge Vault
- Built-in cybersecurity features
Downloads
Datasheet
AXIS-02060-001-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
P3818-PVE
|
|
Angle of View:
|
180 Degree
|
|
Aperture:
|
F2.0
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
LPCM
AAC-LC
G.711
PCM
G.726
ADPCM
Opus
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Multi-sensor
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
Open-ended API
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
195 x 170 mm (7.6 x 6.6 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Spanish
German
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
3.2mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
Poly-carbonate (PC)
|
|
Max Power Consumption:
|
11 Watts
|
|
Max. FPS and Resolution:
|
30fps at 5120 x 2560
|
|
Minimum Illumination (B/W):
|
0.05 Lux
|
|
Minimum Illumination (Color):
|
0.16 Lux
|
|
Mounting:
|
Wall Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 (100/1000 Base-T)
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
|
|
Processor (CPU):
|
ARTPEC-7 (x2)
|
|
Product Series:
|
AXIS P38 Series
|
|
Protection Code:
|
IP67
IK10
NEMA 4X
|
|
RAM:
|
2GB
|
|
Resolution:
|
13.1MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/25-1/50000s
|
|
Special Technologies:
|
AXIS Edge Vault
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
