Description

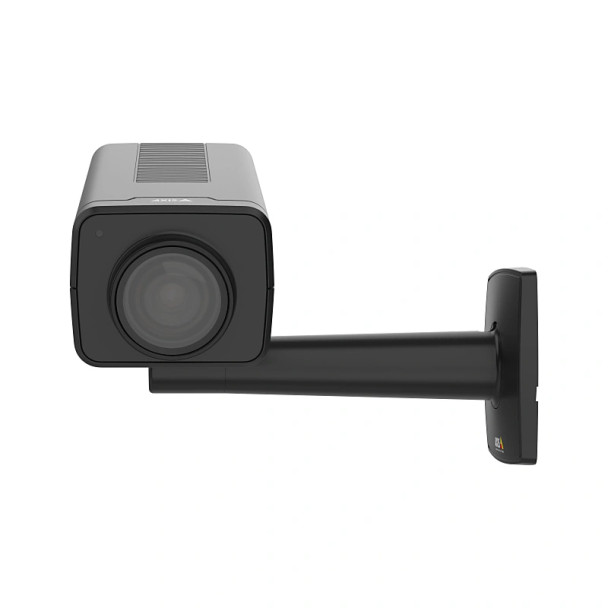

AXIS Q1715 2.1MP Indoor Bullet IP Security Camera with Deep Learning - 02220-001
AXIS Q1715 delivers HDTV 1080p at 60 fps and 21x optical zoom for all the details. With a deep learning processing unit, it’s possible to take advantage of intelligent tailor-made applications based on deep learning on the edge. It comes with AXIS Object Analytics for highly nuanced object classification and reliable detection with fewer false positives. And, it provides analytics metadata based on deep learning on the edge. Lightweight in design, it’s easy to install in accessory housings and casings. It offerssupport for 2-way audio and supervised I/O. Furthermore, it features built-in cybersecurity features to prevent unauthorized access and safeguard your system.
Key Features:
- 1080p at 60 fps with 21x zoom
- Support for analytics with deep learning
- Granular object classification
- Ideal for accessory housings and casings
- HDMI and HD-SDI output
High performance
AXIS Q1715 features a deep learning processing unit (DPLU), enabling advanced features and powerful analytics based on deep learning on the edge. AXIS Object Analytics offers highly nuanced object classification and reliable detection with fewer false positives. Additionally, Axis Edge Vault ensures secure storage of all cryptographic keys and certificates and protects your Axis device ID, simplifying the authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM), that is FIPS 140-2 Security Level 2 certified.
More options
This lightweight block camera can be easily built into accessory housings and casings. It includes a serial port for controlling AXIS T99A10 Positioning Unit or pan-tilt motors. Plus, HDMI and HD-SDI outputs let you display live video on a public viewing monitor and you can connect to most video equipment. Thanks to I2C, it’s possible to control IR-illumination when mounted in optional AXIS TQ1809-LE Housing T92G. It even comes with supervised inputs to notify you if the connection is cut. And, it can be powered with DC power and PoE. Even if there is a power outage, redundant DC power ensures a reliable power supply to safeguard your data.
The perfect image
AXIS Q1715 delivers HDTV 1080p at 60 fps and 21x optical zoom for all the details. It ensures the required pixel density and highest image quality for performing analytics. Thanks to Lightfinder 2.0, it captures images with more realistic and saturated colors and sharper images of moving objects. And, Axis Forensic WDR ensures clarity even when there’s both dark and light areas in the scene. It offers electronic image stabilization (EIS) for stable video despite vibration. Furthermore, with scene profiles and auto-rotate functionality, it ensures optimal coverage and always-great image quality.
Downloads
Compatible products
Additional Information
Alternative SKUs:
|
PDN59U225HI
|
Aperture:
|
F1.6
F4.5
|
Audio Capability:
|
Two-Way Audio
|
Audio Compression:
|
AES3
LPCM
AAC-LC
G.711
PCM
G.726
ADPCM
Opus
|
Audio Input:
|
1x 3.5mm
|
Audio Output:
|
1x 3.5mm
|
Audio Support:
|
External Microphone
|
Built-in Features:
|
Built-in Analytics
|
Camera Style:
|
Box
|
Color:
|
Black
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
Open-ended API
|
Compliance:
|
NDAA Compliant
|
Compression:
|
H.264
H.265
MJPEG
|
Connection Type:
|
Wired
|
Day/Night:
|
ICR (True Day/Night)
|
Dimensions:
|
66 x 80 x 195 mm (2.6 x 3.1 x 7.7 in)
|
Environmental:
|
Indoor
|
Field of View (Horizontal):
|
3.6
76
|
Image Enhancements:
|
Electronic Image Stabilization (EIS)
|
Iris:
|
P-iris
|
Languages:
|
English
|
Lens Size:
|
4~84.6mm
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
Material:
|
Aluminum
Plastic
|
Max Power Consumption:
|
12 Watts
|
Max. FPS and Resolution:
|
60fps at 1080P
|
Minimum Illumination (B/W):
|
0.02 lux
|
Minimum Illumination (Color):
|
0.1 Lux
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
Optical Zoom:
|
21x Optical Zoom
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
10 to 28 VDC
|
Processor (CPU):
|
ARTPEC-7
|
Product Series:
|
AXIS Q17 Series
|
RAM:
|
2GB
|
Resolution:
|
2.1MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Serial Interface:
|
1x RS485
1x RS422
|
Shutter Speed:
|
2-1/66500s
|
Special Technologies:
|
AXIS Object Analytics
AXIS Lightfinder 2.0
|
Specialized Camera Feature:
|
Deep-learning
|
Technology:
|
Network (IP)
|
Video Output:
|
1x HDMI type A
1x BNC
|
Warranty:
|
5-year Manufacturer Warranty
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
