AXIS Q1765-LE PT Mount 2MP IR Outdoor Bullet IP Security Camera 0644-001 - 18x optical zoom, Corridor View

Part Number: 0644-001
Write a Review
Replacement: There is no direct replacement. Ask a representative.
  • AXIS Q1765-LE PT Mount 2MP IR Outdoor Bullet IP Security Camera 0644-001 - 18x optical zoom, Corridor View
  • AXIS Q1765-LE-PT Mount
  • 3 Years Limited Manufacturer Warranty

Help me pick a security camera

🖥 Connect Your Axis Camera to YouTube

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.264, MJPEG,
  • Field of View (Horizontal) : 4°Field of View 59°Field of View
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 4.7~84.6mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.9" Sensor
  • Color : White
  • Environmental : Outdoor
  • Weatherproof : Yes
  • Sensor Size : 1/2.9"

Customers Also Viewed


AXIS Q1765-LE PT Mount 2MP IR Outdoor Bullet IP Security Camera 0644-001

All features integrated

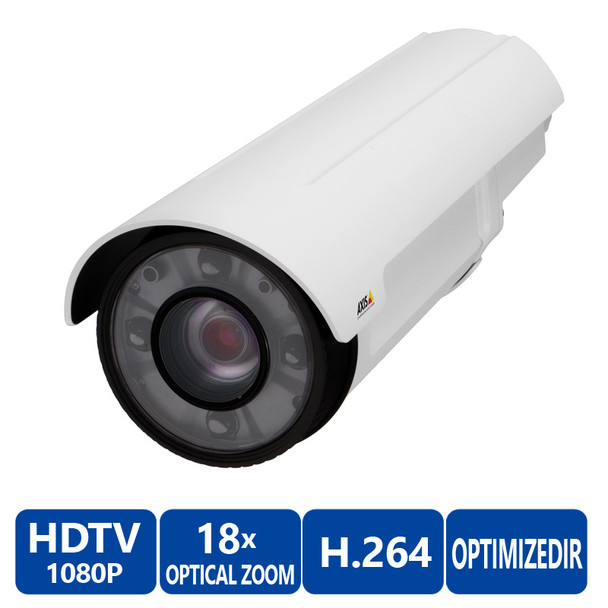

AXIS Q1765-LE PT Mount Network Camera is a slim, outdoor-ready bullet camera with 18x optical zoom and auto-focus. It delivers SMPTE-compliant HDTV 1080p video in multiple, individually configurable H.264 and Motion JPEG video streams. Furthermore, the camera features AXIS OptimizedIR with four auto-adjusting LEDs that are highly power-efficient.
AXIS Q1765-LE PT Mount is used together with a pan-tilt motor (motor not included) to cover great distances providing both wide overviews as well as detailed images for identification purposes.

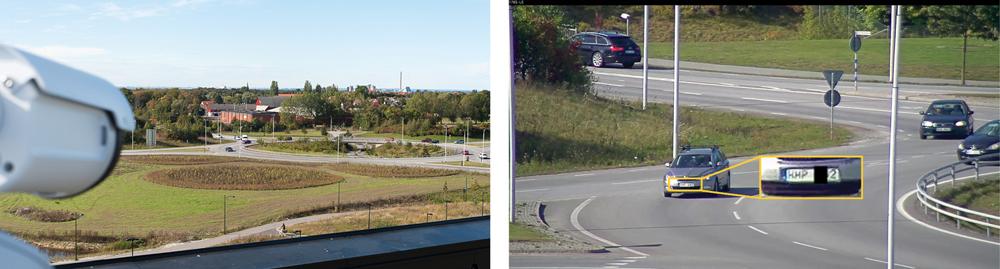

The image to the left is taken with a digital single-lens reflex camera with a 50 mm lens - thus representing the view of the human eye. The image to the right is a snapshot from AXIS Q1765-LE in 18x zoomed-in view where the license plate of a car 275 m (900 ft.) away can be read.

Convenient installation

AXIS Q1765-LE PT Mount is very convenient to install thanks to its light weight, one-cable installation, readily directed IR, support for standard Power over Ethernet and 24 VDC/AC input. It has a serial port for RS422/485 communication with pan-tilt motors that support Pelco D protocol.

Key features of AXIS Q1765-LE-PT:

  • 2MP
  • Optical Zoom: AXIS Q1765-LE-PT camera offers 18x optical zoom with auto focus.
  • 1/2.9" progressive scan RGB CMOS
  • HD Camera: Motion JPEG and H.264 format.
  • Ethernet: Power over Ethernet (IEEE 802.3af), wiping out the requirement for power links and reduction in installation costs.
  • Easy Installation: comes with a mounting bracket that can be taped or screwed on to the back of a surface for quick and easy flush mount installation.
  • AXIS' Arctic Temperature Control: Arctic Temperature Control ensures camera start- up, even at -40 °C (-40°F).
  • Quality of Service (QoS): Supports Quality of Service (QoS) which helps secure the important bandwidth for streaming video and command over a network
  • Weatherproof IP66, NEMA4X
  • Support for microSD/microSDHC/microSDXC card
  • H.264 (MPEG-4 Part 10/AVC) Mainline and Baseline Profiles Motion JPEG
  • WDR

This product is also associated with:
Arctic Security Cameras

View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Camera Style:
Field of View (Horizontal):
4 59
Key Features:
Wide Dynamic Range (WDR) ONVIF Night Vision (IR) Mobile App Support (IOS, Android)
Lens Size:
Lens Type:
Varifocal (Manual Zoom) Lens
Optical Zoom:
18x Optical Zoom
SD Card Support:
Sensor Size:
Sensor Type:
Special Technologies:
Wide Dynamic Range AXIS OptimizedIR Corridor Format
Network (IP)
Vandal Proof:
3-year Manufacturer Warranty
