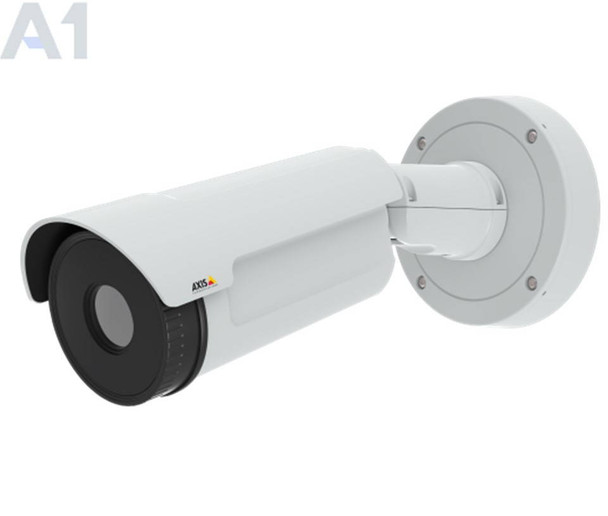

Axis Q1941-E-19mm Thermal IP Security Camera
The Axis Q1941-E-19mm is an affordable thermal bullet camera. With a 19mm lens, it captures at a 384x288 resolution, using thermal imaging to easily detect virtually anything moving into its field of view. Electronic Image Stabilization keeps this camera steady and smoothly recording against vibrations and other disturbances. Zipsteram technology helps lower bandwidth and storage requirements. A powerful processor gives the camera the ability to run a variety of analytics via Axis's Camera Application Platform (ACAP) or from a variety of third party applications.
Key Features:
- 19mm Lens
- 19.4° viewa , F1.23
- 384x288 can be scaled up to 768x576
- 8.3 fps and 30 fps
- Zipstream Technology
- 2-way Audio
- Microphone
- Power on-board Processor
- Analytics through ACAP
- Motion Detection
- Audio Detection
- Shock Detection
- IEEE 802.1Xb
- Thermal Imaging
- Arctic or Extreme Temperature Resistant
- -40°C to 60 °C (32 °F to 140 °F)
- Weatherproof
Included accessories: Installation Guide, Windows decoder 1-user license, AXIS Motion Detection 3, Torx T20 screw driver, Wall and ceiling mount bracket, Terminal block connector
Warranty: Axis 3-year warranty
Detection Ranges
| Focal length | Viewing angle | Detection | ||||
|---|---|---|---|---|---|---|
| mm | Horizontal | Human: 1.8 x 0.5 m |
Vehicle: 2.3 x 2.3 m |
|||
| m | yards | m | yards | |||
| Detection (1.5 pixels on target) | 7 | 55° | 200 | 219 | 600 | 656 |
| 13 | 28° | 400 | 437 | 1200 | 1312 | |
| 19 | 19.4° | 580 | 634 | 1740 | 1903 | |
| 35 | 10.7° | 1000 | 1094 | 3150 | 3445 | |
| 60 | 6.2° | 1800 | 1968 | 5400 | 5906 | |
| Recognition (6 pixels on target) | 7 | 55° | 50 | 55 | 150 | 164 |
| 13 | 28° | 100 | 109 | 300 | 328 | |
| 19 | 19.4° | 140 | 153 | 435 | 476 | |
| 35 | 10.7° | 250 | 273 | 785 | 858 | |
| 60 | 6.2° | 450 | 492 | 1360 | 1487 | |
| Identification (12 pixels on target) | 7 | 55° | 25 | 27 | 75 | 82 |
| 13 | 28° | 50 | 55 | 150 | 164 | |
| 19 | 19.4° | 70 | 77 | 215 | 235 | |
| 35 | 10.7° | 125 | 136 | 390 | 427 | |
| 60 | 6.2° | 225 | 246 | 680 | 744 | |
The detection ranges are calculated with Johnson's criteria and vary in different weather conditions.
Click for other lens options: Security Camera Lenses
Downloads
Compatible products
Additional Information
|
Alternative SKUs:
|
Q1941-E 19mm
|
|
Analytics:
|
Motion Detection
Audio Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Electronic Image Stabilization (EIS)
|
|
Lens Size:
|
19mm
|
|
Lens Type:
|
Fixed Lens
|
|
Product Series:
|
AXIS Q19 Series
|
|
Resolution:
|
384 x 288
|
|
Sensor Type:
|
Thermal Sensor
|
|
Special Technologies:
|
AXIS Zipstream
|
|
Specialized Camera Feature:
|
Thermal
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
