Description

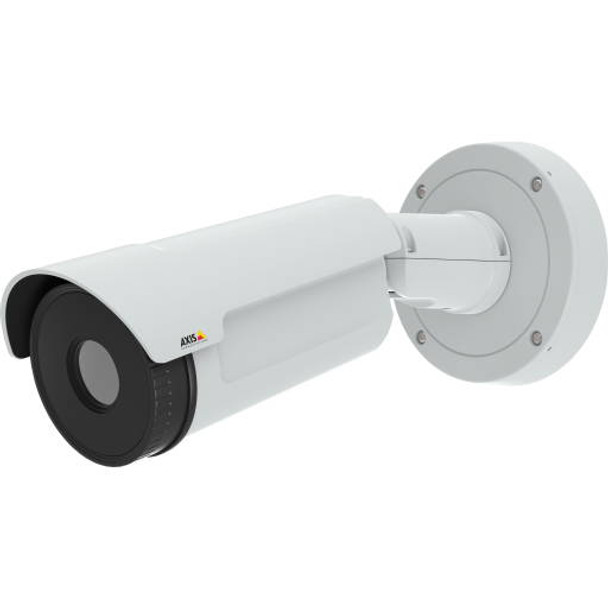

AXIS Q1941-E 7mm Thermal Bullet IP Security Camera with Built-in Microphone
Powerful video analytics of live or recorded video
Thanks to its powerful processor, AXIS Q1941-E has high capacity for running video analytics via AXIS Camera Application Platform (ACAP) and can use a wide range of third party applications. The camera also offers a memory card slot for storing recordings locally.
Reliable thermal detection with low rate of false alarms
Since thermal cameras are less sensitive to problems with light conditions and shadows, they can achieve higher accuracy and less false alarms than conventional cameras in most applications. Thanks to a superb thermal image contrast, AXIS Q1941-E reliably detects and gives a fast verification of the situation, e.g. in perimeter surveillance. With five lens alternatives (7 mm, 13mm, 19 mm, 35 mm and 60 mm), the network camera can optimize detection performance to meet most application requirements.
Smooth video and low storage requirements
A thermal camera is mainly used for video analytics and detection in those restricted areas where no one should trespass or walk around. Based on these premises, the video shows no motion at all, unless an intruder is detected. Supporting Axis' Zipstream technology, AXIS Q1941-E filters out those areas with no motion, and it can focus on the parts of the image that are moving. This significantly reduces the bandwidth and storage required. Moreover, the Electronic Image Stabilization (EIS) helps the camera to provide a smooth live viewing when it is mounted on instable places and vibration can be perceived as an issue.
Key Features:
- 7mm Lens
- 55° view F1.2
- 384x288 can be scaled up to 768x576
- 8.3 fps and 30 fps
- Zipstream Technology
- 2-way Audio
- Microphone
- Power on-board Processor
- Analytics through ACAP
- Motion Detection
- Audio Detection
- Shock Detection
- IEEE 802.1Xb
- Thermal Imaging
- Arctic or Extreme Temperature Resistant
- -40°C to 60 °C (32 °F to 140 °F)
- Weatherproof
Included accessories: Installation Guide, Windows decoder 1-user license, AXIS Motion Detection 3, Torx T20 screw driver, Wall and ceiling mount bracket, Terminal block connector
Warranty: Axis 3-year warranty
Detection Ranges
| Focal length | Viewing angle | Detection | ||||
|---|---|---|---|---|---|---|
| mm | Horizontal | Human: 1.8 x 0.5 m |
Vehicle: 2.3 x 2.3 m |
|||
| m | yards | m | yards | |||
| Detection (1.5 pixels on target) | 7 | 55° | 200 | 219 | 600 | 656 |
| 13 | 28° | 400 | 437 | 1200 | 1312 | |
| 19 | 19.4° | 580 | 634 | 1740 | 1903 | |
| 35 | 10.7° | 1000 | 1094 | 3150 | 3445 | |
| 60 | 6.2° | 1800 | 1968 | 5400 | 5906 | |
| Recognition (6 pixels on target) | 7 | 55° | 50 | 55 | 150 | 164 |
| 13 | 28° | 100 | 109 | 300 | 328 | |
| 19 | 19.4° | 140 | 153 | 435 | 476 | |
| 35 | 10.7° | 250 | 273 | 785 | 858 | |
| 60 | 6.2° | 450 | 492 | 1360 | 1487 | |
| Identification (12 pixels on target) | 7 | 55° | 25 | 27 | 75 | 82 |
| 13 | 28° | 50 | 55 | 150 | 164 | |
| 19 | 19.4° | 70 | 77 | 215 | 235 | |
| 35 | 10.7° | 125 | 136 | 390 | 427 | |
| 60 | 6.2° | 225 | 246 | 680 | 744 | |
The detection ranges are calculated with Johnson's criteria and vary in different weather conditions.
Click for other lens options: Security Camera Lenses
Downloads
Compatible products
Additional Information
|
Alternative SKUs:
|
Q1941-E 7mm
|
|
Analytics:
|
Motion Detection
Audio Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Electronic Image Stabilization (EIS)
|
|
Lens Size:
|
7mm
|
|
Lens Type:
|
Fixed Lens
|
|
Product Series:
|
AXIS Q19 Series
|
|
Resolution:
|
384 x 288
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Type:
|
Thermal Sensor
|
|
Special Technologies:
|
AXIS Zipstream
|
|
Specialized Camera Feature:
|
Thermal
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
