Description

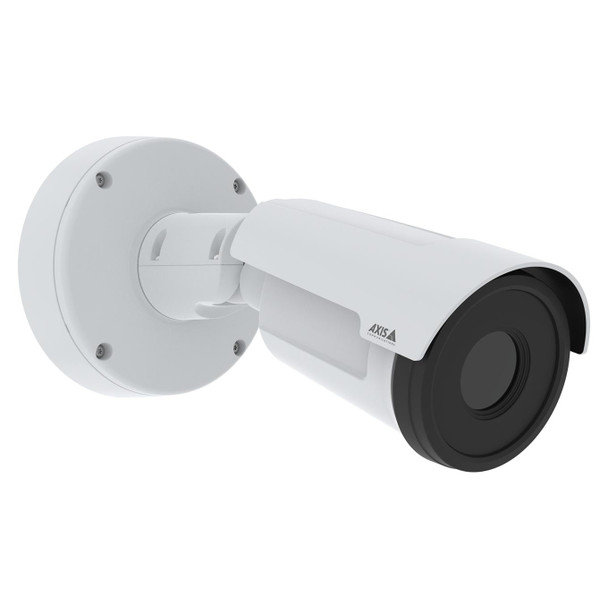

AXIS Q1961-TE 768x576 Outdoor Bullet Thermometric IP Security Camera, 7 mm 30 fps - 02174-001
AXIS Q1961-TE lets you remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F)*. So, you don’t need to be onsite to know if your equipment is getting close to overheating - you’ll receive a notification if the temperature passes a set threshold, or if it increases or decreases too rapidly. This allows you time to act to avoid unwanted downtime and it enables predictive maintenance planning. AXIS Q1961-TE supports up to 10 configurable polygonal detection areas, making it possible to monitor areas for specific temperature levels. With spot temperature reading, you can click on the image and see the exact temperature in the specific area. Furthermore, through metadata, you’ll have access to temperature statistics.
Key Features:
- Polygonal temperature monitoring areas
- Early fire detection analytics
- Spot temperature reading
- Built-in cybersecurity features
- IP66-, IP67-, IK10- and NEMA 4X -rated
Detect early signs of fire
In addition to offering powerful analytics capabilities, AXIS Q1961-TE comes with early fire detection preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. With smart filtering, it can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles, so you’ll receive fewer false notifications.
Downloads
Videos
View AllClose
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Alternative SKUs:
|
Q1961-TE
|
|
Audio Capability:
|
One-way Audio
|
|
Audio Compression:
|
LPCM
AAC-LC
G.711
PCM
ADPCM
G.726
Opus
|
|
Audio Input:
|
1x 3.5mm
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
FCC
RoHS
CSA
UL Listed
cUL
BIS
UKCA
CE
KC
EAC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
ACAP (AXIS Camera Application Program)
VAPIX
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
272 x 132 mm (10.7 x 5.2 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Languages:
|
English
German
French
Spanish
Italian
Russian
Chinese
Traditional Chinese
Japanese
Korean
Portuguese
Polish
|
|
Material:
|
Poly-carbonate
Aluminum
Germanium
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Max. FPS and Resolution:
|
30fps at 768 x 576
|
|
Mounting:
|
Corner Mount
Wall Mount
Pole Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Pixel Size (μm):
|
17
|
|
Power Supply:
|
10 to 28 VDC
PoE (IEEE 802.3af)
PoE+ (IEEE802.3at)
|
|
Processor (CPU):
|
ARTPEC-8
|
|
Product Series:
|
AXIS Q19 Series
|
|
Protection Code:
|
IP66
IP67
NEMA 4X
IK10
|
|
RAM:
|
2GB
|
|
Resolution:
|
768 x 576 (D1)
|
|
SD Card Support:
|
SD Card Supported
|
|
Special Technologies:
|
AXIS Fence Guard
AXIS Motion Guard
AXIS Video Motion Detection
AXIS Loitering Guard
AXIS Speed Monitor
AXIS Zipstream
AXIS Edge Vault
Electronic Image Stabilization
|
|
Specialized Camera Feature:
|
Thermometric Camera
|
|
Spectral Range (μm):
|
8 to 14
|
|
Technology:
|
Network (IP)
|
|
Temperature Accuracy:
|
Below 120 °C (248 °F): ±5 °C (±9 °F)
Above 120 °C (248 °F): ±15%
|
|
Temperature Range:
|
-40 °C to 350 °C (-40 °F to 662 °F)
|
|
Thermal Aperture:
|
F1.0
|
|
Thermal Horizontal FOV:
|
55
|
|
Thermal Image Sensor:
|
Uncooled Micro Bolometer
|
|
Thermal Lens Size:
|
7mm
|
|
Thermal Resolution:
|
384 x 288
|
|
Thermal Sensitivity:
|
NETD <40 mK
|
|
Warranty:
|
5-year Manufacturer Warranty
|
