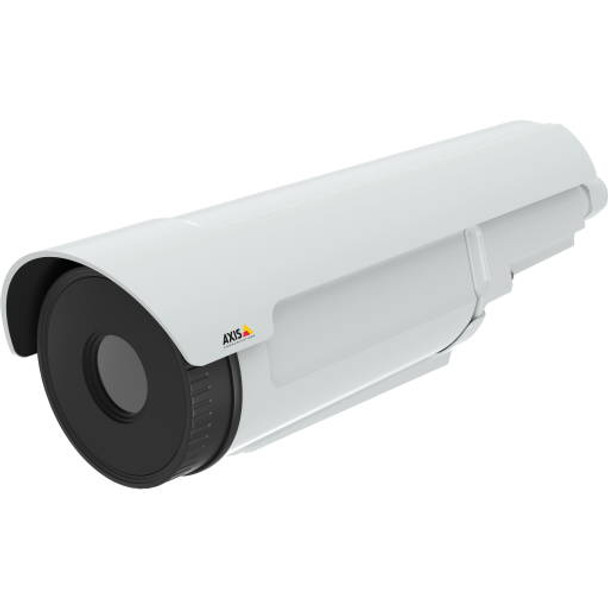

AXIS Q2901-E PT-19mm Pan-Tilt Thermal Bullet IP Security Camera - 19mm Lens

Brand: AXIS
Part Number: 0648-001
Write a Review
  • Axis Q2901-E PT Temperature Measurement and Alarm Camera
  • Axis Q2901-E PT-19mm
  • Axis Q2901-E PT Temperature Measurement and Alarm Camera
  • Axis Q2901-E PT Temperature Measurement and Alarm Camera
  • 3 Years Limited Manufacturer Warranty

Help me pick a security camera

🖥 Connect Your Axis Camera to YouTube

Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : MJPEG, H.264,
  • Field of View (Horizontal) : 17°Field of View
  • Lens Type : Fixed Lens
  • Lens Size : 19mm Lens
  • Sensor Type : Thermal Sensor
  • Protection Code : NEMA 4X
  • Color : White
  • Environmental : Outdoor


AXIS Q2901-E PT-19mm Pan-Tilt Thermal Bullet IP Security Camera - 19mm Lens

The Axis Q2901-E PT-19mm is an outdoor-ready bullet camera that delivers thermal imaging in 336x256 resolution. This camera can be used for thermography, measuring temperatures to support up to six temperature alarm zones that can then be used to trigger an alarm. Alarm functionality comes in two forms: if the temperature goes beyond a set limit, or if it increases too rapidly. Additionally, spot temperature functionality is used to view the temperature of a particular area. Isothermal palettes highlight temperature-spans in the image, making it easier to visualize hot spots to identify overheated equipment or areas. This camera is also weatherproof with an IP67 protection rating. This camera comes on a motorized pan-tilt mount that utilizes presets.

Key Features:

  • 19mm Lens
  • F 1.25, 17° viewa , min. focus distance: 9.5 m (354.3 in)
  • Obj. Temp Range: -40 °C to 550 °C (-40 °F to 1022 °F)
  • Temperature Accuracy:
  • Below 100 °C (212 °F): +/- 5 °C (+/-9 °F) accuracy
  • Below 150 °C (302 °F): +/- 5% accuracy
  • Above 150 °C (302 °F): +/- 20% accuracy
  • IEEE 802.1Xc
  • Motion Detection
  • Tampering Alarm
  • Pan-Tilt via Presets
  • Weatherproof

Included accessories: Installation Guide, Windows decoder 1-user license, AVHS Authentication key, AXIS Video Motion Detection 3, AXIS Connector A 2-pin 5.08 Straight Torx T20 screw driver, PT Mount Bracket

Warranty: Axis 3-year warranty

Click here to see Axis Q2901-E PT 9mm Fixed Lens option.

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at with any design questions.

Additional Information

Alternative SKUs:
Camera Style:
Field of View (Horizontal):
Key Features:
Lens Size:
Lens Type:
Fixed Lens
NDAA Compliance:
NDAA Compliant
Product Series:
AXIS Q29 Series
Protection Code:
336 x 252
SD Card Support:
SD Card Supported
Sensor Type:
Thermal Sensor
Special Technologies:
AXIS Video Motion Detection
Specialized Camera Feature:
Network (IP)
3-year Manufacturer Warranty
