Description

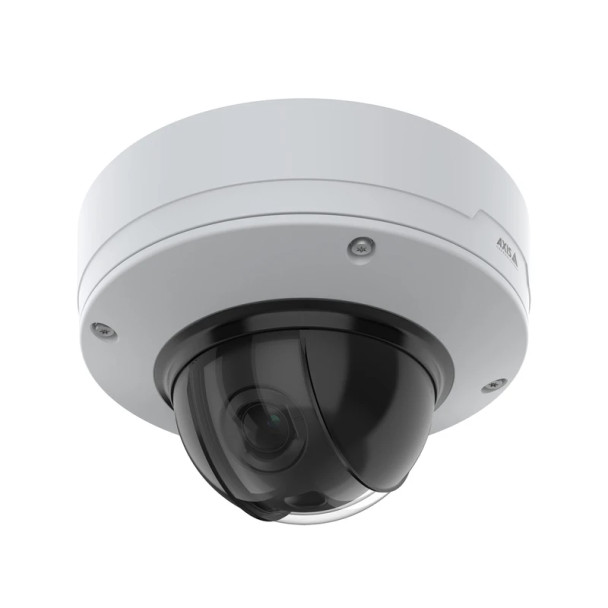

AXIS Q3536-LVE 29mm 4MP Outdoor Dome IP Security Camera with Deep Learning - 02224-001
With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).
Key Features:
- Outstanding image quality in 4 MP
- Support for analytics with deep learning
- IR-shielded dome to prevent reflections
- Built-in cybersecurity features
- Available with wide or tele lens
Downloads
Datasheet
AXIS-02224-001-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alternative SKUs:
|
Q3536-LVE 29mm
|
|
Aperture:
|
F1.7
|
|
Audio Capability:
|
Two-way Audio
|
|
Audio Compression:
|
LPCM
AAC-LC
G.711
G.726
ADPCM
Opus
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Audio Support:
|
External Microphone
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile M
ONVIF Profile S
ONVIF Profile T
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
124 x 184 mm (4.9 x 7.3 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
15
40
|
|
IR Corrected:
|
IR Corrected
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
11.3~29.4mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Material:
|
Poly-carbonate PC
Aluminum
|
|
Max Power Consumption:
|
9 Watts
23 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (B/W):
|
0 Lux at 50 IRE F1.7
|
|
Minimum Illumination (Color):
|
0.08 Lux at 50 IRE F1.7
|
|
Mounting:
|
Wall Mount
Pole Mount
Ceiling Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Night Vision Range (ft):
|
200
|
|
Optical Zoom:
|
2.6x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
AXIS Q35 Series
|
|
Protection Code:
|
IP6K9K
IP66
NEMA 4X
IK10 Plus
|
|
RAM:
|
2GB
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/91000-1s
|
|
Special Technologies:
|
OptimizedIR
AXIS Object Analytics
WDR Forensic Capture
AXIS Edge Vault
Lightfinder 2.0
Corridor Format
|
|
Specialized Camera Feature:
|
Extreme Weather Temperatures
Deep-learning
|
|
Storage Humidity:
|
5% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 65 °C (-40 °F to 149 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
