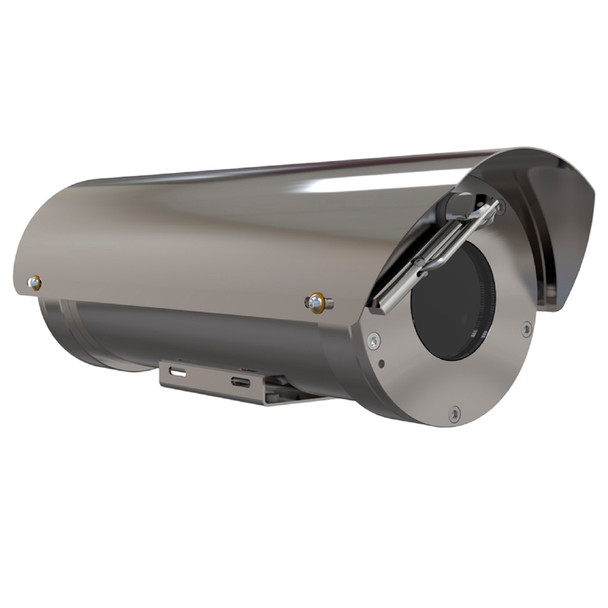

AXIS XF40-Q1765 UL -58F (-50C) 2MP Explosion-Protected Fixed IP Security Camera 01111-001

Part Number: 01111-001
Write a Review
  • AXIS XF40-Q1765 UL -58F (-50C) 2MP Explosion-Protected Fixed IP Security Camera 01111-001
  • 3-years-warranty-gold
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Compression : H.264, MJPEG,
  • Field of View (Horizontal) : 59°Field of View 4°Field of View
  • Max. FPS and Resolution : 30fps at 1080P
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 4.7~84.6mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/2.9" Sensor
  • Environmental : Outdoor
  • Weatherproof : Yes
  • Sensor Size : 1/2.9"


AXIS XF40-Q1765 UL -58F (-50C) 2MP Explosion-Protected Fixed IP Security Camera 01111-001

XF40-Q1765 Explosion-Protected Network Camera comprises different variants, certified for hazardous areas according to different regulations valid in different countries. Depending on the variants, the camera features may differ. For instance the UL certified model, XF40-Q1765 -50 C UL, offers three 3/4" NPT conduit entries, while XF40-Q1765 and XF40-Q1765 -60 C models offer three M20 conduit entries. All versions of XF40-Q1765 have a 24 V AC power input. For more information, check the product specific datasheet.

Combining Technologies

XF40-Q1765 Explosion-Protected Network Camera is an AXIS Q1765-LE Camera (excl. IR LEDs and SD card, incl. wiper and support for washer) mounted inside an explosion-protected stainless steel housing. The camera provides superb image quality and color fidelity, and offers full HDTV 1080p resolution at 25/30 fps. With 18x optical zoom and autofocus, the camera is ideally suited for remote monitoring situations common in hazardous areas. The camera features an electropolished 316L stainless steel housing certified for hazardous areas according to, among others, ATEX, IECEx and UL.

Critical Infrastructure

XF40-Q1765 is ideally suited for video surveillance monitoring in hazardous areas in critical infrastructure such as onshore, offshore and marine environments in the oil and gas industry. In addition, typical application areas are also dusty environments in other industries, for example, paper and textile industries, and grain handling.

Wide Temperature Range

The outdoor-ready XF40-Q1765 comes in two product versions, depending on the required operating temperature range: either up to +60 ºC (+140 ºF) or down to -60 ºC (-76 ºF). A removable weather shield is supplied with the camera.

Flexible Integration and Remote Accessibility

XF40-Q1765 provides a high level of flexible integration possibilities with other equipment, such as access control, illumination and audio. It offers remote accessibility, using any existing IP-based networks. XF40-Q1765 for hazardous areas is a complement to Axis' wide range of network cameras that can be used in safe areas.

Key Features of AXIS XF40-Q1765 UL -58F (-50C) 01111-001

  • Certified for hazardous areas by Oxalis Group Ltd. by Eaton
  • Electro-polished 316L stainless steel housing
  • Full HDTV 1080p resolution
  • 18x zoom and autofocus
  • Two product versions, depending on temperature range needed
  • Wide Dynamic Range
  • UL -58F (-50C) certification


View AllClose

Additional Information

Camera Style:
Field of View (Horizontal):
59 4
Key Features:
ONVIF Wide Dynamic Range (WDR)
Lens Size:
Lens Type:
Varifocal (Manual Zoom) Lens
Max. FPS and Resolution:
30fps at 1080P
NDAA Compliant:
Optical Zoom:
18x Optical Zoom
SD Card Support:
Sensor Size:
Sensor Type:
Special Technologies:
WDR Forensic Capture
Specialized Camera Feature:
Network (IP)
Vandal Proof:
3-year Manufacturer Warranty
