Description

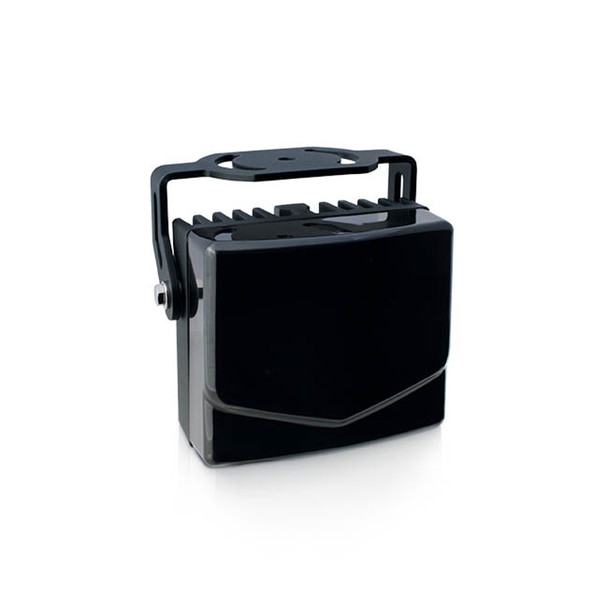

Axton AT-11Y-S.11YS18150 Illuminator, 150-degree, 11W, Helios Series for solar, mobile or automotive applications
Helios series; Helios Battery, Solar, Off-Grid Powered IR & White Illuminators
HELIOS low-voltage (9-28V) IR illuminators are specifically designed for use with battery-powered systems. They are ideally suited for solar, mobile or automotive applications where standard 12V or 24V batteries are used. Choose from multiple light coverage, angle options. Rugged, outdoor IP67 rated, vandal resistant construction. Equipped with I/O ports for seamless camera sync, and an automatic DAY/NIGHT switch for easy integration.
Key Features:
- Helios Series,
- Wavelength: 850nm Infrared
- Energy Efficient – Advanced LED Technology
- Outdoor IP67 Rated
- Illumination Range: up to 80ft. (150˚)
- Six Angle/Coverage Options: 150˚,
- Power Consumption: 11 Watts
- Input Voltage: 9 to 28 VDC
- I/O Ports for Seamless Integration
- Automatic Day/Night Switch
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Pan/Tilt U Bracket Included
- Operating Temperature: -50 °C to 60 °C (-8 °F to 140 °F)

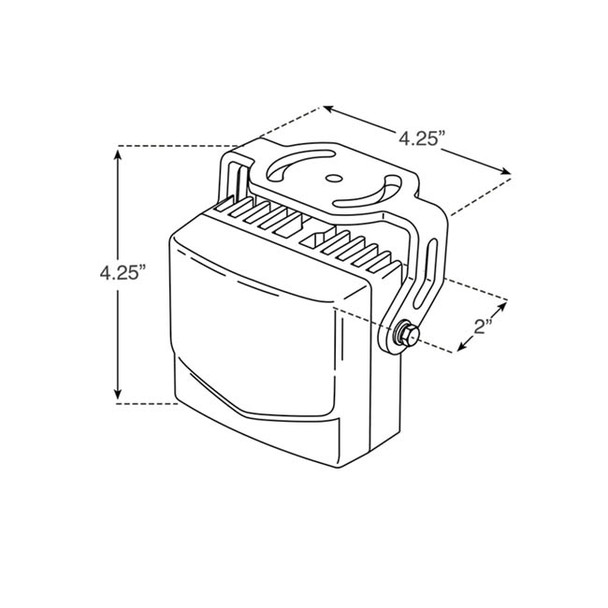

- Dimensions: 108 x 51 x 108 mm (4.25 x 2 x 4.25 in)
Downloads
Datasheet
Axton-AT-11Y-S.11YS18150-Datasheet-A1
Additional Information
|
Accessory Type:
|
Infrared Illuminators
|
|
Angle (degree):
|
150
|
|
Color:
|
Black
|
|
Dimensions:
|
108 x 51 x 108 mm (4.25 x 2 x 4.25 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Input Voltage:
|
9VDC
28VDC
|
|
Made in:
|
United States (USA)
|
|
Max Power Consumption:
|
11 Watts
|
|
Night Vision Range (ft):
|
80
|
|
Protection Code:
|
IP67
|
|
Warranty:
|
Life-time Warranty
|
|
Wavelength (nm):
|
850
|
