Description

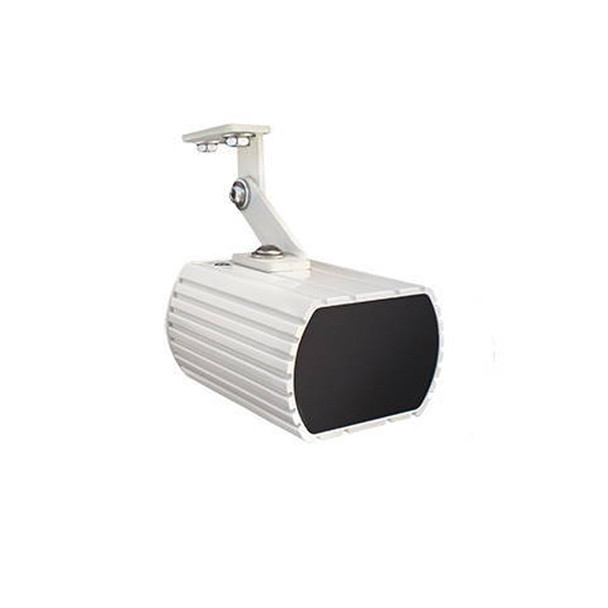

Axton AT-3M-S.3MS1860 60-degree Infrared Illuminator
The NANO AT-3M-S is an IR illuminator with an ultra light weight compact design along with rugged construction that is IP67 outdoor rated. Its compact frame is non-obtrusive and blends well with the surroundings. Easy to install and has a automatic day/night switch which easily syncs the light with the camera.
Made in USA. Covered by a Lifetime Warranty with advanced replacement.
Key Features:
- Ultra compact measures 2" x 2.25" x 1.5"
- Day/ night switch, Low Voltage
- Custom mounting bracket for easy installation
- Chose Ivory or Black Powder-Coated Finish
- Rugged Outdoor construction IP67 Rated
- Lifetime Warranty, Designed and built in the USA
| Product Group | Nano | |||
| Wavelength | 850 nm | |||
| Angles | 10° | 30° | 60° | 130° |
| AT-3MS p/n: | AT3MS1810 | AT3MS1830 | AT3MS1860 | AT3MS18130 |
| Range | 155'/47 m | 107'/33 m | 72'/22 m | 39'/12 m |
| Horizontal FOV | 28'/8m | 56'/17m | 72'/22m | 70'/21m |
| Input Voltage | (9-18) V DC | |||
| Power Consumption | 3 Watts | |||
| Operating Temperature | -58°F...+140°F / -50°C...+60°C | |||
| Dimensions | 2" x 2.25" x 1.5" / 57 x 57 x 38 mm | |||
| Weight | 5 oz./141 kg. | |||
| Mounting | Bracket Included | |||
Downloads
Datasheet
axton-at3ms1860_data_sheet-A1.pdf
Additional Information
|
Accessory Type:
|
Infrared Illuminators
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
60
|
|
Input Voltage:
|
12VDC
|
|
Max Power Consumption:
|
3 Watts
|
|
Night Vision Range (ft):
|
72
|
|
Warranty:
|
Life-time Warranty
|
|
Wavelength (nm):
|
850
|
