Description
Axton AT-3S-B.3SB1810 Nano CUBE 3B IR Illuminator, 3W, 9-18 VDC Input, 850nm, 10-degree
The Nano Cube AT-3B IR Illuminator, has an ultra compact, light-weight design. It is for indoor use only and includes a bracket for simplified installation. Chose from multiple angle/coverage options, see Illumination Range below.
Key Features:

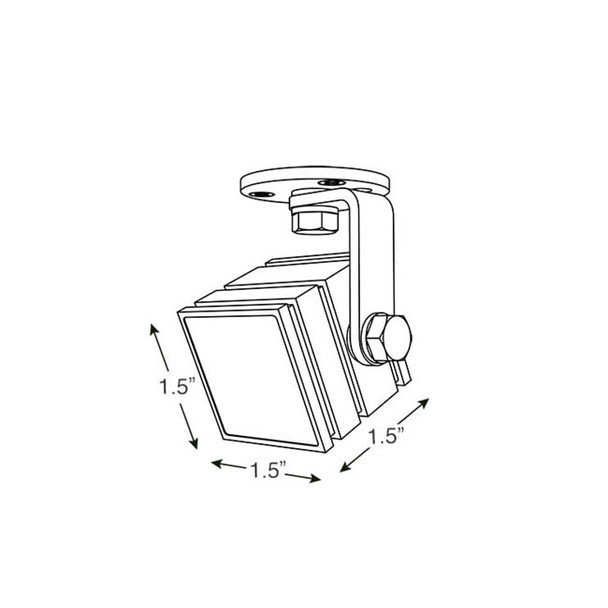

- Compact – 1.5″ x 1.5″ x 1.5″
- Wavelength – 850nm Infrared
- Energy Efficient – Advanced LED Technology
- Indoor IP64 Rating
- Single Angle/Coverage: 10-degree
- Illumination Range: up to 280 ft. (10˚)
- Power Consumption – 3 Watts
- Input Voltage – 9 to 18 VDC
- Rugged Construction – Vandal Resistant
- Designed and Manufactured in the USA
- Lifetime Warranty with Advanced Replacement
- Bracket Included
Downloads
Datasheet
Axton-AT-3S-B.3SB1810-Datasheet-A1
Additional Information
|
Accessory Type:
|
Infrared Illuminators
|
|
Angle (degree):
|
10
|
|
Color:
|
Black
|
|
Durability:
|
Weather resistant
Vandal Resistant
|
|
Environmental:
|
Indoor
|
|
Made in:
|
United States (USA)
|
|
Max Power Consumption:
|
3 Watts
|
|
Night Vision Range (ft):
|
280
|
|
Power Supply:
|
9 to 18 VDC
|
|
Protection Code:
|
IP64
|
|
Warranty:
|
Life-time Warranty
|
|
Wavelength (nm):
|
850
|
