Description

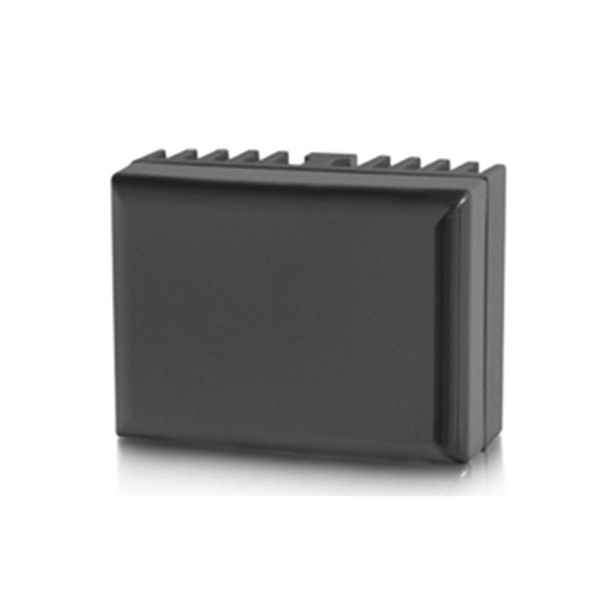

Axton AT8S2810 10-degree Infrared Illuminator (Smart Series)
The Smart AT-8S Infrared illuminatior is built around 850nm high-output SMT LEDs, delivering superior performance and longevity. Besides excellent performance vs. size ratio, the AT-8S also features an automatic day/ night switch and extended range low voltage power input.
The I/O ports allow for seamless and precise synchronization with a camera, alarm, motion detector, or any other device with an output signal. Designed specifically for outdoor use, the IP-67 rated housing is completely sealed from the elements; it is rugged and vandal-proof.
Manufactured in the USA and covered by a lifetime warranty with advanced replacement.
Key Features:
- I/O Ports for seamless camera synch
- Day/ night switch
- Low Voltage
- Designed and built in the USA
- Lifetime Warranty
| Product Group | AT-8S, Smart Series | |||
| Wavelength | 850 nm | |||
| Angles | 10° | 30° | 60° | 130° |
| AT-8S p/n | AT8S2810 | AT8S2830 | AT8S2860 | AT8S28130 |
| Range | 240'/73 m | 165'/50 m | 110'/34 m | 60'/18 m |
| Horizontal FOV | 51'/16m | 86'/26m | 100'/30m | 108'/33m |
| Input Voltage | (12-36) VDC or (12-24) VAC | |||
| Power Consumption | 8 Watts | |||
| Operating Temperature | -58°F...+140°F / -50°C...+60°C | |||
| Dimensions | 3.75″ x 2.75″ x 2″ / 95 x 70 x 51 mm | |||
| Weight | 10 oz./0.3kg. | |||
| Environmental | IP67 | |||
| Housing | Vandal resistant | |||
| Bracket | Adjustable Pan/ Tilt Bracket | |||
Downloads
Datasheet
axton-Smart_AT_8S-A1.pdf
Additional Information
|
Accessory Type:
|
Infrared Illuminators
|
|
Color:
|
Black
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
10
|
|
Input Voltage:
|
36VDC
24VAC
|
|
Max Power Consumption:
|
8 Watts
|
|
Night Vision Range (ft):
|
240
|
|
Warranty:
|
Life-time Warranty
|
|
Wavelength (nm):
|
850
|
