Axton AT3MS1830 30-degree Outdoor Infrared Illuminator

(No reviews yet) Write a Review
SKU:
AT3MS1830
Replacement:
There is no direct replacement. Ask a representative.
Discontinued
  • Axton AT3MS1830 30-degree Outdoor Infrared Illuminator
  • Axton NANO 3MA - 30° Coverage
  • Axton AT3MS1830 30-degree Outdoor Infrared Illuminator
  • Axton AT3MS1830 30-degree Outdoor Infrared Illuminator
  • Axton AT3MS1830 30-degree Outdoor Infrared Illuminator
  • life-time-warranty
$199.00
Technical Support
  • Field of View (Horizontal) : 30°Field of View
  • Environmental : Indoor
  • Input Voltage : DC 12V

Description

Axton AT3MS1830 30-degree Outdoor Infrared Illuminator

The NANO AT-3M-S is an IR illuminator with an ultra light weight compact design along with rugged construction that is IP67 outdoor rated. Its compact frame is non-obtrusive and blends well with the surroundings. Easy to install and has a automatic day/night switch which easily syncs the light with the camera.

Made in USA. Covered by a Lifetime Warranty with advanced replacement.

Key Features:

  • Ultra compact measures 2" x 2.25" x 1.5"
  • Day/ night switch, Low Voltage
  • Custom mounting bracket for easy installation
  • Chose Ivory or Black Powder-Coated Finish
  • Rugged Outdoor construction IP67 Rated
  • Lifetime Warranty, Designed and built in the USA

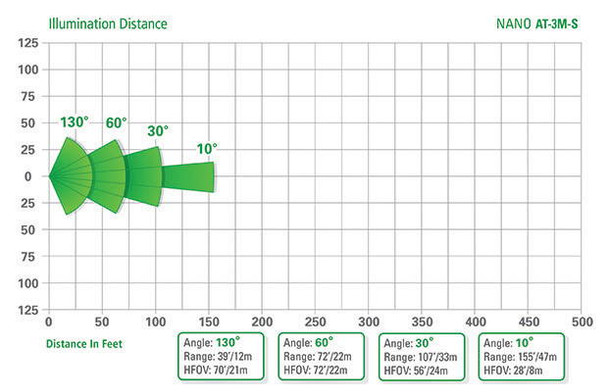

Product Group Nano
Wavelength 850 nm
Angles 10° 30° 60° 130°
AT-3MS p/n: AT3MS1810 AT3MS1830 AT3MS1860 AT3MS18130
Range 155'/47 m 107'/33 m 72'/22 m 39'/12 m
Horizontal FOV 28'/8m 56'/17m 72'/22m 70'/21m
Input Voltage (9-18) V DC
Power Consumption 3 Watts
Operating Temperature -58°F...+140°F / -50°C...+60°C
Dimensions 2" x 2.25" x 1.5" / 57 x 57 x 38 mm
Weight 5 oz./141 kg.
Mounting Bracket Included

Downloads

View AllClose

Additional Information

Accessory Type:
Infrared Illuminators
Environmental:
Indoor
Field of View (Horizontal):
30
Input Voltage:
DC 12V
Night Vision Range (ft):
107ft
Power Consumption:
3 Watts
Warranty:
Life-time Warranty
Wavelength (nm):
850
