- Axton NANO Plus 5MA - 10-degree Coverage 217'/66m Distance x 38'/12m Width, 12VDC (Day/Night Switch Only), AT5MS1810
Axton NANO Plus 5MA - 10-degree Coverage 217'/66m Distance x 38'/12m Width, 12VDC (Day/Night Switch Only), AT5MS1810
$185.00
- Field of View (Horizontal) : 10°Field of View
- Environmental : Outdoor
- Input Voltage : 18VDC
Description
Axton NANO Plus 5MA AT5MS1810

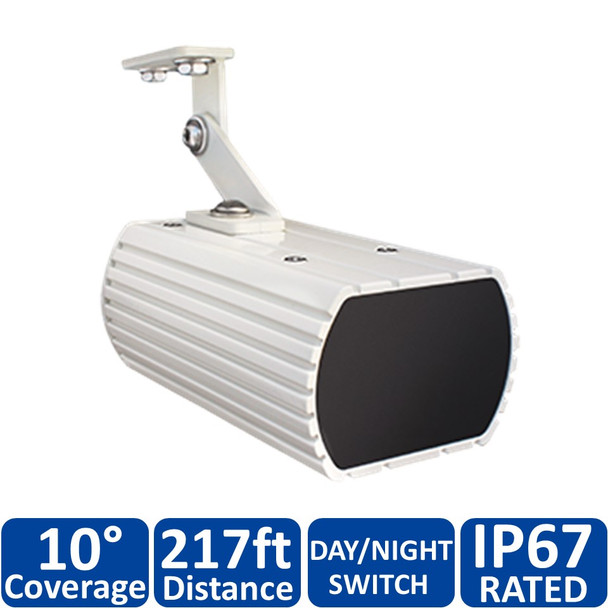

The NANO Plus AT-5M-S is an IR illuminator with an ultra light weight compact design along with rugged construction that is IP67 outdoor rated. Its compact frame is non-obtrusive and blends well with the surroundings. Easy to install and has a automatic day/night switch which easily syncs the light with the camera.
Made in USA. Covered by a Lifetime Warranty with advanced replacement.
Key Features:
- Ultra compact measures 3.5" x 2.25" x 1.5"
- Day/ night switch, Low Voltage
- Custom mounting bracket for easy installation
- Rugged Outdoor construction IP67 Rated

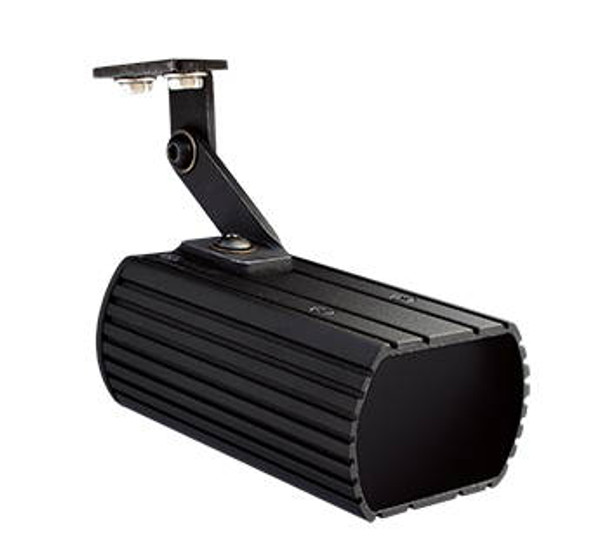

- Chose Ivory or Black Powder-Coated Finish
- Lifetime Warranty, Designed and built in the USA
Product Group | Nano | |||
Wavelength | 850 nm | |||
Angles | 10° | 30° | 60° | 130° |
AT-5MS p/n: | AT5MS1810 | AT5MS1830 | AT5MS1860 | AT5MS18130 |
Range | 217'/66 m | 150'/45 m | 100'/30 m | 54'/16 m |
Horizontal FOV | 38'/12m | 80'/24m | 100'/30m | 98'/30m |
Input Voltage | (9-18) V DC | |||
Power Consumption | 5 Watts | |||
Operating Temperature | -58°F...+140°F / -50°C...+60°C | |||
Dimensions | 3.5" x 2.25" x 1.5" / 89 x 57 x 38 mm | |||
Weight | 6 oz./170 kg. | |||
Mounting | Bracket Included |
Downloads
Datasheet
axton-NANO_AT_5MS_nw-A1.pdf
Additional Information
Accessory Type: |
Infrared Illuminators
|
Environmental: |
Outdoor
|
Field of View (Horizontal): |
10
|
Input Voltage: |
18VDC
|
Night Vision Range (ft): |
217ft
|
Power Consumption: |
5 Watts
|
Warranty: |
Life-time Warranty
|
Wavelength (nm): |
850
|
