Axton NANO Plus 5MA 30-degree Coverage 150'/45m Distance x 80'/24m Width, 12VDC (Day/Night Switch Only), AT5MS1830

(No reviews yet) Write a Review
SKU:
AT5MS1830
  • Axton NANO Plus 5MA 30-degree Coverage 150'/45m Distance x 80'/24m Width, 12VDC (Day/Night Switch Only), AT5MS1830
  • Axton NANO Plus 5MA - 30° Coverage
  • Axton NANO Plus 5MA 30-degree Coverage 150'/45m Distance x 80'/24m Width, 12VDC (Day/Night Switch Only), AT5MS1830
  • Axton NANO Plus 5MA 30-degree Coverage 150'/45m Distance x 80'/24m Width, 12VDC (Day/Night Switch Only), AT5MS1830
  • Axton NANO Plus 5MA 30-degree Coverage 150'/45m Distance x 80'/24m Width, 12VDC (Day/Night Switch Only), AT5MS1830
  • Axton NANO Plus 5MA 30-degree Coverage 150'/45m Distance x 80'/24m Width, 12VDC (Day/Night Switch Only), AT5MS1830
  • life-time-warranty
$185.00
Technical Support
  • Field of View (Horizontal) : 30°Field of View
  • Environmental : Indoor and Outdoor
  • Input Voltage : DC 18V

Description

Axton NANO Plus 5MAAT5MS1830

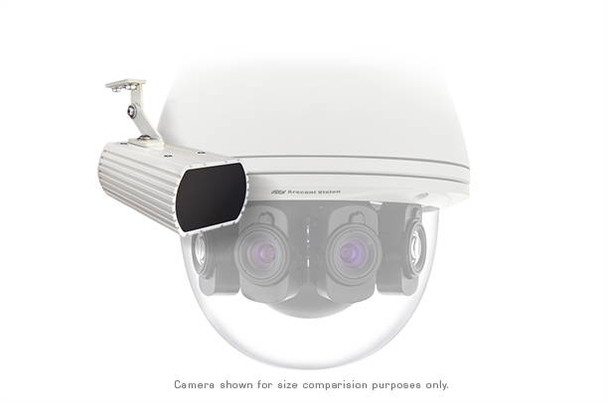

The NANO Plus AT-5M-S is an IR illuminator with an ultra light weight compact design along with rugged construction that is IP67 outdoor rated. Its compact frame is non-obtrusive and blends well with the surroundings. Easy to install and has a automatic day/night switch which easily syncs the light with the camera.

Made in USA. Covered by a Lifetime Warranty with advanced replacement.

Key Features:

  • Ultra compact measures 3.5" x 2.25" x 1.5"
  • Day/ night switch, Low Voltage
  • Custom mounting bracket for easy installation
  • Rugged Outdoor construction IP67 Rated
  • Chose Ivory or Black Powder-Coated Finish
  • Lifetime Warranty, Designed and built in the USA
Product Group Nano
Wavelength 850 nm
Angles 10° 30° 60° 130°
AT-5MS p/n: AT5MS1810 AT5MS1830 AT5MS1860 AT5MS18130
Range 217'/66 m 150'/45 m 100'/30 m 54'/16 m
Horizontal FOV 38'/12m 80'/24m 100'/30m 98'/30m
Input Voltage (9-18) V DC
Power Consumption 5 Watts
Operating Temperature -58°F...+140°F / -50°C...+60°C
Dimensions 3.5" x 2.25" x 1.5" / 89 x 57 x 38 mm
Weight 6 oz./170 kg.
Mounting Bracket Included

Downloads

View AllClose

Additional Information

Accessory Type:
Infrared Illuminators
Environmental:
Indoor and Outdoor
Field of View (Horizontal):
30
Input Voltage:
DC 18V
Night Vision Range (ft):
150ft
Power Consumption:
5 Watts
Warranty:
Life-time Warranty
Wavelength (nm):
850
