Axton Smart Series IR - 45-degree Coverage, AT8S2845

Brand: Axton
Part Number: AT8S2845
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Discontinued

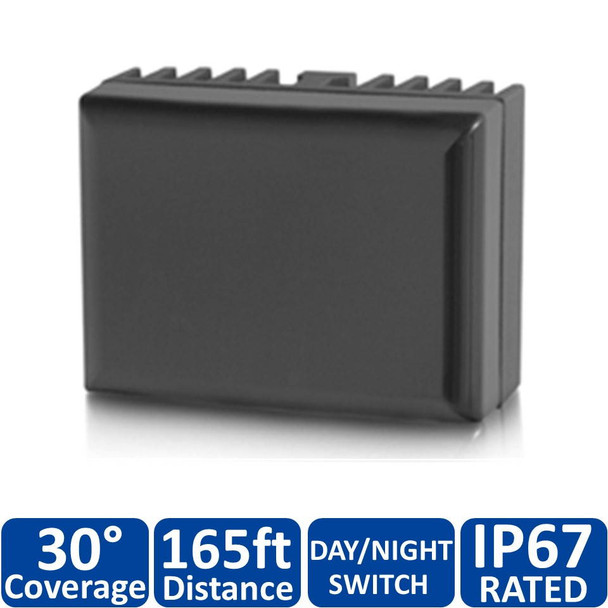

  • Axton Smart Series IR - 30°
  • Axton Smart Series IR - 45-degree Coverage, AT8S2845 - 3
  • Axton Smart Series IR - 45-degree Coverage, AT8S2845 - 4
  • life-time-warranty
  • Axton AT8S2845
Free shipping over $300 Free Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty
  • Color : Black
  • Environmental : Outdoor
  • Input Voltage : 36VDC 24VAC

Related Products

Description

Axton Smart Series IR AT8S2845

The Smart AT-8S Infrared illuminatior is built around 850nm high-output SMT LEDs, delivering superior performance and longevity. Besides excellent performance vs. size ratio, the AT-8S also features an automatic day/ night switch and extended range low voltage power input.

The I/O ports allow for seamless and precise synchronization with a camera, alarm, motion detector, or any other device with an output signal. Designed specifically for outdoor use, the IP-67 rated housing is completely sealed from the elements; it is rugged and vandal-proof. Manufactured in the USA and covered by a lifetime warranty with advanced replacement.

Key Features:

  • I/O Ports for seamless camera synch
  • Day/ night switch
  • Low Voltage
  • Designed and built in the USA
  • Lifetime Warranty
Product Group AT-8S, Smart Series
Wavelength 850 nm
Angles 10° 45° 60° 130°
AT-8S p/n AT8S2810 AT8S2845 AT8S2860 AT8S28130
Range 240'/73 m 110'/34 m 60'/18 m
Horizontal FOV 51'/16m 100'/30m 108'/33m
Input Voltage (12-36) VDC or (12-24) VAC
Power Consumption 8 Watts
Operating Temperature -58°F...+140°F / -50°C...+60°C
Dimensions 3.75″ x 2.75″ x 2″ / 95 x 70 x 51 mm
Weight 10 oz./0.3kg.
Environmental IP67
Housing Vandal resistant
Bracket Adjustable Pan/ Tilt Bracket

Downloads

Additional Information

Accessory Type:
Infrared Illuminators
Color:
Black
Environmental:
Outdoor
Input Voltage:
36VDC 24VAC
Max Power Consumption:
8 Watts
Night Vision Range (ft):
164
Warranty:
Life-time Warranty
Wavelength (nm):
850
