Axton Smart Series IR - 30-degree Coverage 320' Distance x 165' Width, AT32S2830

Brand: Axton
Part Number: AT32S2830
Write a Review
  • Axton Smart Series IR - 30-degree Coverage 320' Distance x 165' Width, AT32S2830
  • Axton Smart Series IR - 30° Coverage
  • Axton Smart Series IR - 30-degree Coverage 320' Distance x 165' Width, AT32S2830
  • Axton Smart Series IR - 30-degree Coverage 320' Distance x 165' Width, AT32S2830
  • life-time-warranty
$571.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty
  • Field of View (Horizontal) : 30°Field of View
  • Color : Black
  • Environmental : Outdoor
  • Input Voltage : 24VAC 36VDC

Description

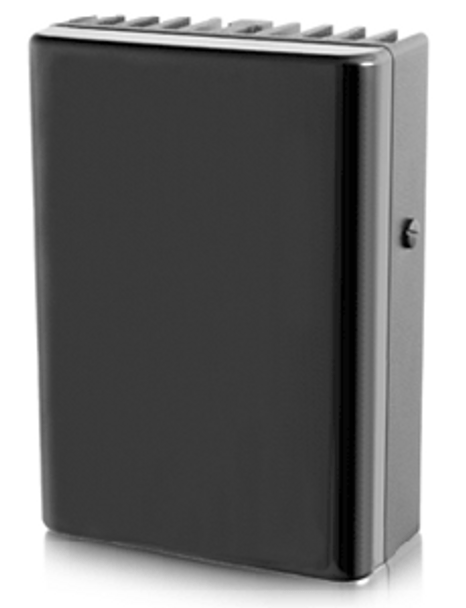

Axton Smart Series IR AT32S2830

The Smart AT-32S Infrared illuminator is built around 850nm high-output SMT LEDs, delivering superior performance and longevity. The AT-32S also features an automatic day/ night switch, I/O Ports, and extended range low Voltage power input.

The I/O ports allow for seamless and precise synchronization with a camera, alarm, motion detector, or any other device with an output signal. Designed specifically for outdoor use, the IP-67 rated housing is completely sealed from the elements; it is rugged and vandal-proof. Manufactured in the USA and covered by a lifetime warranty with advanced replacement.

Key Features:

  • I/O Ports for seamless camera synch
  • Day/ night switch
  • Low Voltage
  • Designed and built in the USA
  • Lifetime Warranty
Product Group AT32S, Smart Series
Wavelength 850 nm
Angles 10˚ 30˚ 60˚ 130˚
Smart 32S p/n AT32S2810 AT32S2830 AT32S2860 AT32S28130
Range 475'/144m 320'/97m 210'/64m 120'/36m
Horizontal FOV 100'/30m 165'/50m 190'/58m 215'/65m
Input Voltage (12-36) VDC or (12-24) VAC
Power Consumption 32 Watts
Operating Temperature -58°F...+140°F/-50°C...+60°C
Dimensions 5″ x 7″ x 2.5″ / 127 x 178 x 64 mm
Weight 3 lb/1.4 kg
Environmental IP67
Housing Vandal resistant
Bracket Adjustable Pan/ Tilt Bracket

Downloads

Additional Information

Accessory Type:
Infrared Illuminators
Color:
Black
Environmental:
Outdoor
Field of View (Horizontal):
30
Input Voltage:
24VAC 36VDC
Max Power Consumption:
32 Watts
Night Vision Range (ft):
320
Warranty:
Life-time Warranty
Wavelength (nm):
850
