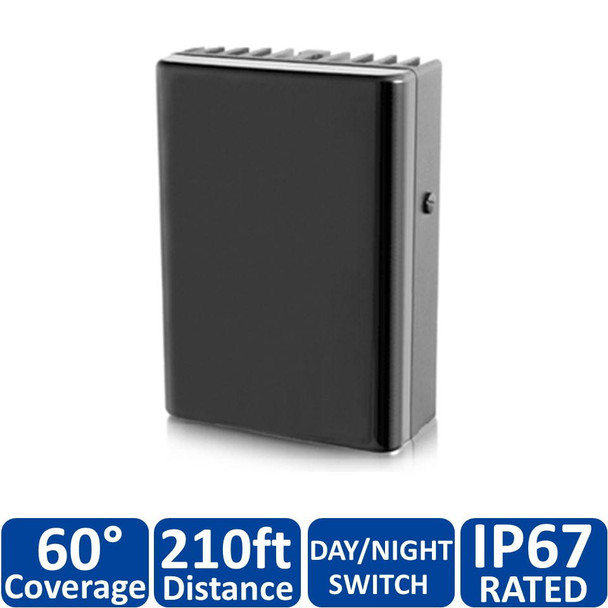

Axton Smart Series IR - 60-degree Coverage 210' Distance x 190' Width, AT32S2860
- Field of View (Horizontal) : 60°Field of View
- Color : Black
- Environmental : Outdoor
- Input Voltage : 36VDC 24VAC
Description

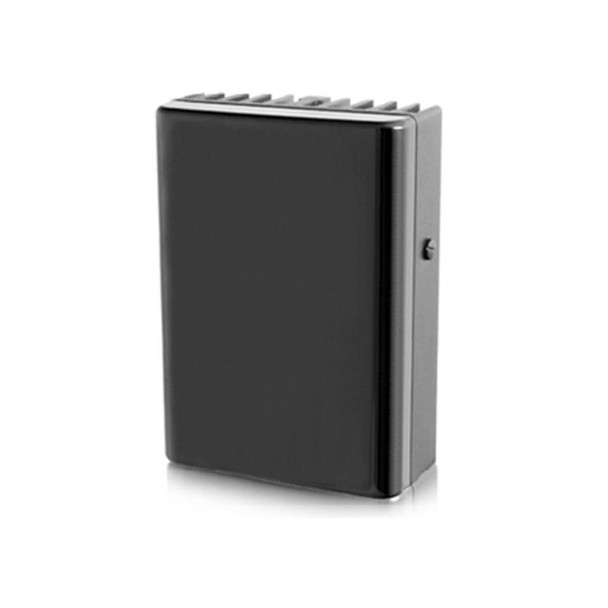

Axton Smart Series IR AT32S2860
The Smart AT-32S Infrared illuminator is built around 850nm high-output SMT LEDs, delivering superior performance and longevity. The AT-32S also features an automatic day/ night switch, I/O Ports, and extended range low Voltage power input.
The I/O ports allow for seamless and precise synchronization with a camera, alarm, motion detector, or any other device with an output signal. Designed specifically for outdoor use, the IP-67 rated housing is completely sealed from the elements; it is rugged and vandal-proof.
Manufactured in the USA and covered by a lifetime warranty with advanced replacement.
Key Features:
- I/O Ports for seamless camera synch
- Day/ night switch
- Low Voltage
- Designed and built in the USA
- Lifetime Warranty
Product Group | AT32S, Smart Series | |||
Wavelength | 850 nm | |||
Angles | 10˚ | 30˚ | 60˚ | 130˚ |
Smart 32S p/n | AT32S2810 | AT32S2830 | AT32S2860 | AT32S28130 |
Range | 475'/144m | 320'/97m | 210'/64m | 120'/36m |
Horizontal FOV | 100'/30m | 165'/50m | 190'/58m | 215'/65m |
Input Voltage | (12-36) VDC or (12-24) VAC | |||
Power Consumption | 32 Watts | |||
Operating Temperature | -58°F...+140°F/-50°C...+60°C | |||
Dimensions | 5″ x 7″ x 2.5″ / 127 x 178 x 64 mm | |||
Weight | 3 lb/1.4 kg | |||
Environmental | IP67 | |||
Housing | Vandal resistant | |||
Bracket | Adjustable Pan/ Tilt Bracket |
Downloads
Additional Information
Accessory Type: |
Infrared Illuminators
|
Color: |
Black
|
Environmental: |
Outdoor
|
Field of View (Horizontal): |
60
|
Input Voltage: |
36VDC
24VAC
|
Night Vision Range (ft): |
210ft
|
Power Consumption: |
32 Watts
|
Warranty: |
Life-time Warranty
|
Wavelength (nm): |
850
|
Related Products

Axton AT-3M-S.3MS1860 60-degree Infrared Illuminator
Brand: Axton
- Field of View (Horizontal) : 60°Field of View
- Environmental : Indoor
- Input Voltage : 12VDC

Axton NANO Plus 5MA - 60-degree Coverage 100'/30m Distance x 100'/30m Width 12VDC (Day/Night Switch Only), AT5MS1860
Brand: Axton
- Field of View (Horizontal) : 60°Field of View
- Environmental : Outdoor
- Input Voltage : 18VDC

Axton NANO Plus 5MA - 130-degree Coverage 54'/16m Distance x 98'/29m Width 12VDC (Day/Night Switch Only), AT5MS18130
Brand: Axton
- Field of View (Horizontal) : 130°Field of View
- Environmental : Outdoor
- Input Voltage : 18VDC

Axton AT3MS1810 10-degree Infrared Illuminator
Brand: Axton
- Field of View (Horizontal) : 10°Field of View
- Environmental : Indoor
- Input Voltage : 12VDC

Axton AT3MS18130 130-degree Infrared Illuminator
Brand: Axton
- Field of View (Horizontal) : 130°Field of View
- Environmental : Indoor
- Input Voltage : 12VDC
Customers Also Viewed

Axton NANO Plus 5MA - 60-degree Coverage 100'/30m Distance x 100'/30m Width 12VDC (Day/Night Switch Only), AT5MS1860
Brand: Axton
- Field of View (Horizontal) : 60°Field of View
- Environmental : Outdoor
- Input Voltage : 18VDC

AXTON AT8023 Outdoor Single Output Power Supply - 75W, AC or DC
Brand: Axton
- Color : Black
- Environmental : Outdoor
- Number of Supported Cameras : 1

Axton AT-8S2830 Smart Series IR, 30-degree Coverage 165' Distance x 86' Width
Brand: Axton
- Field of View (Horizontal) : 30°Field of View
- Color : Black
- Environmental : Outdoor
- Input Voltage : 24VAC 36VDC

AXTON AT-56S.56S286030 56W Smart Series IR Illuminator, 60 x 30, 850nm
Brand: Axton
- Field of View (Horizontal) : 30°Field of View
- Color : Black
- Environmental : Outdoor
- Input Voltage : 36VDC 24VDC 24VAC

Axton NANO Plus 5MA - 10-degree Coverage 217'/66m Distance x 38'/12m Width, 12VDC (Day/Night Switch Only), AT5MS1810
Brand: Axton
- Field of View (Horizontal) : 10°Field of View
- Environmental : Outdoor
- Input Voltage : 18VDC

Axton AT-56S.56S2810 56W Smart Series IR Illuminator, 10-degree, 850nm
Brand: Axton
- Field of View (Horizontal) : 10°Field of View
- Color : Black
- Environmental : Outdoor
- Input Voltage : 36VDC 24VDC 24VAC

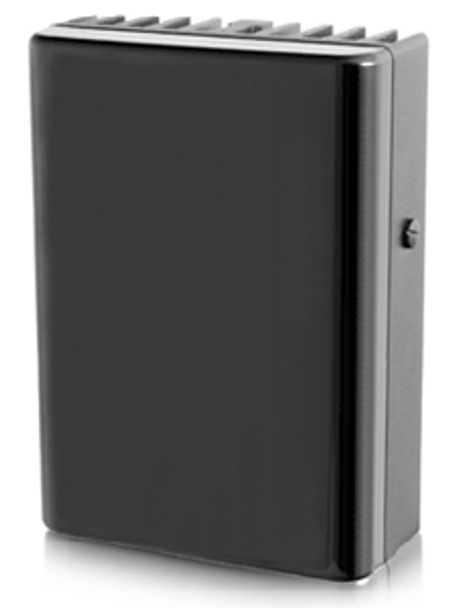

Axton AT32S2810 Smart Series IR Illuminator - 10-degree Coverage
