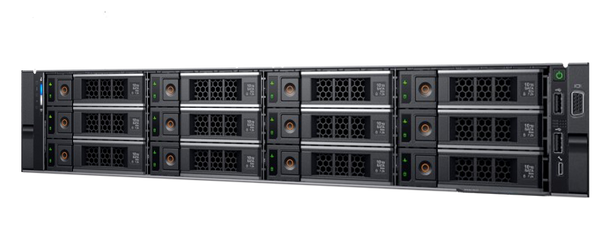

Digital Watchdog DW-BJRR2Y368TS Blackjack Rack 2U 26 Bay Server, Windows Server 2019 OS, 368TB HDD
This dual processor Blackjack® Rack™ server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The server is NDAA/TAA compliant, UL listed and includes Windows 10® IoT, Windows Server® 2019, or Linux® Ubuntu® OS on a separate mirrored 240GB SSD. The 2U rack-mountable hardware features dual Intel® Xeon® processors, 32GB memory, up to four (4) 1GB and 10GB network cards and a dual power supply. The Blackjack Rack server comes preloaded with DW Spectrum® IPVMS and eight recording licenses, up to 416TB of raw internal storage with RAID5 and RAID6 options and removable hotswappable drives. The server comes complete with a 5-year, on-site, Next Business Day, Keep Your Hard Drive warranty to ensure peace of mind.
Key Features:
- 5 year warranty, next business day on-site hardware service*, keep your hard drive - *after remote diagnosis
- Supports all ONVIF conformant IP cameras
- Storage options 304-416TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Hot Swappable HDDs
- OS RAID 1, Data RAID5, 6 options
- Redundant power supply
- 2x 1GB Base-T Etherner Ports, 2x 10GB SFP+ Fiber
- Windows 10® IoT, Ubuntu® Linux®, Windows Server 2019® OS options on separate SSD
- Dedicated RAID controller
- Hosting DW Spectrum® for setup, configuration, monitoring and recording
- One-time recording license charge, fully transferable between cameras and encoders
- Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004).
- No annual maintenance fees
- Dual stream recording
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL Listed
- NDAA/TAA compliant
Max throughput and IP camera support
This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.
Next business day onsite hardware repair after remote diagnosis
If an issue occurs with your product that cannot be resolved by phone, DW will dispatch a certified technician to attempt repair of your machine at your place of business, usually the next business day.
Keep your drive after replacement to ensure data security
Our Keep Your Drive Warranty delivers users replacement hard drives, without the need to return the defective drives. Users can keep their drives and protect their data and their customer’s privacy.
DW Spectrum® IPVMS
DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
Dual network cards
Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.
Dual power supply
Redundancy for reliability.
Hot-swappable HDDs
When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system’s drives healthy and operating.
Downloads
Additional Information
|
Alternative SKUs:
|
DWBJRR2YxxT
|
|
Capacity for each disk:
|
up to 16TB
|
|
Certifications:
|
UL Listed
CE
FCC
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
TAA (Trade Agreements Act)
NDAA Compliant
|
|
Dimensions:
|
447.04 x 810.26 x 86.61 mm (17.6 x 31.9 x 3.41 in)
|
|
Disk Form Factor:
|
2.5"
|
|
Environmental:
|
Indoor
|
|
Fiber Ports:
|
2x 10 Gbps SFP+ Ports
|
|
Hard Drive Ports:
|
26 SAS Ports
|
|
Included Licenses:
|
8 DW Spectrum IPVMS Recording Licenses
|
|
Max. Incoming Bandwidth:
|
600Mbps
|
|
Max. Storage Capacity:
|
416 TB
|
|
Mobile Apps:
|
iOS
Android
|
|
Mounting:
|
Rack Mount
|
|
Network Interface:
|
2x RJ-45 1000 Mbps Port
|
|
Outgoing Bandwidth:
|
600 Mbps
|
|
Power Supply:
|
1100W
|
|
Pre-Installed Storage:
|
368 TB
|
|
Processor (CPU):
|
Dual Intel Xeon Silver processor
|
|
Product Series:
|
Digital Watchdog Blackjack Rack Server Series
Digital Watchdog DWBJRR2YxxT Series
|
|
RAID:
|
RAID 1
RAID 5
RAID 6
|
|
RAM:
|
32GB
|
|
Rack Unit (U):
|
2U
|
|
Recorder Technology:
|
Video Server
|
|
SSD Capacity:
|
240GB
|
|
Special Recorder Features:
|
Keep Your Hard Drive Warranty
Hotswap HDD
Next Business Day Onsite Support
Dual Power Redundancy
DW Spectrum IPVMS
|
|
Video Output:
|
3x Mini DisplayPort
|
|
Warranty:
|
5-year Manufacturer Warranty
|
