Description

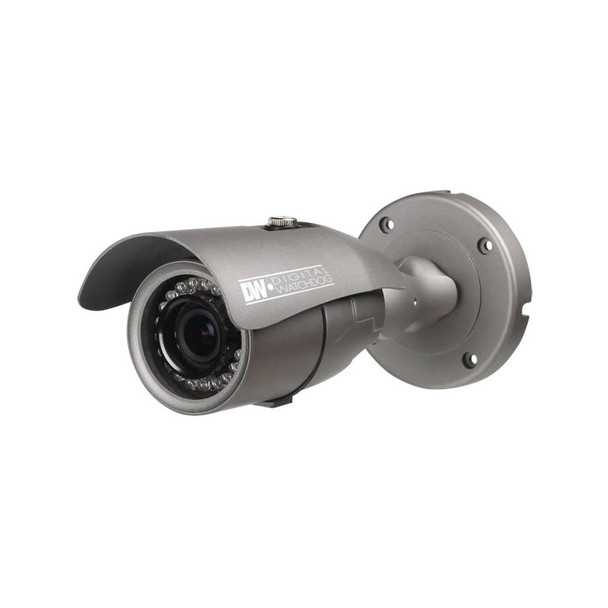

Digital Watchdog DWC-B6263TIR 2.1MP IR Outdoor Bullet HD CCTV Security Camera
Star-Light Universal HD over COAX® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. Star-Light Universal HD over Coax® cameras are engineered to work with our VMAX A1Universal HD over Coax® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
Key Features:
- Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/2.7" Image Sensor at Real-time 30fps
- 2.8~12mm Varifocal P-Iris Lens
- Digital Wide Dynamic Range (D-WDR)
- OSD Control Via Coaxial (UTC)
- 100' Smart IR™ with Intelligent Camera Sync.
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- IP66 Certified Weather and Tamper Resistant
- 5 Year Warranty
Optional Accessories:
- DWC-BLJUNC Junction box for bullet cameras
- DWC-PMB-BU Pole mount bracket for bullet cameras
Downloads
User Manual
Digital-Watchdog-DWC-B6263TIR-User-Manual-A1
Quick Start Guide
Digital-Watchdog-DWC-B6263TIR-Quick-Start-Guide-A1
Specifications
IMAGE | |
Image sensor | 2.1MP/1080p 1/2.7” CMOS |
Active pixels | 1944 (H) x 1092 (V) |
Scanning system | Progressive scan |
Frequency | 60Hz / 50Hz |
Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support |
Synchronization | Internal |
Resolution | 1920 x 1080 (1080p) |
Minimum scene illumination | 0. 2 lux (color) |
0 lux (B&W) | |
S/N ratio | 55dB |
Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H |
LENS | |
Focal length | 2.8 ~ 12mm |
Lens type | Varifocal p-iris lens |
Field of view (FoV) | 95.5 - 30.8° |
IR distance | 100ft range |
OPERATIONAL | |
Shutter mode | Auto, manual |
Shutter speed | 1/30-1/30,000 |
Backlight | On, off |
Star-Light (sense-up) | Off, x2 – x30 |
Dynamic range compressor (DRC) | Off, on, auto |
Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
White balance | Auto / push / ATW / manual |
Day / night | Auto, day (color), night (B/W) |
Mirror / flip | Yes |
Auto gain control | 0~15 |
Motion detection | Yes |
Privacy zones | 4 programmable privacy zones |
Sharpness | On, Off |
Gamma | 0.45 ~ 0.75 |
De-fog | On, off |
ENVIRONMENTAL | |
Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
Operating humidity | 10–90% RH (non–condensing) |
IP rating | IP66 certified weather and tamper resistant |
Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
Power requirement | DC12V |
Power consumption | DC12V(LED OFF): 1.86W |
DC12V(LED ON) : 3.4W | |
MECHANICAL | |
Material | Aluminum bullet housing |
Dimensions | 8.84" x 3.81" (224.5 x 96.7 mm) |
Weight | 1.65 lbs (0.75kg) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Bullet
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Product Series:
|
Digital Watchdog Universal HD over COAX Series
Digital Watchdog Star-Light Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2.1MP
|
|
Sensor Size:
|
1/2.7"
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
