Description

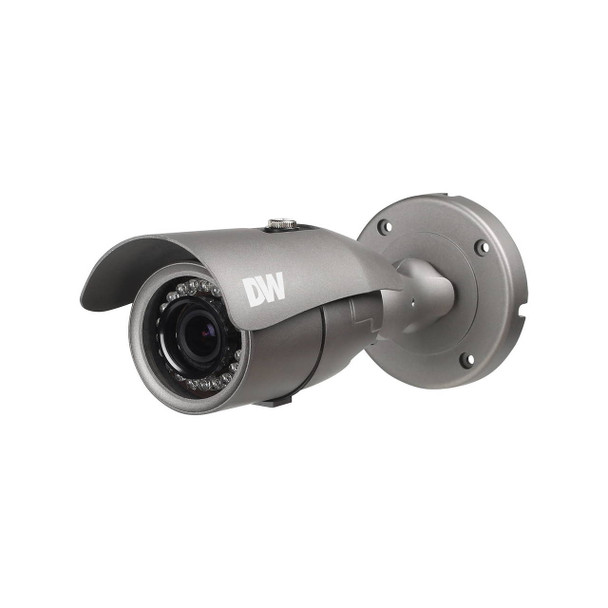

Digital Watchdog DWC-B6263WTIR 2.1MP IR Outdoor Bullet HD CCTV Security Camera
Star-Light Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. The vandal weather resistant bullet cameras are IP66 rated. Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
Key Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- 2.8~12mm Varifocal P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- 100' Smart IR with Intelligent Camera Sync.
- Smart DNR 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- RS-485 Built-in
- IP66 Certified Weather and Tamper Resistant
- 5 Year Warranty
Downloads
User Manual
Digital-Watchdog-DWC-B6263WTIR-User-Manual-A1
Quick Start Guide
Digital-Watchdog-DWC-B6263WTIR-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Bullet
|
|
Compliance:
|
NDAA Compliant
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
|
|
Lens Size:
|
2.8~12mm
|
|
Lens Type:
|
Varifocal (Manual Zoom) Lens
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Product Series:
|
Digital Watchdog Star-Light Series
Digital Watchdog Universal HD over COAX Series
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2.1MP
|
|
Sensor Size:
|
1/3"
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
5-year Manufacturer Warranty
|
